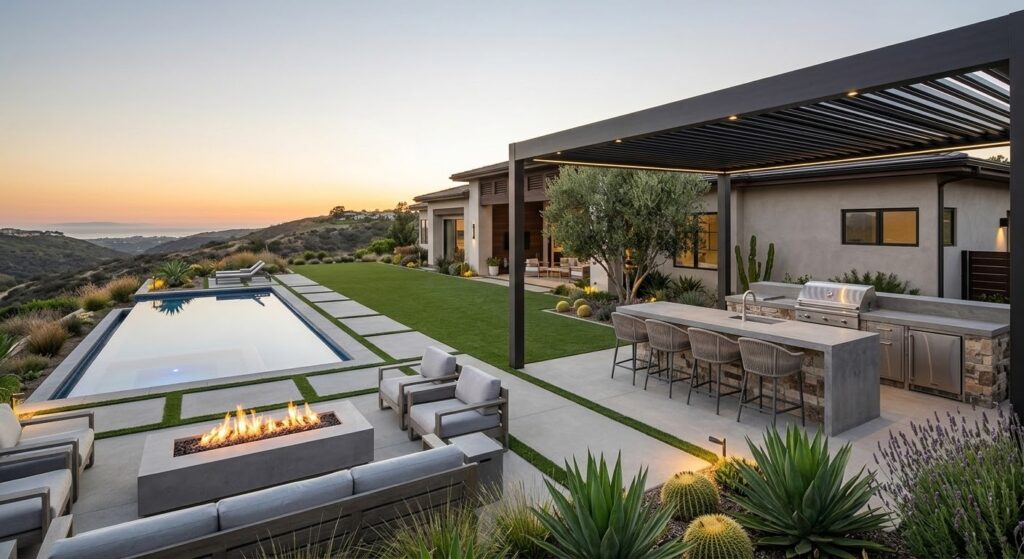

Outdoor Kitchen Engineering and Structural Shade in San Diego
Related guides: Outdoor Kitchen Countertops • Outdoor Kitchen Cost Guide • Pergola vs Patio Cover Comparison
Building a high-end outdoor kitchen under a structural shade system is not a basic landscaping project. It is commercial-grade construction happening in your backyard. The kitchen requires gas infrastructure, electrical circuits, plumbing, and fire-safe island construction. The shade structure requires engineered footings designed to survive San Diego’s Santa Ana wind events. And the two must be coordinated as one system because the shade structure’s post locations, footing depths, and clearances directly affect the kitchen layout beneath it.
This guide covers the engineering realities that separate a kitchen and shade system that performs for decades from one that creates fire hazards, code violations, and structural failures. For countertop material selection (porcelain, granite, stainless, concrete), see our Outdoor Kitchen Countertops Guide. For a full cost breakdown, see our Outdoor Kitchen Cost Guide.
Educational only (not legal advice). Building codes and fire standards vary by municipality in San Diego County. Always consult with a licensed C-27, D-06, and D-12 contractor and your local building department.
- Appliance Safety: High-BTU grills in combustible framing require insulated stainless steel heat jackets. Propane islands need fuel-specific ventilation panels.
- Structural Footings: Pavilions and louvered pergolas must be anchored to deep, steel-reinforced concrete piers designed for San Diego’s wind loads.
- Utility Backbone: Dedicated 20-amp GFCI circuits, properly sized gas lines, and sewer-tied plumbing all require code-compliant 18-inch deep trenching.
- Permits: Gas, electrical, plumbing, and shade structures each require their own permits and inspections. Skipping any one of them creates a liability.
- Coordination: Shade structure footings and kitchen island footprint must be designed together. Building one without planning for the other causes expensive conflicts.
Get a Free Kitchen + Shade Consultation |
Outdoor Kitchen Safety: Heat Jackets and Ventilation
The most dangerous mistake a contractor makes is treating an outdoor grill like an indoor oven. Outdoor appliances generate massive, concentrated heat that interacts differently with surrounding materials than an enclosed kitchen range does.
Insulated heat jackets. If the kitchen island is constructed using any combustible materials (treated wood framing is common in budget builds), California fire codes mandate the use of a stainless steel heat jacket. This insulated barrier drops into the framing before the grill is installed, preventing radiant heat from igniting the structure. Even on non-combustible CMU (concrete block) islands, manufacturer clearances must be followed exactly. A 42-inch premium grill generating 80,000+ BTUs radiates enough heat to damage stone veneer, melt adhesives, and warp countertop overhangs if clearances are not maintained.
Island ventilation. Trapped gas is lethal. Propane is heavier than air and pools at the bottom of an unventilated island, creating an explosion risk. Natural gas rises and can accumulate under countertop overhangs. A properly engineered kitchen includes cross-flow ventilation panels placed specifically according to the fuel type. Propane islands need low ventilation openings. Natural gas islands need upper ventilation. Many manufacturers require specific ventilation panel sizes and placement, which must be incorporated into the island design during the planning phase.
Under-cover grease management. When a grill operates under a shade structure, grease and soot do not dissipate into the open air. They accumulate on the underside of the roof, the countertop, and the island walls. Depending on the height of the roof and the BTU output of the grill, a commercial-grade outdoor vent hood may be required. At minimum, the countertop surface near the grill should be smooth (not textured) for easy cleaning, and seams should be kept away from the highest grease zones. For countertop material selection in grease-heavy environments, see our Outdoor Kitchen Countertops Guide.
Utility Infrastructure: Electrical, Gas, and Plumbing
A luxury outdoor kitchen requires permanent, code-compliant infrastructure. Every utility line must be trenched, permitted, and inspected independently. This is where the “trench once” principle applies: if you are running gas to the kitchen, that is the time to also run electrical conduit, low-voltage lighting wire, and plumbing. Trenching the yard twice because someone forgot the electrical conduit is an expensive mistake.
Dedicated 20-amp GFCI circuits. Outdoor refrigerators, ice makers, and blenders draw significant power. We pull dedicated, GFCI-protected circuits directly from the main panel to prevent tripped breakers during entertaining. Outlet placement must be planned during the island design phase so that conduit can be run through the island framing before the stone veneer is applied.
Gas line sizing and BTU load. A high-end grill, side burner, power burner, and fire pit can collectively draw 200,000+ BTUs. If the gas line is undersized or the meter cannot support the total load (indoor + outdoor), the fire features will underperform and the system will fail inspection. We calculate the total BTU demand before designing the gas line, and we identify potential meter upgrades during the planning phase, not at the inspection. For details on gas line engineering, see our Fire Features and WUI Compliance Guide.
Plumbing and wastewater compliance. If your kitchen includes a sink, the drain must tie into your home’s sanitary sewer system, not discharge into the landscape. Draining sink greywater into planting beds violates local health codes. We engineer proper tie-ins to your home’s sewer cleanout, including trap and vent as required by the California Plumbing Code. The plumbing trench must also include a water supply line for the sink faucet, sized appropriately for the run length.
All utility trenching must be at minimum 18 inches deep for gas lines (per California Plumbing Code) and must include tracer wire and warning tape for all non-metallic underground utilities. The trench is left open for rough inspection before backfill. For how utility work fits into the overall project timeline, see our Project Timeline Guide.
Structural Shade: Pavilions and Louvered Pergolas
A shade structure over an outdoor kitchen is not decorative. It protects appliances, countertops, and electronics from UV degradation and rain, extends the usability of the cooking space to year-round, and provides comfort for the cook during San Diego’s hot afternoons. But high-end shade structures carry extreme physical weight and act like sails during Santa Ana wind events. They cannot be bolted to a standard patio slab.
Concrete pier footings. Pavilions and louvered pergola systems (StruXure, Azenco, Equinox) require structural footings that extend deep into undisturbed native soil. The footing size, depth, and rebar configuration are determined by the structural engineer based on the structure’s wind load rating, the soil conditions, and the local wind speed requirements. In San Diego, Santa Ana winds can exceed 60 mph in inland areas and canyons. The footings must be poured and cured before the surrounding patio base is compacted and pavers are installed. Retrofitting footings after the patio is built requires cutting through the finished surface.
Post base hardware. The connection between the footing and the shade structure post is a critical structural detail. We use Simpson Strong-Tie or equivalent engineered post base connectors that are set into the wet concrete during the footing pour. The hardware must match the shade structure manufacturer’s specifications exactly. Generic hardware or improvised connections are structural failures waiting to happen.
Electrical integration. Louvered systems require electrical for the motor and controls. Pavilions and pergolas are the natural location for recessed lighting, ceiling fans, or pendant lights. All wiring must be run through conduit in the posts or underground to the structure during construction, before the paver surface is installed. Adding electrical after the shade structure and patio are built means trenching through finished hardscape.
For a detailed comparison of shade structure types (pergola vs solid cover vs louvered vs pavilion), see our Shade Structure Comparison Guide. For an overview of shade options and how they integrate into the patio design, see our Patio Shade Options Guide.
Why Kitchen and Shade Must Be Designed Together
This is the design conflict that separate contractors get wrong and design-build firms get right. The shade structure and the outdoor kitchen interact in multiple ways that must be resolved during the design phase:
Post locations vs kitchen footprint. Shade structure posts require footings that occupy space beneath the patio surface. If the kitchen island is designed without accounting for post locations, a footing may conflict with the island’s footprint, the utility trench route, or the sink drain tie-in. Both elements must appear on the same drawing before either is built.
Fire clearances under the roof. If the grill is positioned beneath the shade structure, manufacturer-specified vertical clearances (typically 8 to 10 feet from the burner to the nearest overhead surface) must be maintained. If the shade structure is too low, the grill must move out from under it, which changes the kitchen layout. This decision cascades into countertop dimensions, island shape, and utility routing. Resolve it on paper, not in the field.
Utility trenching sequence. All underground utilities (gas, electrical, plumbing, low-voltage lighting) must be trenched and inspected before the paver base is compacted. The shade structure footings must be poured before the base goes down. If either element is an afterthought, the construction sequence breaks and costs escalate. The design-build model plans all of this as one system.
Outdoor Kitchen + Shade Structure Costs in San Diego (2026)
| Component | Cost Range |
|---|---|
| Basic outdoor kitchen (straight island, grill, fridge, tile countertop) | $15,000 to $25,000 |
| Mid-range kitchen (L-shape, stone veneer, granite counter, premium grill, fridge, sink) | $25,000 to $45,000 |
| Premium kitchen (U-shape, natural stone, porcelain/sintered countertop, luxury grill, pizza oven, multiple sinks) | $45,000 to $80,000+ |
| Traditional pergola (wood or aluminum, partial shade) | $8,000 to $20,000 |
| Solid patio cover (attached, full weather protection) | $15,000 to $35,000 |
| Motorized louvered system (StruXure, Azenco, Equinox) | $25,000 to $60,000+ |
| Freestanding pavilion (solid roof, independent footings) | $20,000 to $50,000+ |
| Utility backbone (gas line + electrical + plumbing trenching, permits) | $5,000 to $15,000+ |
Combined kitchen + shade: A mid-range outdoor kitchen under a louvered pergola with full utility backbone typically runs $60,000 to $120,000 as a combined scope. A premium kitchen under a pavilion with integrated lighting, heating, and A/V runs $100,000 to $200,000+. These numbers include the kitchen, the shade structure, the utility infrastructure, permitting, and the patio surface beneath and around the kitchen.
For the full project cost picture including fire features, retaining walls, and lighting, see our Outdoor Living Cost Guide and our Hardscape Ideas Guide.
Contractor Red Flags for Kitchen + Shade Projects
| Red Flag | The Engineered Standard |
|---|---|
| No heat jacket specified for a grill in combustible framing | Insulated stainless steel heat jacket installed per manufacturer specs before grill placement |
| No ventilation panels on the kitchen island | Cross-flow ventilation sized and placed according to fuel type (propane low, natural gas high) |
| Shade structure designed separately from the kitchen layout | Both elements on the same drawing with post locations, clearances, and utility routes coordinated |
| Shade structure posts bolted to the patio surface instead of independent footings | Deep steel-reinforced concrete pier footings poured before patio base is compacted |
| Gas line spliced into existing line without BTU load calculation | Full BTU load calculation across all appliances, meter capacity verified, dedicated gas line |
| Sink drain discharged into landscape instead of sewer | Proper sanitary sewer tie-in with trap and vent per California Plumbing Code |
For the full contractor verification process, see our Contractor Vetting Playbook.
The most expensive outdoor kitchen mistakes happen when the kitchen is designed by one contractor and the shade structure is designed by another. Post footings conflict with island footprints. Gas trenches cross electrical conduit paths. Fire clearances push the grill out from under the cover after the cover is already built. A design-build firm plans the kitchen, the shade, and the utility backbone as one integrated system on one drawing, under one contract.
Before signing any outdoor kitchen contract, verify the contractor holds active CSLB licenses (C-27, D-06 & D-12) and carries $2M general liability insurance. Run every contractor through our Contractor Vetting Playbook.
The INSTALL-IT-DIRECT Standard
We design and build outdoor kitchens and shade structures as one integrated system. The island layout, shade structure post locations, footing engineering, utility backbone (gas, electrical, plumbing, low-voltage), fire clearances, and countertop specifications are all coordinated on one drawing and built by one team under one contract.
Every project we build is backed by our written On-Time Completion Guarantee. We agree on a timeline before construction starts. If we miss the deadline due to delays on our end, we pay you a daily schedule credit. No other landscaping company in San Diego offers this. See our guarantee details.
We carry full workers’ compensation and $2M general liability insurance that exceeds industry standards. We are fully licensed with the California CSLB (License #947643, C-27, D-06 & D-12 classifications), and we have completed over 6,000 projects across San Diego County since 2009.
