Retaining Wall Ideas and Costs for San Diego Properties

Retaining walls are one of the most misunderstood elements in outdoor construction. Most homeowners think of them as decorative borders or simple garden beds. In reality, any wall that holds back soil is a structural element, and in San Diego’s expansive clay terrain and hillside geography, getting it wrong is not just expensive. It is dangerous.

This guide covers the retaining wall types that actually work for San Diego properties, the engineering and permit requirements that determine what you can build, and the real installed costs by project tier. Whether you need a 2-foot seat wall around a fire pit or a 12-foot terraced system to make a hillside lot usable, the information here is based on projects we have designed and built across San Diego County since 2009.

For the full engineering deep-dive on hillside projects (hydrostatic drainage, geogrid reinforcement, surcharge loads, and PE-stamped plans), read our companion Hillside Engineering & Retaining Walls Guide.

When Do You Actually Need a Retaining Wall?

Not every slope requires a wall, and not every wall requires an engineer. Understanding the difference saves you thousands of dollars and weeks of permit processing.

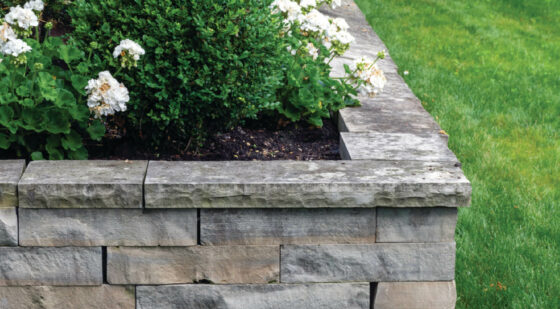

Walls under 3 feet (measured from the bottom of the footing to the top of the wall): No building permit required in San Diego County. These include seat walls, raised planters, and low terrace walls on gently graded lots. While they do not require a permit, they still need proper drainage behind the wall and a compacted base. A wall without drainage is a wall that will fail.

Walls 3 feet and over: Require a building permit and PE-stamped (Professional Engineer) structural plans in San Diego. The engineer designs the footing depth, reinforcement schedule, and drainage system based on soil conditions, slope angle, and surcharge loads (anything built above the wall: patios, driveways, structures). If the wall is in a hillside overlay zone (common in La Jolla, Point Loma, Mt. Helix, Del Mar, and parts of Poway and Rancho Santa Fe), a geotechnical report is also required.

Walls supporting a structure or driveway: Even walls under 3 feet may require a permit if they support a surcharge load. A 2-foot wall holding back soil under a patio with a pergola on it is carrying structural loads that change the engineering requirements entirely.

Grading over 50 cubic yards: Triggers a separate grading permit and MS4 stormwater compliance documentation. Most terracing projects that create usable flat areas from sloped lots exceed this threshold.

Retaining Wall Types for San Diego Properties

The material you choose depends on height, structural requirements, aesthetics, and budget. Here are the wall types we design and build, ranked by how frequently we install them in San Diego.

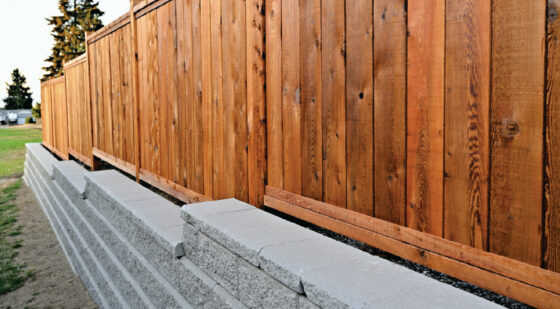

Segmental Retaining Wall (SRW) Block

SRW block is the workhorse of San Diego retaining walls. These are engineered interlocking concrete units (not to be confused with cheap landscape blocks from a home improvement store) designed specifically for structural wall applications. They interlock through a lip-and-pin or clip system that creates a gravity wall where each course steps back slightly, using the weight of the block and the retained soil to resist lateral earth pressure.

SRW walls can be built to significant heights. Walls up to 4 to 6 feet typically use gravity design alone. Walls over 6 feet require geogrid reinforcement, where layers of high-tensile polymer grid are embedded in the backfill at engineered intervals to create a reinforced soil mass that dramatically increases the wall’s load capacity.

The aesthetic range is wider than most homeowners expect. SRW blocks come in tumbled, split-face, smooth, and weathered textures in dozens of color blends. When paired with matching cap stones and integrated into a paver patio, the result looks like natural stone at a fraction of the cost and with superior structural performance.

Best for: Structural walls of any height, terracing, hillside stabilization, seat walls, raised patios, and anywhere structural performance and design flexibility are both required.

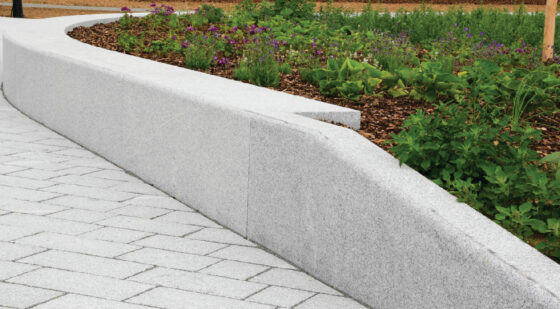

Poured Concrete (Cantilever Walls)

Poured concrete cantilever walls are the strongest retaining wall type. They use an L-shaped or T-shaped reinforced concrete footing and stem that resists overturning through the leverage of the footing rather than sheer mass. This makes them ideal for tall walls (8 feet and above) where SRW block would require an impractical amount of geogrid reinforcement zone.

The finished face can be left as smooth concrete for a modern aesthetic, veneered with natural stone or manufactured stone for a traditional look, or finished with stucco to match the home’s exterior. Many San Diego homes with Spanish or Mediterranean architecture use stucco-veneered concrete walls to create a seamless transition from the house to the hardscape.

Best for: Tall walls over 8 feet, walls supporting heavy surcharge loads (driveways, motor courts, structures above), modern and contemporary designs, and properties where maximum structural capacity is required.

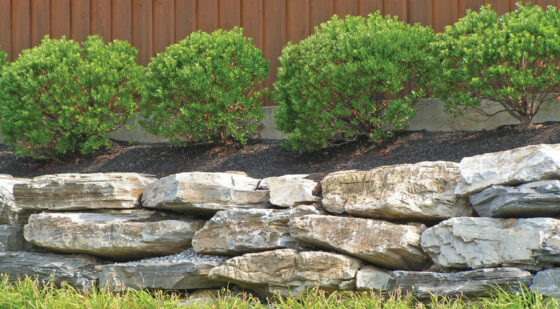

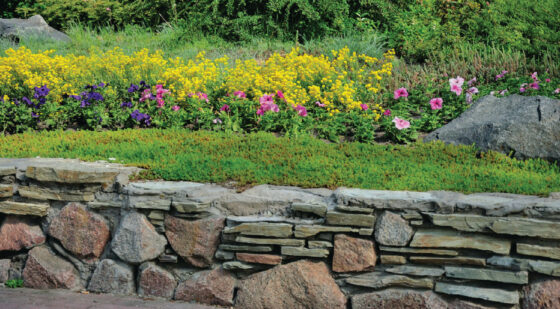

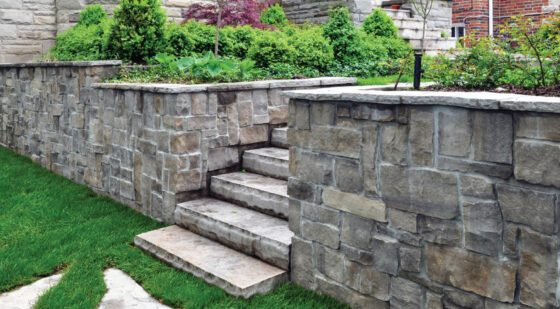

Natural Stone Walls

Natural stone retaining walls use materials like fieldstone, flagstone, sandstone, or granite stacked either dry (without mortar) or with mortar on a concrete footing. Dry-stacked stone walls are limited in height (typically 3 feet or less without engineering) but create a timeless, organic look that blends with natural landscapes.

For taller natural stone walls, the stones are set in mortar on a reinforced concrete footing, making them structurally equivalent to a concrete cantilever wall with a stone veneer. The cost premium reflects the labor intensity of fitting irregular stones into a stable, visually appealing pattern.

Best for: Low decorative walls, garden borders, estate properties where a natural aesthetic is the priority, and designs where the wall is a visual focal point rather than a pure engineering element.

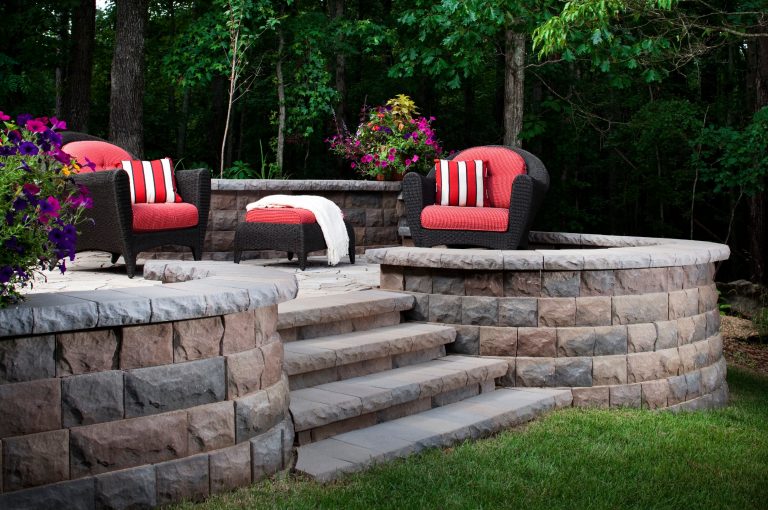

Seat Walls and Integrated Hardscape Walls

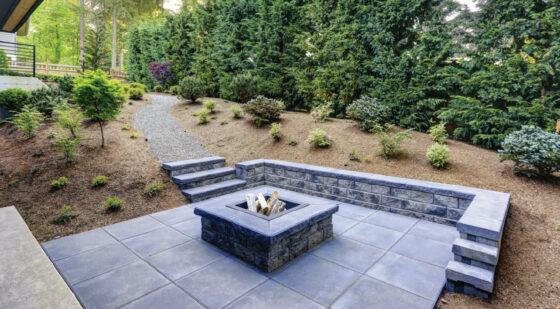

Seat walls are low retaining walls (typically 18 to 24 inches tall) designed to double as seating around fire pits, patios, outdoor kitchens, and conversation areas. They are built with the same SRW block or poured concrete as structural walls but capped with a flat, comfortable cap stone that serves as the seating surface.

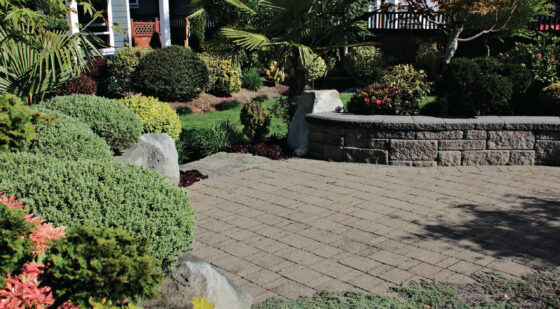

From a design perspective, seat walls are the most versatile retaining wall element. They define outdoor living zones without visual barriers, create built-in seating that eliminates the need for bulky outdoor furniture, and can be integrated with fire features, planters, and lighting. A curved seat wall around a gas fire pit with LED step lighting built into the base is one of the most requested design elements in San Diego backyard remodels.

Best for: Defining outdoor living areas, fire pit surrounds, patio edges, outdoor kitchen seating, and any project where the wall serves a dual structural and functional purpose.

What Retaining Walls Make Possible in Your Yard

Retaining walls are not a standalone project. They are the structural backbone that makes everything else in your outdoor living space work. Here is how they integrate into the projects IID designs and builds every week:

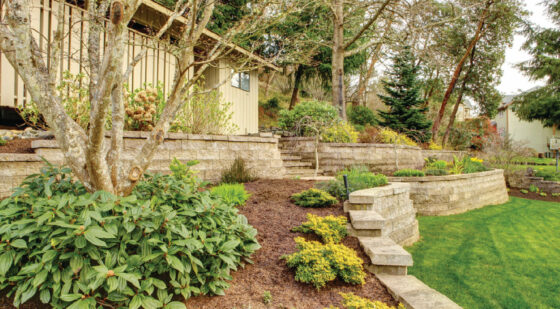

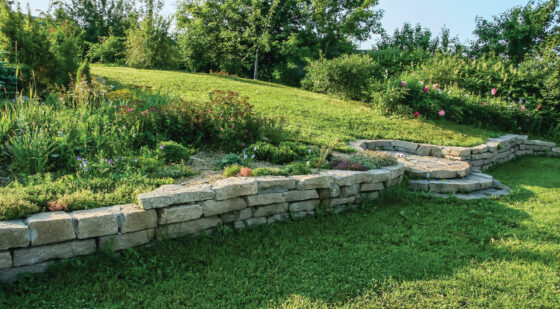

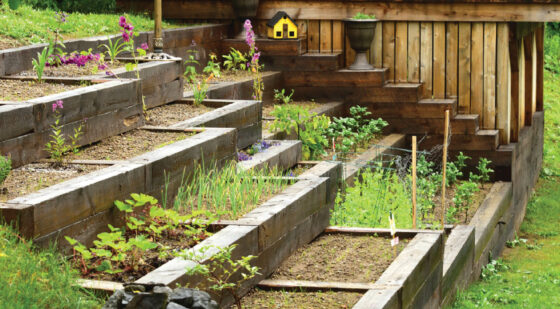

Terracing a sloped lot into usable outdoor living space. This is the most common and highest-value application. A hillside lot that is currently unusable becomes a multi-level outdoor living area with a paver patio, fire feature, shade structure, and planting beds, all made possible by a terraced retaining wall system. The walls create flat areas at each level while managing drainage and soil pressure. These projects typically range from $75,000 to $250,000+ depending on the slope severity, wall heights, and scope of the outdoor living elements. Read our Pavers on a Slope guide for a detailed look at how hillside projects work.

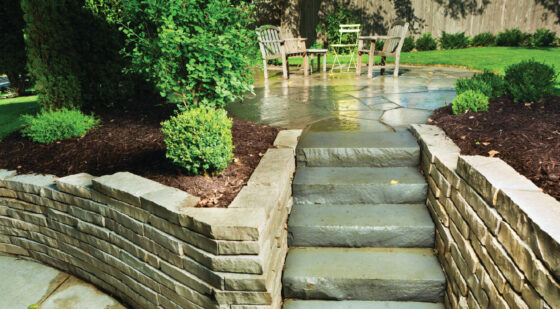

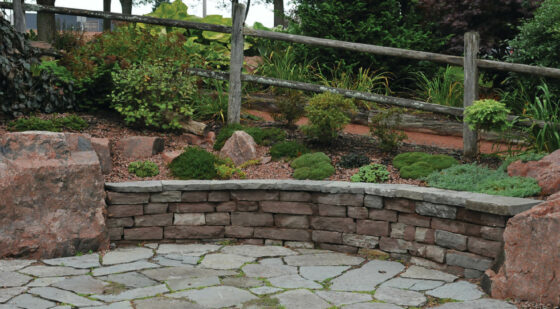

Raised patios and sunken entertainment areas. Even on flat lots, retaining walls create elevation changes that add visual depth and define spaces. A raised patio with a seat wall perimeter creates a natural stage for an outdoor kitchen. A sunken conversation area with a fire pit becomes an intimate gathering space. These design elements are what separate a $25,000 basic patio from a $75,000 outdoor living experience.

Driveway and motor court support. Front yard retaining walls hold back the grade change between your property and the street, creating a level driveway and motor court. On sloped lots, the wall supporting a driveway carries significant vehicular surcharge loads and requires PE engineering regardless of height. See our Spanish Style Driveway Design guide for front yard inspiration.

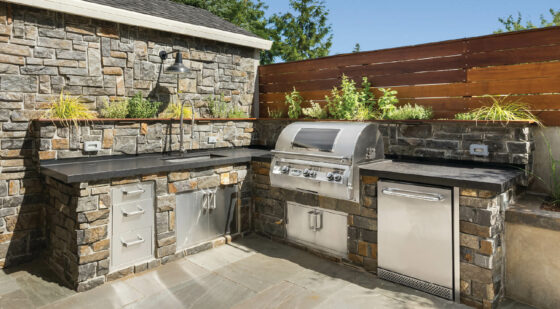

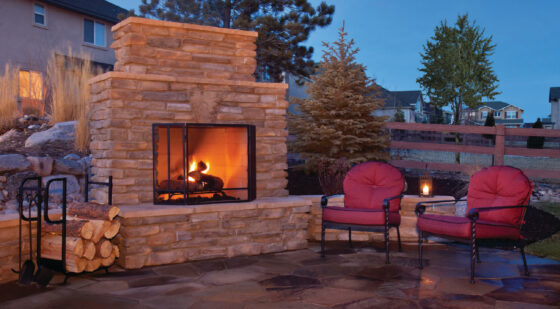

Fire feature and outdoor kitchen integration. Seat walls that wrap around a fire pit or extend from an outdoor kitchen island create built-in seating, reduce furniture costs, and unify the design. The wall, the fire feature, and the patio become one cohesive system rather than separate elements dropped into the yard. For fire feature engineering details (gas line sizing, BTU loads, clearances), read our Fire Pits and Fireplaces guide.

Erosion control and property protection. San Diego’s combination of expansive clay soil, seasonal rain events, and steep terrain makes erosion a real threat. A properly engineered retaining wall with hydrostatic drainage prevents soil movement that can undermine foundations, pool shells, and existing hardscape. This is not an aesthetic upgrade. It is property protection.

Retaining Wall Costs in San Diego (2026)

Retaining wall pricing varies dramatically based on height, material, engineering requirements, and site access. Here are installed cost ranges for San Diego projects:

Additional Costs to Plan For

What Full Retaining Wall Projects Cost by Scope

For a comprehensive look at how retaining walls fit into full outdoor living project budgets, see our San Diego Outdoor Living Cost Guide.

Why Every Retaining Wall Needs Drainage (and Most Don’t Have It)

The number one cause of retaining wall failure in San Diego is not bad block or weak concrete. It is water. When it rains, water saturates the soil behind the wall. That saturated soil is dramatically heavier than dry soil, and it exerts hydrostatic pressure against the back of the wall. Without a drainage system, this pressure builds with every storm until the wall fails.

A properly engineered retaining wall includes a perforated drain pipe (wrapped in filter fabric to prevent clogging) set in a bed of clean gravel behind the base of the wall. The gravel allows water to flow down to the pipe, which carries it to a discharge point away from the wall. Behind the gravel zone, a layer of geotextile fabric separates the drainage aggregate from the native clay soil, preventing fine particles from migrating into the gravel and clogging the system over time.

San Diego’s expansive clay soil makes this doubly critical. Clay expands when wet and contracts when dry, creating cyclical lateral pressure that a wall without drainage cannot withstand over multiple seasons. If a contractor quotes you a retaining wall without mentioning drainage, they are either planning to skip it or do not understand it. Either way, walk away.

San Diego Permit and Engineering Requirements

San Diego County has specific requirements for retaining walls based on height, location, and loading conditions:

Under 3 feet, no surcharge: No permit required. Must still meet minimum setback from property lines. Drainage is not code-required but is structurally essential on clay soil.

3 feet and over: Building permit required. PE-stamped structural plans showing footing design, reinforcement schedule, drainage system, and backfill specifications. Plan check typically takes 2 to 4 weeks.

Hillside overlay zones: Geotechnical report required in addition to structural engineering. The geotech report evaluates soil bearing capacity, slope stability, and groundwater conditions. This adds $3,000 to $8,000 and 2 to 4 weeks to the project timeline but is non-negotiable in these areas. Common hillside overlay neighborhoods include La Jolla, Point Loma, Mt. Helix, Del Mar, and parts of Rancho Santa Fe and Poway.

Walls near property lines: Most San Diego jurisdictions require a minimum setback of the wall’s height from the property line (a 6-foot wall must be at least 6 feet from the line). Walls on the property line require a shared-wall agreement with the neighboring property owner.

Grading permits: Any earthwork exceeding 50 cubic yards requires a separate grading permit with MS4 stormwater compliance documentation. Terracing projects almost always trigger this threshold.

For details on how retaining wall permits affect project timelines, see our Project Timeline Guide.

Contractor Red Flags for Retaining Wall Projects

For a comprehensive contractor evaluation framework, read our Contractor Vetting Playbook.

Frequently Asked Questions

The INSTALL-IT-DIRECT Standard

We are a design-build firm. We handle design, engineering, permitting, and construction for the complete project under one contract and one timeline. Every retaining wall we build includes PE engineering (on walls 3 feet and over), hydrostatic drainage, geotextile soil separation, and documented base compaction.
