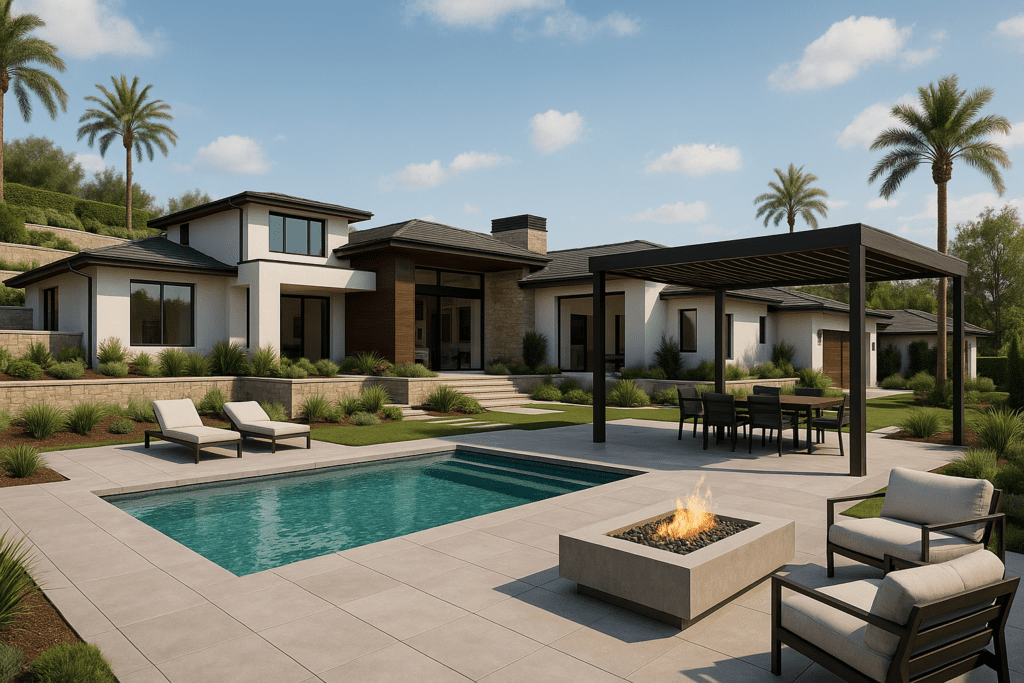

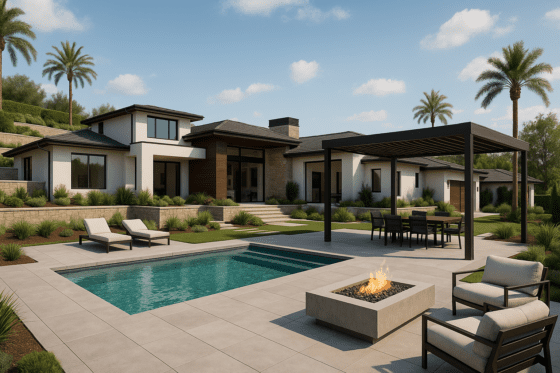

Hillside Estates & Terraces (2025) — Retaining Walls, Stairs, Drainage & Lighting
Updated August 2025 — San Diego County
Written by:
Luke W., Founder & Owner of INSTALL-IT-DIRECT
Luxury Landscape Design & Build Expert • 16+ Years in San Diego
Reviewed by:
Chris MacMillan, General Manager
ICPI Certified • CA CSLB License #947643
Last reviewed: August 2025 · About our process
6,000+ 5‑star reviews since 2009 • Fully licensed & insured in California
Designing on a hillside in Rancho Santa Fe, Fairbanks Ranch, La Jolla, or Carmel Valley? This guide shows how we create terraced estates with engineered retaining walls, porcelain or paver stairs, drainage that actually works, and dark‑sky lighting—plus real installed ranges, permit paths, and line‑item models for San Diego soils and overlays.
Get a Hillside Concept Plan & Estimate
Do‑This‑First — Jurisdiction Checklist (San Diego County)
- Confirm jurisdiction & overlays: City vs. County; Environmentally Sensitive Lands (ESL), steep hillsides, Coastal Overlay, floodplain, historic, and Very High Fire Hazard Severity Zones (VHFHSZ map). In the Coastal Overlay/ESL, discretionary permits may apply.
- Map grading & export early: County grading permit exemptions generally require <200 CY of earthwork and banks <8 ft; verify thresholds before design. See County Code §87.202 (exemptions). City projects follow separate grading procedures (Grading Permit).
- Retaining wall path: Plan on engineering + permit for walls ≥3′ (measured from top of footing) or any wall with surcharge (driveways, structures, descending slopes). City confirmation: When is a Permit Required?. County guide: PDS‑083 Retaining Walls with Sloping Backfill.
- Stormwater & discharge: Show BMPs and lawful outlets. City submittals typically include the DS‑560 Stormwater Applicability Checklist. Curb/gutter tie‑ins in the public right‑of‑way require a Right‑of‑Way (ROW) permit and often an EMRA.
- Lighting zone rules: City outdoor lighting must meet SDMC 142.0740 and Title 24. County projects follow the Light Pollution Code and PDS‑211.
- Stairs, handrails & guards: Follow 2022 CRC (R311.7 Stairways; R312 Guards).
TL;DR — Hillside Estates & Terraces (2025 San Diego)
- SRW (segmental) walls: typically $70–$140 per face sq ft installed.
- CMU + stucco/stone: typically $120–$220 per face sq ft.
- Poured‑in‑place concrete: typically $150–$260 per face sq ft.
- Stairs (structural, porcelain/paver finish): usually $750–$2,200 per step (4–7′ width; structure + finish + lighting rough‑in).
- Drainage: French drains $45–$85/LF; area drains $250–$650 ea.; channel drains $55–$95/LF; drywells/infiltration $1,800–$4,500.
- Engineering/permits/survey/geotech: common on hillsides; see adders section.
Ranges reflect 2025 San Diego labor & materials with hillside access. Surcharge (driveways/structures above walls), overlays, and export/haul drive totals.
Check My Hillside Budget →
Packages (Good / Better / Best)
| Package | What’s Included | Typical Installed |
|---|---|---|
| Good — Terraced Access | SRW walls up to ~4–6′ engineered as required, geogrid, wide drain zone, porcelain/paver stair run, basic handrail, French drains to landscape. | $45k–$110k |
| Better — Garden Terraces | SRW/CMU blend, multiple geogrid lifts, curved planters, stair flights/landings, railings, area & channel drains, low‑glare path/step lights. | $125k–$260k |
| Best — Estate Terraces & Views | Tall engineered CMU/poured walls with veneer/caps, tiered gardens, switchback stairs with porcelain treads/LEDs, guardrails, advanced drainage to private drywells, dark‑sky moonlight. | $250k–$550k+ |
Get a Line‑Item Hillside Quote
Cost Tables (Walls, Stairs, Drainage)
| Wall Size | Face Area | SRW @ $70/FSF | SRW/CMU @ $100/FSF | CMU/Poured @ $140/FSF |
|---|---|---|---|---|
| 4′ × 30′ | 120 fsf | $8,400 | $12,000 | $16,800 |
| 6′ × 40′ | 240 fsf | $16,800 | $24,000 | $33,600 |
| 8′ × 40′ | 320 fsf | $22,400 | $32,000 | $44,800 |
Typical Adders (Hillside)
| Item | Typical Range | Notes |
|---|---|---|
| Engineering (SRW) | $1,500–$4,500 | Geogrid schedule, surcharge, curves/terraces. (Industry baselines often start at ≥60% of wall height for reinforcement length; final design per engineering.) |
| Engineering (CMU/Poured) | $3,000–$8,000 | Footings, steel, waterproofing details. |
| Geotech / Soils Report | $2,500–$6,500 | Hillside, weak/expansive soils, tall walls. |
| Survey / Staking | $800–$2,200 | Property lines, easements, ROW limits. |
| Permits & Plan Check | $400–$2,000+ | City/County; overlays may add reviews. |
| Export / Haul (spoils) | $40–$85 per CY | Volume, access, dump fees vary. |
| Tight Access / Crane | +$10–$25/FSF or $1,200–$4,500 day | Hoisting block, equipment staging. |
See My Wall Size & Adders →
Example Line‑Item Model — 2 Terraces + Stair Flight
| Item | Scope / Notes | Cost Range |
|---|---|---|
| SRW Wall (6′ × 40′) | 240 fsf w/ geogrid lifts, embed, drain zone | $24,000–$33,600 |
| SRW Wall (4′ × 30′) | 120 fsf w/ geogrid, curves, cap | $12,000–$16,800 |
| Stair Flight (10 steps) | Structural risers, porcelain/paver treads, handrail bases | $9,000–$18,000 |
| Drainage | French drains, area drains, channel @ landings, lawful outlets | $6,500–$14,500 |
| Lighting Rough‑In | Conduits, boxes for step/wall lights; transformer provision | $1,200–$2,800 |
| Engineering & Permits | SRW calcs, plan set, plan check | $2,500–$6,500 |
| Total (Installed) | Two terraces + stairs + drainage + rough‑in | $55,000–$92,000 |
Price My Hillside Like This →
Design & Specs (What Makes Hillsides Last)
SRW Core
- Leveling pad & embed: 4–8″ compacted base, first course buried; batter per system.
- Geogrid: engineered elevations & lengths to resist surcharge/global stability; industry starting point is often reinforcement length ≈≥60% of wall height (final design per engineering).
- Drainage zone: 12–18″ clean angular stone + perforated socked pipe to a lawful private outlet.
- Separation fabric: geotextile between drain rock and native soils (prevents fines migration).
- Setbacks & property lines: keep the reinforced zone on your parcel or secure recorded rights.
CMU / Poured Walls
- Footings on/near slopes: satisfy CRC/CBC setbacks for foundations near descending/ascending slopes (engineer sets depths/steps and lateral support).
- Waterproofing & drainage: dampproof/waterproof + protection board; drainage mat; perforated pipe to private outlet.
- Finishes: stucco/stone veneer and caps detailed for movement & drainage.
- Guardrails: coordinate posts (cored/embedded on structural; surface‑mounted on SRW).
Stairs (Porcelain / Paver)
- Structure first: stable risers & landings with CRC‑consistent rise/run; typical residential stairways are ≥36″ clear; handrails on flights with ≥4 risers; guards where drop >30″. (R311.7, R312)
- Slip rating: outdoor porcelain or textured pavers (wet areas around irrigation).
- Lighting rough‑in: boxes at risers or under caps; avoid glare in sightlines.
- Drainage at landings: channel or area drains to private discharge, not public curb/gutter (DS‑560).
Design My Terraces, Stairs & Finishes
Drainage (Keep the Slope, Save the Wall)
- Capture & convey: wide drain zones behind walls; daylight where possible, or route to on‑site infiltration/drywells—never trap water behind backfill. City stormwater submittals typically begin with DS‑560.
- Surface management: swales, area drains, and channels at landings/paths to prevent sheet flow over steps.
- Lawful discharge: avoid tying into public curb/gutter without approvals—private connections in ROW generally need a ROW permit and often an EMRA.
- Near buildings: grade hardscape/soil to drain away from foundations—CRC R401.3 calls for ≈6″ fall within the first 10′ (or approved drains/swales where constrained).
Map My Drainage Plan →
Lighting (Safe, Dark‑Sky Friendly)
- City of San Diego: comply with SDMC 142.0740 Outdoor Lighting + California Energy Code (Title 24). Use warm (2700–3000K), shielded, BUG‑rated optics.
- County (Unincorporated): follow the Light Pollution Code and guidance in PDS‑211.
- Scenes & curfew: Arrival / Path / Late; dim or off 11 p.m.–6 a.m. where curfews apply.
Add Step & Path Lighting to My Plan
Permits & Overlays (San Diego Snapshot)
- Retaining walls: City requires permits for walls over 3′ or any wall with surcharge (link). County similarly requires permits for walls ≥3′ or with surcharge (PDS‑083).
- Grading permits: County exemptions typically require <200 CY and <8′ banks (verify: §87.202). City grading and steep‑slope creation may trigger permits/SDP; see Grading Permit and Steep Hillside Guidelines.
- Coastal/ESL/steep slopes: In the Coastal Overlay or on ESL steep hillsides, additional discretionary review (CDP, NDP/SDP) may apply—see ESL Regulations.
- Stormwater: plans must show capture/infiltration and lawful discharge; City submittals typically include DS‑560.
- Right‑of‑Way (ROW) work: curb/gutter connections, under‑sidewalk drains, or private facilities in ROW require a ROW permit and often an EMRA.
Have IID Handle Engineering & Permits
Sequence & Timeline (No Re‑Work)
Order we build: demo/clear → survey/staking → erosion BMPs → rough grade/benching → wall excavation & leveling pad → first course / geogrid lifts → drain zone to outlet → stairs structure → utilities & lighting rough‑in → backfill/compact lifts → finishes (veneer/porcelain/pavers) → lighting/rail install → final grading/planting.
City projects generally include stormwater BMPs and the DS‑560 checklist; steep‑hillside work may add reviews/inspections.
- Design & engineering: ~1–3 weeks (overlays can add time).
- Permits & reviews: ~1–6 weeks (Coastal/ESL/historic may extend).
- Build: small terrace sets ~1–2 weeks; complex estates 3–6+ weeks (export, lifts, finishes).
Plan My Schedule & Procurement
Common Pitfalls (and How We Avoid Them)
- No geogrid under surcharge: guarantees movement. We engineer grid lengths/elevations and global stability.
- Undersized drain zone: clogs/weep stains. We use wide clean stone + socked perf pipe + cleanouts.
- Illegal discharge: tying to curb/gutter without ROW/EMRA is a fast path to corrections. We design lawful outlets (EMRA).
- Skipping survey: geogrid crossing property lines creates legal issues. We stake first.
- Glare bombing: unshielded step lights into neighbor views. We use shielded optics & curfew scenes (SDMC 142.0740).
Get a Compliance‑Proof Hillside Plan
Quote Comparison Checklist
- Wall schedule: height/length map, embedment, face sq ft used for pricing.
- Geogrid & drainage: elevations/lengths, drain zone width, pipe route to outlet.
- Stair details: structure, finish (porcelain/paver), handrail bases, lighting rough‑in (CRC stair/guard compliance: R311.7 / R312).
- Survey/soils: included or allowances listed.
- Permits/engineering: stamped calcs, plan set, inspections (retaining wall permit triggers noted above).
- ROW/EMRA (if needed): any private drainage tie‑ins to curb/gutter or other encroachments (ROW • EMRA).
- Export/access: volumes, staging, crane/hoisting if needed.
- Finishes & rails: veneers/caps, guardrail type, lighting fixtures & transformer.
- Warranty & service: wall system, finishes, lighting, seasonal check.
Transparent, Line‑Item Hillside Quote
Plan the rest of your estate:
Serving San Diego County: Rancho Santa Fe, Fairbanks Ranch, La Jolla, Del Mar, Carmel Valley, Encinitas, Carlsbad, Poway, Harmony Grove, Solana Beach, and more.
FAQs
How much do hillside retaining walls cost in San Diego?
Most SRW land $70–$140 per face sq ft; CMU/veneered and poured walls trend $120–$260+. Surcharge, overlays, access, and export drive totals.
Do I need engineering and permits?
Walls around 3’+ (measured from the top of footing) and any wall with surcharge typically require stamped engineering and permits in both City and County. ESL/Coastal overlays can add reviews. See City and County.
What’s the safest stair spec?
Stable risers/landings with CRC‑consistent rise/run, width ≥36″, handrails on flights with ≥4 risers, guards where the drop exceeds 30″, shielded step lights, and drains at landings (R311.7, R312).
Where does the water go?
Wide drain zones to daylight or on‑site infiltration/drywells; avoid direct tie‑ins to public curb/gutter without ROW/EMRA authorization (ROW • EMRA).
Can you light hillsides without glare?
Yes—2700–3000K shielded wall/step lights, forward‑throw path optics, moonlight, and curfew scenes under local lighting regs (SDMC 142.0740 • County Code).
