Estate Motor Courts, Gates & Entry Design: Cost & Permits (San Diego 2026)

Updated March 2026 — San Diego County

Designing an estate approach for Rancho Santa Fe, Fairbanks Ranch, La Jolla, or Carmel Valley? This guide covers motor court layouts, drive‑rated pavers/porcelain, aprons & Right‑of‑Way (ROW), gate operators & safety, dark‑sky lighting, drainage, and typical installed costs so you get a beautiful entry that passes review and impresses on arrival. If you are planning a full property transformation alongside the motor court, our budget tiers guide shows how entry work fits into $100k / $250k / $500k+ scopes.

Do‑This‑First: Jurisdiction‑Specific Pre‑Check

TL;DR: 2026 San Diego Ranges

Estate Entry Packages (Good / Better / Best)

For context on how motor court scope fits alongside backyard entertaining zones, kitchens, and pergolas, see our $100k / $250k / $500k+ budget tiers.

Driveway & Motor Court Cost by Size

Driveway Apron & Right‑of‑Way (ROW)

• When aprons trigger: Any curb cut modification, apron replacement, or work in parkway/sidewalk needs a ROW permit. Private decorative elements in ROW (pavers, pilasters, lights) usually require a recorded EMRA (IB‑576; SDMC §129.0715 & City Form DS‑3237). Our driveway permits & ROW guide covers the full process, fees, and timeline.
• Traffic control & inspections: Submit a DS‑269 Traffic Control Plan/Permit per IB‑177; fees per IB‑502. Night/Sunday work may also require a Construction Noise Permit. City standard driveway/apron geometry follows Standard Drawings (e.g., SDG‑164) and sight‑distance rules (Standard Drawings).
• Visibility & landscaping at drives: Provide a 10’×10′ driveway visibility triangle (and 25’×25′ at street corners) and keep hardscape/plantings ≤36″ high within visibility areas (SDMC §113.0273; §142.0409(b)(2)).
• Street trees & utilities: Protect tree root zones and pothole utilities; irrigation/low‑voltage in parkways are often included under the ROW permit.
• State routes: If your approach ties into a Caltrans highway, a Caltrans Encroachment Permit also applies.

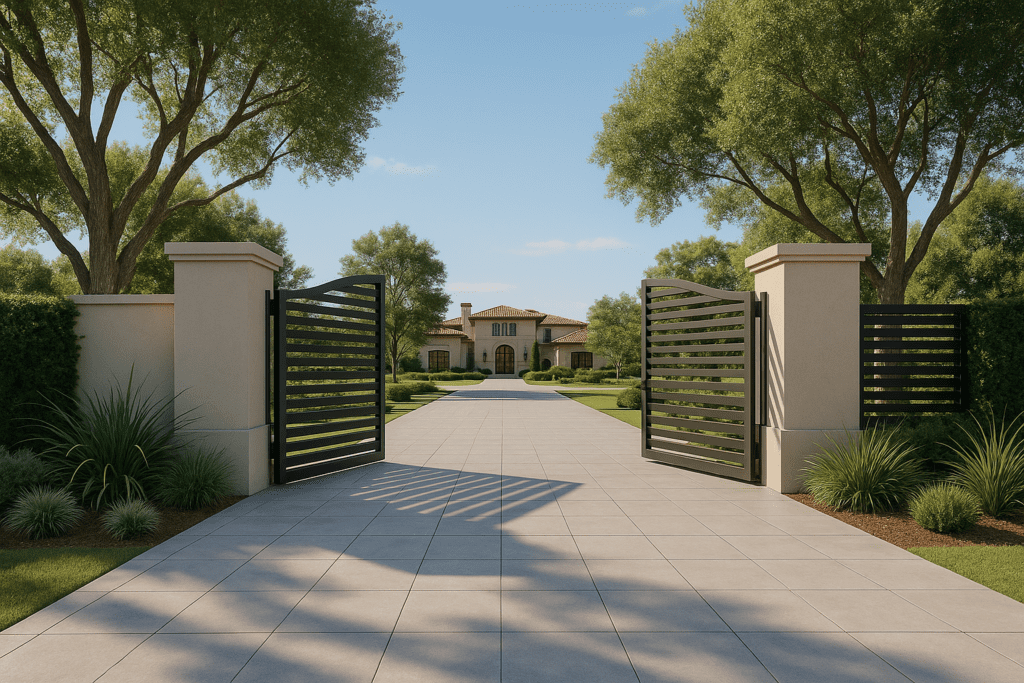

Gates, Operators & Safety (Slide vs. Swing)

Entry Lighting (Dark‑Sky Friendly)

• Layering: low‑glare bollards along edges, shielded wall/pilaster lights at entries, and moonlighting from trees/structures for gentle fill. We recommend 2700–3000K with full cutoff/shielding per SDMC §142.0740 and County Light Pollution Code.
• Control: astronomical timer + scenes; curfew dimming near neighbors; forward‑throw optics to keep light off the street. The same scene‑based approach (arrival, entertain, late) we use on backyard projects applies to entries.
• Address visibility: softly lit address plaques/pilasters improve wayfinding without glare. RSF projects must meet RSF Association lighting limits/locations (RSF Lighting Reg.).

Walls, Pilasters & Address Features

• Pilasters: engineer posts/footings, embed conduit for power/data/lighting, spec marine‑grade fixtures near the coast, and detail caps to shed water. RSF: height and wing‑wall limits apply (RSF Gates & Pilasters).
• Seat/retaining walls: walls at ~3’+ or with surcharge typically require engineering/permits; City has standard retaining wall bulletins if using prescriptive designs (IB‑220, IB‑221); County guidance for sloping backfill is here.
• Finishes: porcelain/stone caps, stucco or stone veneer, and integrated mail/parcel boxes to match the home’s architecture.

Drainage & Permeable (Keep Water On‑Site)

• Conventional pavers: graded base with drains to lawful outlets; avoid sending runoff to the street without approvals. Meet foundation drainage slopes per CRC R401.3 (fall ≥6″ within first 10′ away from structures). Our drainage & stormwater guide covers sizing, lawful outlets, and DS‑560 requirements.
• Permeable pavers: open‑graded base stores/infiltrates water; add underdrain to private dispersal if soils dictate. Helps with stormwater compliance under City/County BMP Design Manuals (City Storm Water Standards; County BMP Manual). Most projects require the City’s DS‑560 Storm Water Applicability Checklist.
• Motor courts: trench drains at garage thresholds, capture at low points, and plan overflow paths away from structures/neighbor parcels.

Constraints & Overlays (What Can Change the Path)

• Visibility & sight distance: 10’×10′ driveway and 25’×25′ street‑corner triangles; keep walls/plantings ≤36″ within triangles (SDMC §113.0273; §142.0409(b)(2)).
• ESL (steep slopes): Steep hillsides are ≥25% slope with ≥50′ vertical relief; ESL permits apply, and within the Coastal Overlay Zone CDP/SDP layers are common (Steep Hillside Guidelines; §143.0142).
• Coastal Overlay: CDP often required for work near the coast or when ESL applies (§126.0702).
• Fire Access: Gates on fire apparatus access require Fire approval and emergency override/Knox provisions (CFC §503.6; County §503.6).
• HOA/ARC: RSF Association limits gate height/width and lighting, with Art Jury approval (RSF 42B; RSF Regulatory Code library).

Permit Submittal Packages (What We Prepare for You)

City of San Diego (typical motor court + apron/gate/lighting)

• Plan set: scaled site plan with turn radii, slopes, drain arrows, visibility triangles, apron details to City Standard Drawings; section build‑ups (standard vs permeable) with compaction targets.
• ROW & Traffic Control: ROW application/plans, DS‑269 TCP per IB‑177; fees via IB‑502.
• EMRA (if any private encroachments): EMRA package (DS‑3237) with legal description (IB‑576; SDMC §129.0715).
• Storm water: DS‑560 + BMP notes per Storm Water Standards Manual.
• Electrical/Low‑Voltage: electrical permit for new circuits, lighting controls, and gate power (Electrical Permit); cut sheets for fixtures (BUG/UGR data if requested) to show compliance with §142.0740.
• Gate compliance: operator model, safety devices, and details confirming UL 325 / ASTM F2200; Fire access and Knox location (UL 325 summary; Knox guidelines).
• Fees: reference IB‑501 (building) + IB‑502 (ROW/TCP) + IB‑103 (MEP).

Encinitas / Carlsbad / Del Mar / County

• Encinitas: Permanent PROW Encroachment application (with covenant) for non‑standard ROW features; traffic control per City Engineering.
• Carlsbad: ROW Permit / Encroachment Agreement; confirm street work/TCP via Land Development Engineering.
• Del Mar: Encroachment Permit (applicant guide) + application packet.
• County/RSF: DPW Encroachment Permits, TCP; RSF Association Art Jury submittals for gates/pilasters/lighting.

Typical Timeline

• Design & approvals: 1–2 weeks (concepts, materials, ROW/EMRA path).
• Permits/lead times: 1–6 weeks depending on ROW scope, EMRA recording, gate fabrication, and coastal/ESL overlays.
• Build: 1–3 weeks (demo/base/pavers), 1–3 days gates (after fabrication), 1–3 days lighting/pilasters; punch & sealing as specified.

Build Specs & Best Practices We Use

• Paver drives: 80mm (3⅛”) vehicular‑rated concrete pavers on 1″ bedding over 6–10″+ compacted base (thicker at turn radii). Edge restraints at all exposed edges; no geotextile omission on weak soils. See our paver driveway cost guide for spec details by project size.
• Drive‑rated porcelain: Specify 3cm units on a manufacturer‑approved assembly (e.g., reinforced concrete slab with bonded mortar or approved hybrid systems). Honor joint layout, movement joints, and anti‑fracture details at transitions. Our porcelain paver guide covers base options and R‑rating selection.
• Slopes & thresholds: cross‑slope ~2% typical; trench drains at garage doors; avoid adverse flow toward structures; maintain CRC R401.3 clearances.
• Compaction/QA: target ≥95% relative compaction on base; proof‑roll and plate load where needed; compaction tests at ROW interfaces when requested by inspector.
• Electrical & low‑voltage: dedicated circuits to gate operators; conduit for cameras/intercoms; surge protection; Knox interface where required by fire authority. For kitchen/outdoor living electrical in the same project, see our kitchen permits & gas/electrical guide.
• Lighting: fully shielded, BUG‑rated optics; 2700–3000K; curfew dimming; keep light off public ways; verify fixture mounting heights/locations for §142.0740 compliance.

Common Pitfalls (and How We Avoid Them)

• Skipping ROW/EMRA. Work in the parkway/apron without approvals risks red tags and forced removal. Confirm the permit path first (ROW, EMRA) and read our driveway permits guide for the step‑by‑step process.
• Wrong slopes/turn radii. We model clearances for SUVs/service vehicles; correct slopes prevent scraping and ponding.
• Undersized bases. Drive‑rated sections and compaction prevent rutting/settlement, especially at turning points where vehicles concentrate load.
• Glare at the street. Shielded optics and scene dimming protect neighbors and drivers (City §142.0740). Our lighting guide covers fixture selection and dark‑sky compliance.
• Coastal corrosion. Specify finishes, fasteners, and isolate dissimilar metals; choose marine‑grade fixtures/operators near the coast.
• Building the driveway without planning the backyard. If a full outdoor remodel is coming, trench gas, electrical, and low‑voltage sleeves under the driveway before pavers go down. Cutting through a finished motor court to run utilities later costs $8k–$15k in rework. Our budget tiers guide shows how to sequence front and back together.

Quote Comparison Checklist

• Scaled plan with turn radii, slopes, drain arrows, visibility triangles, and ROW/apron scope.
• Section build‑ups (standard vs. permeable) and compaction targets.
• Pattern/border schedule and any inlays or porcelain transitions.
• Gate package (type, operator size, UL 325/ASTM F2200 safety devices, access controls, power/data trenching, Knox).
• Lighting plan (fixture counts, optics/CCT, controls) with shielding notes per §142.0740.
• Pilaster/wall details (footings, reinforcement, conduits, caps/veneer).
• Permits/fees included? ROW/EMRA path, inspections, traffic control, and any coastal/ESL overlays listed?
• Line‑item estimate with demo/export, long trenching, coastal finish allowances.

FAQs

How much does an estate motor court cost in San Diego?

Most projects fall between $120k and $550k+ depending on paved area, patterns/inlays, gates/pilasters, lighting, drainage, and any apron/ROW scope. A compact driveway upgrade without gates or ROW work can come in under $90k, while estate arrivals with custom gates, permeable base, and coastal compliance run well above $300k.

Are porcelain pavers drive‑rated?

Yes, when specified as drive‑rated assemblies (e.g., 3cm porcelain on the proper base or manufacturer‑approved systems). We select a section that matches your vehicle loads and soil conditions. Our porcelain paver guide covers base options and slip‑resistance ratings.

Do I need a permit to replace my driveway apron?

Work in the public right‑of‑way (apron, curb cut, parkway) typically requires a ROW permit and inspections; private encroachments may require an EMRA. Our driveway permits & ROW guide walks through the full process for San Diego, Encinitas, Carlsbad, and the County.

What gate safety is required?

We design to current operator safety standards with multiple entrapment protections (photo eyes/edges), manual release, and battery backup. Gates on fire apparatus access roads also need emergency override and a Knox key switch or box. Final requirements depend on the operator model, gate weight, and your fire authority’s conditions.

Will my entry lighting bother neighbors?

Not with a proper plan. Our dark‑sky approach uses shielded optics, 2700–3000K CCT, and curfew dimming to keep glare and spill in check. We design the same arrival/entertain/late scenes we use on backyard lighting projects.

Can you make the motor court permeable?

Yes. Open‑graded bases store and infiltrate water; we add an underdrain only if soils require it. Permeable upgrades add roughly 15–25% to hardscape cost but can streamline stormwater compliance and reduce the need for separate detention on tight lots.

How does a motor court project fit into a larger outdoor remodel?

We trench gas, electrical, and low‑voltage sleeves under the driveway during Phase 1 so future backyard work (kitchens, pergolas, fire features) doesn’t require cutting through finished pavers. Our budget tiers guide shows how front‑of‑house and back‑of‑house scopes sequence together at the $250k and $500k+ levels.

What is the difference between pavers and porcelain for a driveway?

Concrete pavers (80mm vehicular‑rated) run roughly $28–$50/sf installed and handle heavy loads well with a flexible base. Drive‑rated porcelain (3cm) runs $32–$60/sf and offers a thinner, more refined look, but requires a rigid or manufacturer‑approved base assembly. Most estate clients choose porcelain for the motor court and pavers for secondary drives or service areas.

Serving San Diego County: Rancho Santa Fe, Fairbanks Ranch, La Jolla, Del Mar, Carmel Valley, Encinitas, Carlsbad, Poway, Harmony Grove, Solana Beach, and more.

References (San Diego)

• City of San Diego Right‑of‑Way Permits & EMRA (IB‑576) / DS‑3237 (encroachments in ROW)
• Public ROW Traffic Control (IB‑177) & DS‑269 Traffic Control Plan/Permit
• SDMC §113.0273 Visibility Areas & §142.0409(b)(2) Plant height ≤36″
• SDMC §142.0740 Outdoor Lighting Regulations & County Light Pollution Code
• UL 325/ASTM F2200 summary (DASMA TDS‑353‑1) • CFC §503.6 Security Gates • SDFD Knox Guidelines
• Retaining Wall Permits (IB‑220) & City Standard Drawings (driveway/apron geometry)
• CRC R401.3 Drainage • City Storm Water Standards • DS‑560
• RSF Gates & Pilasters (Art Jury) • RSF Exterior Lighting Regulation
• Coastal Development Permits (SDMC §126.0702) • ESL (Steep Hillsides §143.0142)
