Geotextile Fabric for Paver Installations: Do You Need It?

Geotextile fabric (also called filter fabric) is a permeable, woven or non-woven synthetic material installed between the native soil and the compacted aggregate base in a paver system. Its job is simple: let water pass through while preventing soil particles from migrating upward into the base rock.

Whether you actually need it depends entirely on what type of soil sits beneath your patio or driveway. In San Diego, the answer is usually yes.

What Geotextile Fabric Actually Does

A properly built paver system relies on a compacted aggregate base (typically Class II road base) as its structural foundation. The base is made of crushed rock particles ranging from 3/4-inch stone down to fine ground concrete. When this material is wetted and compacted in lifts to 95% Proctor density, the varied particle sizes interlock and create a rigid, load-bearing platform.

The problem is what sits underneath that base: native soil. In San Diego, large portions of the county (particularly inland areas like Poway, Escondido, El Cajon, Rancho Bernardo, Santee, and parts of Carlsbad and Vista) have expansive clay soil, often called “Diablo clay.” This clay swells when it absorbs water during the rainy season and shrinks during dry months.

Over time, especially during heavy rain events or from irrigation runoff, clay and silt particles from the native soil migrate upward into the compacted base. This process is called soil contamination. As fine clay particles work their way into the gaps between the crushed rock, they weaken the interlocking structure of the base. The base loses its load-bearing capacity. The result: settling, rutting, and uneven pavers.

Geotextile fabric stops this process. Installed directly on top of the excavated native soil (before the aggregate base is placed), it acts as a permanent separation barrier. Water drains through the fabric freely, but soil particles cannot pass through. The base stays clean, the interlock stays intact, and the paver surface remains stable for decades.

When Geotextile Fabric Is Essential

Clay or silt-based soils. If your property sits on expansive clay (common across most of San Diego County), geotextile fabric is not optional. It is a structural requirement for long-term performance. Without it, clay contamination of the base is not a question of “if” but “when.” The only variable is how quickly the damage becomes visible, typically 2 to 5 years depending on how much water exposure the area receives.

Vehicular applications (driveways, motor courts). Driveways carry repeated vehicle loads that compress the base under each tire path. If the base has been weakened by soil contamination, ruts form directly under the wheel tracks. Geotextile fabric is essential for any paver driveway in San Diego, regardless of soil type, because the consequences of base failure under vehicular loads are more severe and more expensive to repair than on a patio.

Areas with poor drainage or high water table. If your property has standing water after rain, soggy spots, or a high water table, water is moving through the soil beneath your hardscape regularly. That moving water carries fine soil particles with it. Geotextile fabric prevents those particles from infiltrating upward into the base even under sustained water pressure.

Hillside or sloped installations. On slopes, water moves laterally through the soil (not just vertically), which accelerates soil migration into the base. For hillside paver projects in San Diego (common in neighborhoods like Mt. Helix, La Mesa hills, Point Loma, and parts of Rancho Santa Fe), geotextile is standard practice. For more on hillside hardscape engineering, read our San Diego Hardscape Engineering Guide.

When You Can Skip It

If your property has sandy or well-draining decomposed granite soil (more common in some coastal and near-coastal areas of San Diego), the risk of soil contamination is significantly lower. Sand particles are too large to migrate into a properly compacted Class II base.

That said, the cost of geotextile fabric is so low relative to the total project cost that most professional installers include it as standard practice regardless of soil type. The insurance it provides against base contamination is worth far more than the $0.15 to $0.50 per square foot it adds to the project.

If a contractor tells you that your project does not need fabric and you are on clay soil, that is a red flag. Either they do not understand San Diego’s soil conditions or they are cutting a corner to lower their bid.

How It Is Installed

Installation is straightforward and adds minimal time to the project:

Step 1: Excavation. The existing soil, grass, and organic material are excavated to the required depth: 7.5 inches for pedestrian areas (4 inches of Class II base) or 9.5 inches for vehicular areas like driveways (6 inches of Class II base compacted in 2-inch lifts). RV-rated surfaces require 11.5 inches of excavation. The subgrade is graded to establish proper drainage slope away from the home’s foundation.

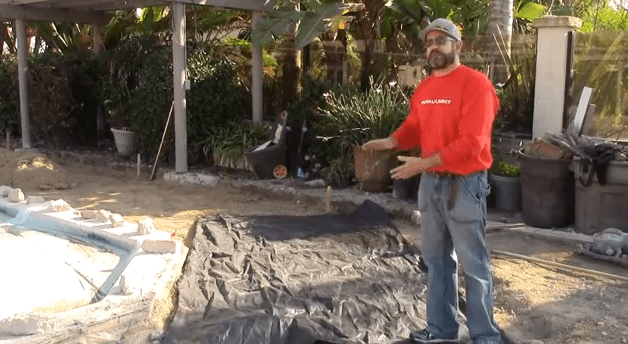

Step 2: Fabric placement. Non-woven geotextile fabric is rolled out across the entire excavated area. Strips are overlapped by 6 to 12 inches at seams to prevent gaps. The fabric is extended up the sides of the excavation (against the soil walls) and trimmed after the base is placed. This prevents lateral soil migration from the sides, not just the bottom.

Step 3: Base placement. Class II aggregate base is placed directly on top of the fabric in lifts (layers), each compacted to 95% density with a vibratory plate compactor. The fabric supports the base from below while allowing water to drain through.

Step 4: Continue normal installation. Bedding sand, pavers, edge restraints, and polymeric joint sand are installed per standard procedure on top of the compacted base.

The fabric adds roughly 15 to 30 minutes of labor to a typical patio installation. There is no curing time, no special equipment, and no ongoing maintenance. Once it is in place, it works passively for the life of the installation.

What It Costs

Geotextile fabric is one of the cheapest components in a paver installation. Non-woven geotextile rolls cost $0.10 to $0.25 per square foot for the material. Installed (including labor for cutting, overlapping, and placement), the total added cost is typically $0.15 to $0.50 per square foot.

For perspective: on a 1,000 square foot paver patio that costs $20,000 to $30,000 installed, geotextile fabric adds $150 to $500. That is less than 2% of the total project cost for a layer of protection that prevents the single most common cause of long-term paver failure in San Diego’s clay soil.

If a contractor’s bid does not include geotextile fabric and you are on clay or silt soil, ask them to add it. If they push back or say it is unnecessary, consider that a signal to get a second opinion. For a complete breakdown of what a paver installation should include, see our Paver Cost Guide.

Woven vs. Non-Woven: Which Type to Use

Geotextile fabric comes in two main types, and they serve different purposes:

Non-woven geotextile is the standard for paver installations. It is made of randomly oriented synthetic fibers that are needle-punched or heat-bonded together. Non-woven fabric excels at filtration (blocking soil particles) and drainage (allowing water to pass through). This is the type you want beneath a paver base in San Diego.

Woven geotextile is made of interlocking threads in a grid pattern. It is stronger in tension and is used primarily for soil stabilization and reinforcement in road construction, retaining wall applications, and heavy-load commercial projects. For residential paver patios and driveways, woven fabric is generally overkill and more expensive than necessary.

If your contractor specifies woven fabric for a hillside application or a driveway on particularly unstable soil, that is a legitimate engineering decision. For standard flat patios and walkways on clay soil, non-woven is the correct and most cost-effective choice.

What Happens Without It (The Real Cost of Skipping Fabric)

When geotextile is omitted from a paver installation on clay soil, the failure pattern is predictable:

Year 1 to 2: The paver surface looks fine. No visible issues. The homeowner assumes the installation was done correctly.

Year 3 to 5: After several rainy seasons, clay particles have migrated into the lower portion of the aggregate base. The base begins to lose its structural interlock in localized areas. Small low spots appear on the paver surface, most commonly in areas that receive the most water (near downspouts, at the base of slopes, along the edge closest to irrigated planting beds).

Year 5 to 8: The settling becomes more pronounced. Pavers shift, joints open up, and water pools on the surface instead of draining away. Weeds establish in the widened joints. On driveways, visible ruts form under the tire paths.

The repair: At this point, the only proper fix is to pull up the pavers, remove the contaminated base, install geotextile fabric (the step that should have been done originally), replace the base, re-compact, and reset the pavers. This repair typically costs 40% to 60% of what a new installation would cost, and it could have been prevented with a $150 to $500 layer of fabric.

The INSTALL-IT-DIRECT Standard

We include non-woven geotextile fabric as standard on every paver installation in San Diego. It is not an upgrade or an add-on. It is part of the engineered base system because the majority of San Diego County sits on soil that requires it.

Every project we build is backed by our written On-Time Completion Guarantee. We agree on a timeline before construction starts. If we miss the deadline due to delays on our end, we pay you a daily schedule credit. No other landscaping company in San Diego offers this. See our guarantee details.

We carry full workers’ compensation and general liability insurance that exceeds industry standards. We are fully licensed with the California CSLB (License #947643, C-27, D-06 & D-12 classifications), and we have completed over 6,000 projects across San Diego County since 2009.
