Soldier-Course Patio and Turf in Mission San Luis Rey, Oceanside
Project Gallery
Finished backyard showing a large-format light-colored paver patio with a contrasting gray paver border and a precise geometric cutout of artificial turf. Clean joints and defined edging indicate a completed installation adjacent to the house exterior and a small playset at the rear.
Residential backyard showing newly installed artificial turf abutting an interlocking paver patio with a contrasting dark paver border. A low segmental retaining curb separates a gravel bed and perimeter plantings; a wooden playset and propane tank sit against the fence.
Finished residential backyard showing a large light-gray paver patio with a dark contrasting border and an adjacent artificial turf inset. Clean joints and no equipment on site indicate a completed installation ready for handoff.
Side yard showing a completed paver walkway of light-colored square pavers with a dark border and integrated drain grate. Adjacent finished area is covered with compacted gravel, a mature tree and ivy along the fence next to the home's stucco exterior.
Finished backyard installation showing a paver patio with a contrasting soldier-course border adjacent to installed artificial turf. A low segmental curb/retaining wall separates a gravel drainage strip and planting bed; a wooden playhouse sits on the turf.
Project Snapshot
Project Story
Overview
Laid 1,163 sf of Angelus Courtyard Combo pavers with a dark soldier-course border across this Mission San Luis Rey backyard, shaped 548 sf of Imperial Desert Rye artificial turf into the field, and built a 62 sf Bastione 24-inch segmental wall capped in charcoal. Tied in 90 lf of SDR35 and triple-wall perforated drainage. About 12 build days across the full usable outdoor area.
We sit out on the new patio most weekends and the yard finally feels finished.
The Challenge
- Large sections of the backyard lawn were bare dirt where 1,163 sf of Angelus Courtyard Combo patio and 548 sf of Imperial Desert Rye turf now sit.
- The narrow side-yard concrete walkway was beyond repair and shared no detailing with the rest of the property.
- No drainage system existed to move runoff away from the foundation, so wet-weather pooling against the house was a recurring issue.
What Changed
How INSTALL-IT-DIRECT Helped
Over 1,000 five-star reviews and 1,500+ San Diego homeowners served.
Before & After
Small residential backyard with patchy, drought‑stressed natural grass and exposed dirt, bordered by a wooden fence and a low concrete planter/sidewalk on the left. Sparse ornamental plants along the fence suggest a site ready for landscape renovation such as artificial turf or paver patio installation.

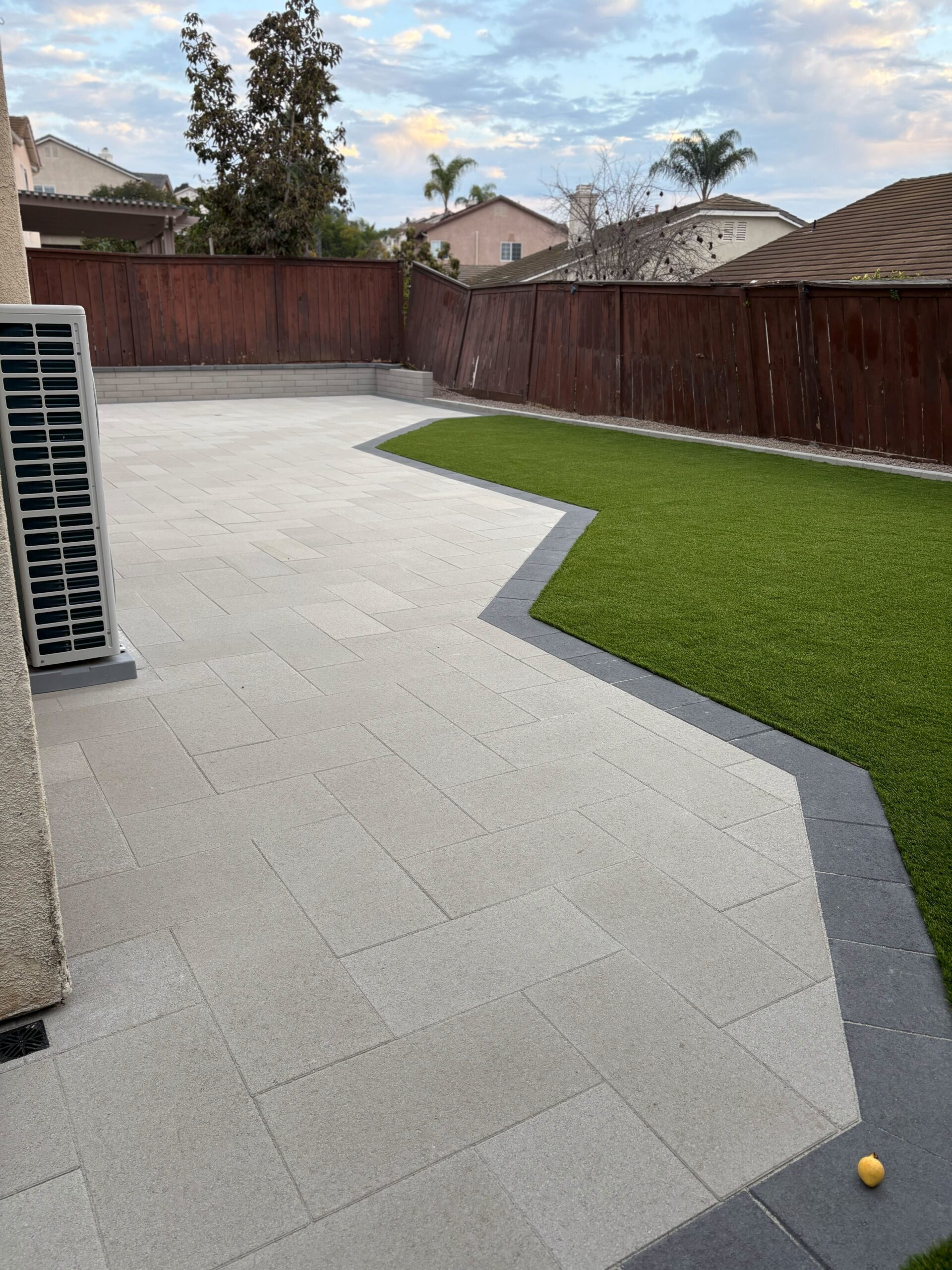

Finished residential backyard showing a light-gray interlocking paver patio with a contrasting dark border and a shaped artificial turf lawn. Clean edge detail and uniform joint lines indicate a completed installation ready for use.
Narrow side yard with an existing concrete walkway running alongside a stucco house and a low segmental retaining wall containing a soil strip. Trash/recycling bins and a few loose wall cap blocks are present, indicating this is an existing condition photo likely taken for site assessment. The soil strip appears ready for future turf or paver work.
Finished interlocking paver walkway installed along the side yard adjacent to the house, featuring large-format gray pavers with a darker soldier-course border. A gravel drainage bed runs parallel to the pavers with a drainage grate visible; a mature tree and fence line define the yard edge.
Design & Build
The Plan
Layout combined a large main patio with a geometric turf cutout and a continuous paver walkway along the side yard, creating visual flow from the back door to the property perimeter.
Paver selection: Angelus Courtyard Combo (Standard) 60MM in a light gray tone with Angelus Courtyard 6×9 accent pavers, finished with a dark soldier-course border set in concrete for contrast and edge definition.
Bastione 24-inch slab segmental wall with charcoal cap/coping selected to retain and define the planting bed area while providing a finished look that coordinates with the dark paver border.
Drainage plan used 60 lf of 3-in SDR35 drain line and 30 lf of 3-in triple-wall perforated pipe with eight drain caps, sized and sloped to meet surface drainage requirements away from the foundation.
Planting beds finished with AZ river rock (146 sf total across two zones), standard forest-floor mulch (100 sf), and weed cloth barrier to minimize long-term maintenance.
Drip irrigation zone added for any remaining planted areas, with existing sprinkler lines capped (6 caps) to eliminate conflicts with the new hardscape.
See the 2D plan drawing
The Build
Demolition and Excavation
Work began with removal of the existing backyard turf, shrubs, and 22 sf of the old segmental wall and footing. The side-yard concrete walkway was saw-cut (9 lf) and broken out with a jackhammer. Subgrade was excavated to approximately 7.5 inches across the patio footprint and to the required depth along the side yard to accept a compacted class-II road base.
Drainage and Base Preparation
With the subgrade exposed, the drainage network was trenched and installed: 60 lf of 3-in SDR35 rigid drain line and 30 lf of 3-in triple-wall perforated pipe, connected to eight drain caps positioned at low points. Class-II road base was spread, graded, and compacted to establish proper slope away from the house before bedding sand was screeded.
Paver and Wall Installation
Angelus Courtyard Combo (Standard) 60MM pavers were set across the main patio, with Angelus Courtyard 6x9 used in accent areas. A dark soldier-course border was set in concrete around the perimeter. The 78-lf paver-on-edge edging (set in concrete with Weston Wall detail) secured the boundary. Simultaneously, the Bastione 24-inch slab segmental wall was built and capped. A cap color was caught in the field and corrected with charcoal caps sourced from the supplier.
Turf, Planting Beds, and Irrigation
After pavers were set and joints filled with gray NextGel polymeric sand, Imperial Desert Rye artificial turf (548 sf) was installed over SGW weed cloth with silica sand infill and seam tape. AZ river rock beds (146 sf) and forest-floor mulch (100 sf) were placed with weed cloth underneath. The drip irrigation valve was connected to the water source with Schedule 40 PVC, and six existing sprinkler lines were capped.
Final Walk-Through and Completion
Finishing work included verifying water flow direction away from the house, confirming weep screed clearance, checking all joint sand, and inspecting cap adhesive. The crew completed a final walk-through to confirm all work was complete.
Investment
What would a similar project cost in Oceanside?
Toggle components on/off to estimate your project
Frequently Asked Questions
How much does a paver patio and artificial turf backyard cost in Oceanside, CA?
For a project of this scope in Oceanside, budget roughly $42,500 to $50,000. That range covers a large interlocking paver patio (around 1,000 sf), a shaped artificial turf lawn (around 550 sf), a segmental retaining wall, drainage piping, planting beds, and irrigation. Factors that move the number up include drainage complexity, the depth of excavation required, and wall height.
Does artificial turf require HOA approval in Oceanside?
In California, HOAs generally cannot prohibit artificial turf under Civil Code Section 4735, which voids CC&R provisions that effectively ban synthetic grass. HOAs may still set reasonable quality and appearance standards such as pile height and color. If your property is HOA-governed, it is worth submitting an architectural request to document approval, even if the HOA cannot legally deny it. As of early 2026, the City of Oceanside has not enacted any municipal ban on artificial turf. Verify current requirements with a licensed contractor or attorney.
How is drainage handled under a paver patio in Oceanside?
This project used 60 linear feet of 3-inch SDR35 rigid drain line and 30 linear feet of 3-inch triple-wall perforated pipe, connected to eight drain caps at low points in the yard. The system was trenched before base prep and graded to direct water away from the house foundation. Surface slopes were set to the standard minimum 6-inch drop within the first 10 feet from the foundation on hardscaped areas.
How long does a full backyard paver and turf renovation take in Oceanside?
A project of this size typically takes about two weeks of active field work. This project ran from demolition through final walk-through in approximately two weeks. That timeline includes demo, drainage, base prep, paver installation, wall construction, turf installation, rock beds, and irrigation. Design and permitting coordination happen before field work starts and are not included in that count.
What pavers were used for this Oceanside backyard project?
The main patio and side-yard walkway used Angelus Courtyard Combo (Standard) 60MM pavers in a light gray tone, with Angelus Courtyard 6x9 pavers used in accent areas. The border is a dark soldier-course pattern set in concrete, which creates a strong visual frame around the patio and turf inset. All joints were finished with NextGel gray polymeric sand.
What is a Bastione wall and is it right for a backyard in Oceanside?
Bastione is a segmental retaining wall product made from concrete slabs with a clean, contemporary face. In this project, Bastione 24-inch slabs were used to build a planting bed wall, finished with charcoal cap/coping pieces. It works well in Oceanside-area backyards because the neutral concrete color coordinates with most paver palettes and the wall holds its shape without mortar. For walls under 3 feet in height, a building permit is typically not required in most North County San Diego jurisdictions, though larger or tiered walls do require one.
