Paver-and-Turf Grid Backyard in Vista
Overview
A paver patio and artificial turf project in Vista (92081) that replaced a sloped, patchy lawn with 715 sf of Angelus Courtyard Combo pavers laid in a checkerboard with turf joints, a Stonewall II retaining wall, 1,130 sf of artificial turf, 1,502 sf of Bermuda sod, low-voltage lighting, drainage upgrades, and a prefab pergola with a gas-fed fire feature. Install It Direct delivered the build over about 8 weeks of on-site work.
Quick Facts
City Vista
Neighborhood Vista (92081)
Constraints/Challenges Clay-heavy soil across the build area required added stabilization fabric under the paver field and a soil-amendment pass under the sod. A leech-line moisture issue was discovered at demo and addressed by tying the French-drain runs into the regular drain line. The site is a sloped lot with a segmental retaining wall along a vinyl privacy fence, which set the rear edge of every zone.
Goals The homeowners wanted a finished, low-maintenance backyard they could actually use, with a defined patio area, a real lawn, and an outdoor seating zone tied to the existing covered patio. They also wanted the slope along the back fence stabilized with a clean, capped wall.
Scope 715 sf Angelus Courtyard Combo paver patio with artificial-turf grid joints, 1,130 sf Imperial Desert Rye 65 turf, 1,502 sf Bermuda sod, 185-unit Stonewall II retaining wall, 400 lf drainage, 30 LV fixtures, prefab pergola, and gas line for a fire feature.
Style Modern
Timeline About 8 weeks
Price Range $95k–$110k
The Challenge
- The back yard was patchy turf and bare soil that pooled water along the slope after rain, with no real patio surface to use.
- The narrow side yard was a worn corridor of sparse grass and exposed dirt that the household walked through every day.
- The existing retaining wall along the privacy fence had loose sections and unfinished planting beds, leaving the slope looking unsettled.
How Install It Direct Helped
The homeowners wanted a backyard they could walk out into and use, with a clean patio area, a real lawn, and a stable wall along the slope. Install It Direct laid 715 sf of Angelus Courtyard Combo pavers in a checkerboard grid with artificial-turf joints, finished a 185-unit Stonewall II retaining wall behind the seating zone, and added 1,502 sf of Bermuda sod plus 1,130 sf of artificial turf so each zone served its own purpose. A 400 lf drainage system, 30 low-voltage fixtures, and a prefab pergola over the seating area tied the build together. The finished space gives the household a defined patio, an open lawn, and a shaded seating zone with a gas-fed fire feature.
Market Context
A paver-and-turf backyard build of this scale in San Diego County typically lands in the low-six-figure range, with paver square footage, retaining-wall length, drainage scope, and site access doing most of the work to push the number up or down.
Neighborhood Context
Vista (92081) sits on the eastern edge of San Diego County's North County, where sloped, clay-heavy lots like this one need stabilized walls and a real drainage plan before any patio or lawn can sit flat.
Over 1,000 five-star reviews and 1,500+ San Diego homeowners served.

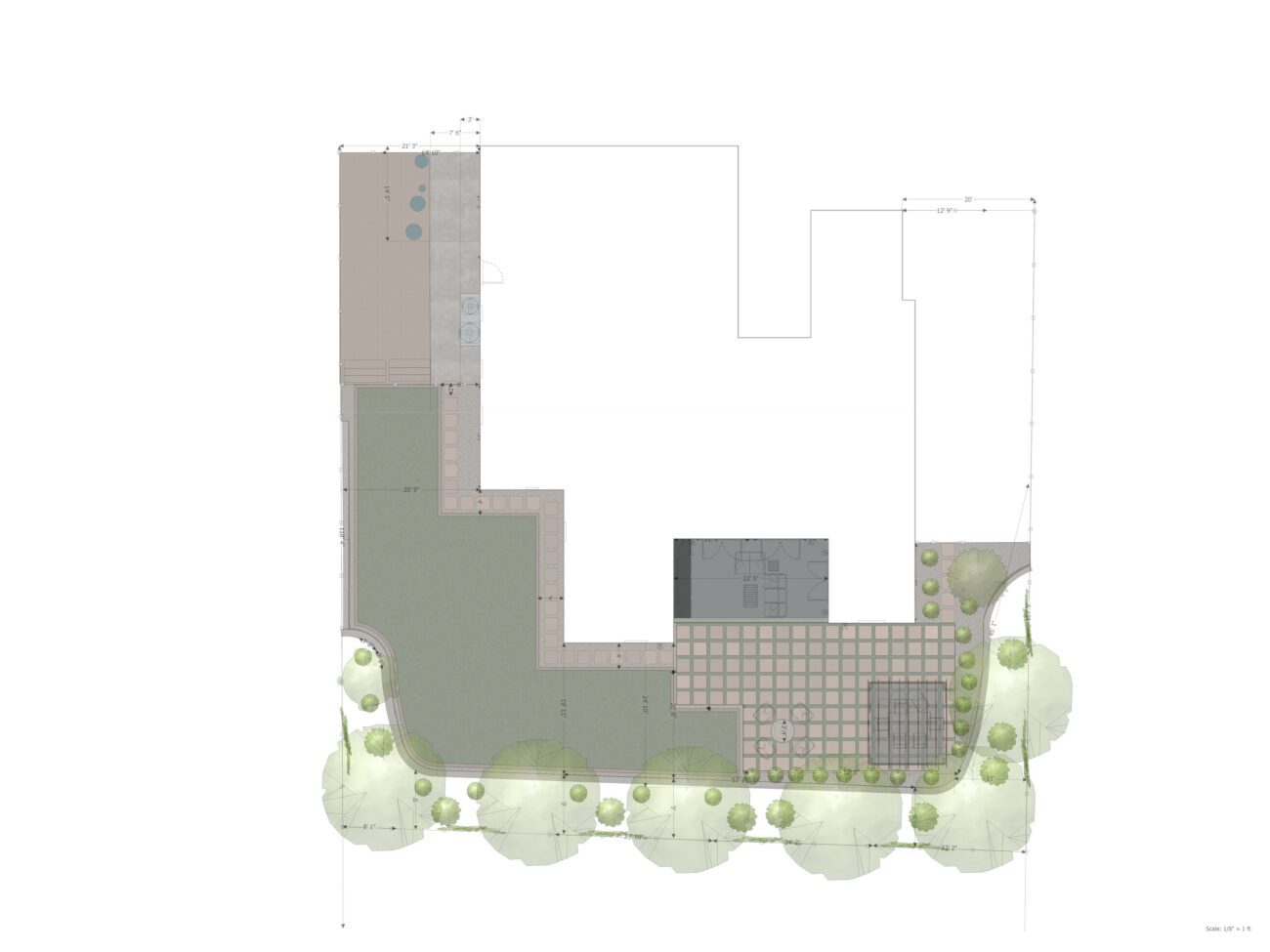

The Plan
Backyard layout built around a paver-and-turf checkerboard set against a Stonewall II capped retaining wall that follows the existing fence line.
Angelus Courtyard Combo 60mm pavers (715 sf) with Imperial Desert Rye 65 artificial turf (1,130 sf) infill in the joints, paired with 1,502 sf of Bermuda sod for the open lawn area.
Drainage strategy combining 200 lf of perforated French drain and 200 lf of solid SDR-35 line to move surface water away from the patio and house, with a gravel drain strip at the wall toe.
Low-voltage lighting per NEC Article 411: 20 in-ground Pro-Trade IG2 fixtures and 10 BUL1 up-lights on a 300W transformer with mechanical timer, fed by 250 lf of 12/2 wire.
Prefab pergola assembled on four 12-by-12 concrete footings with anchor straps, sited over the seating zone and adjacent to a 30 lf 1-inch gas line stub-out for a fire feature.
The Build

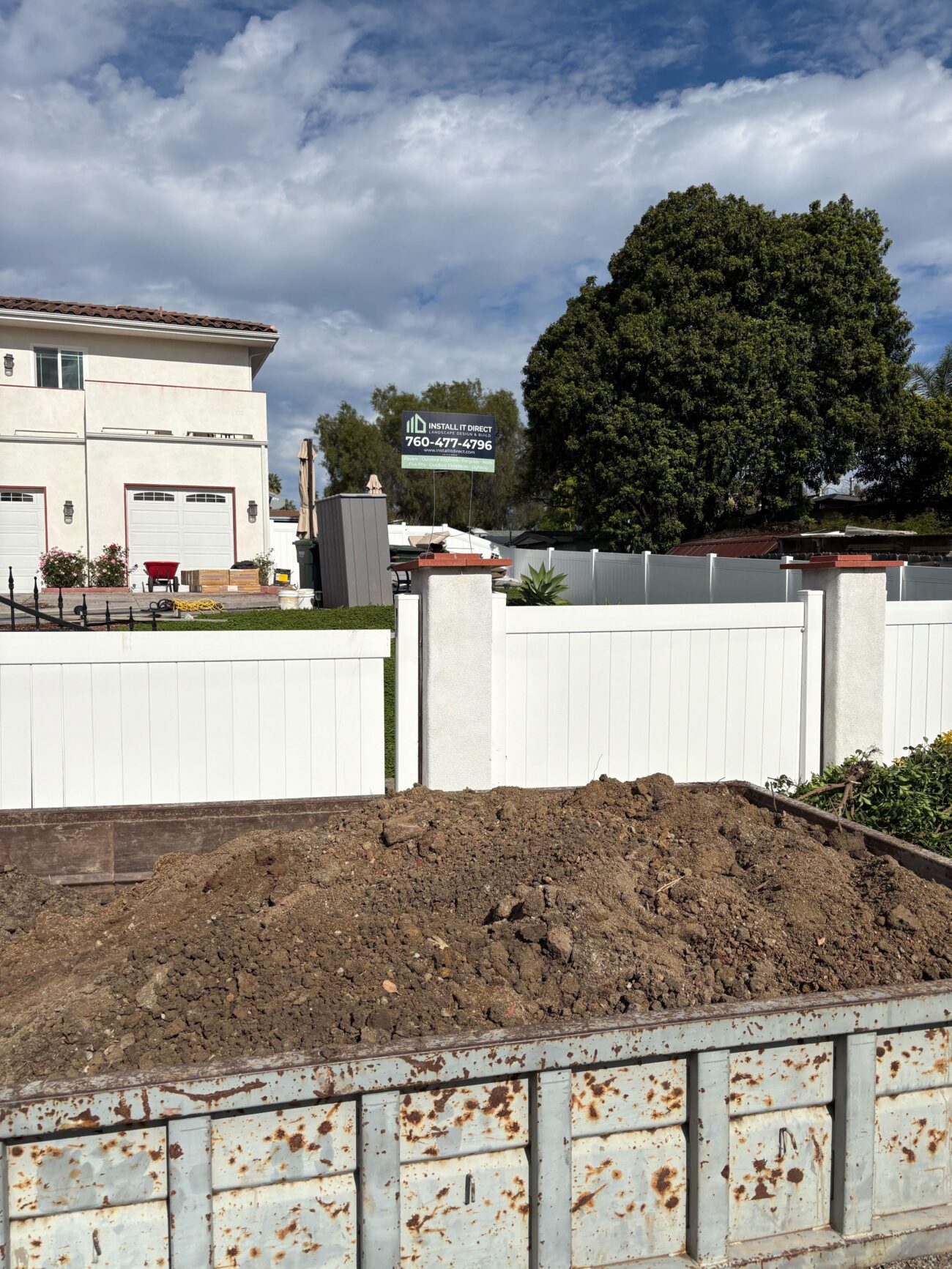

Day one: roll-off staged on the driveway approach as the crew kicks off demo and haul-off.

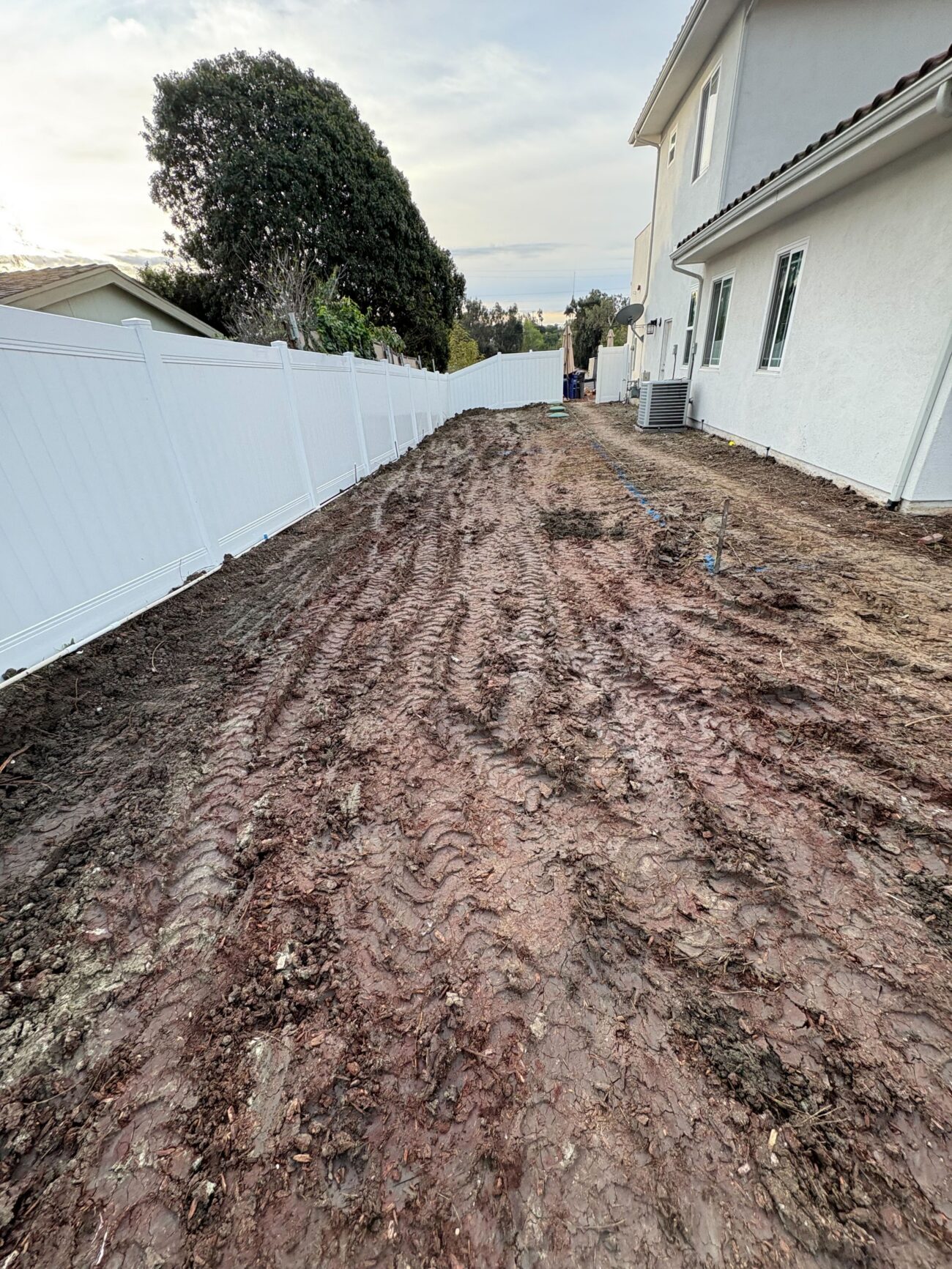

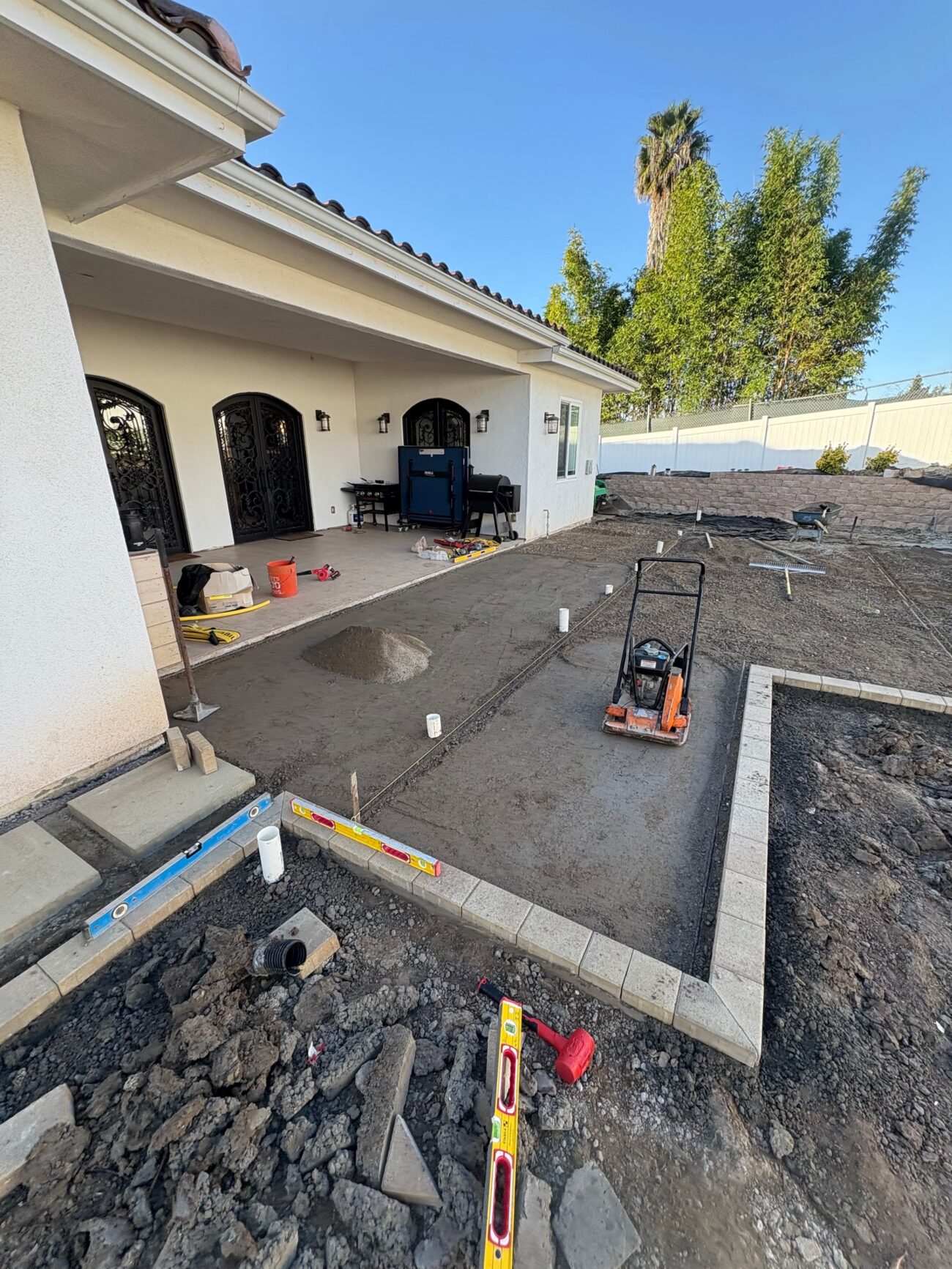

Stripping to subgrade and working through the clay-heavy soil that called for geotextile fabric under the paver field and soil amendment under the lawn.
Angelus Courtyard Combo pavers laid out across the patio and walkway, with edge restraints in and joint sand still to come.

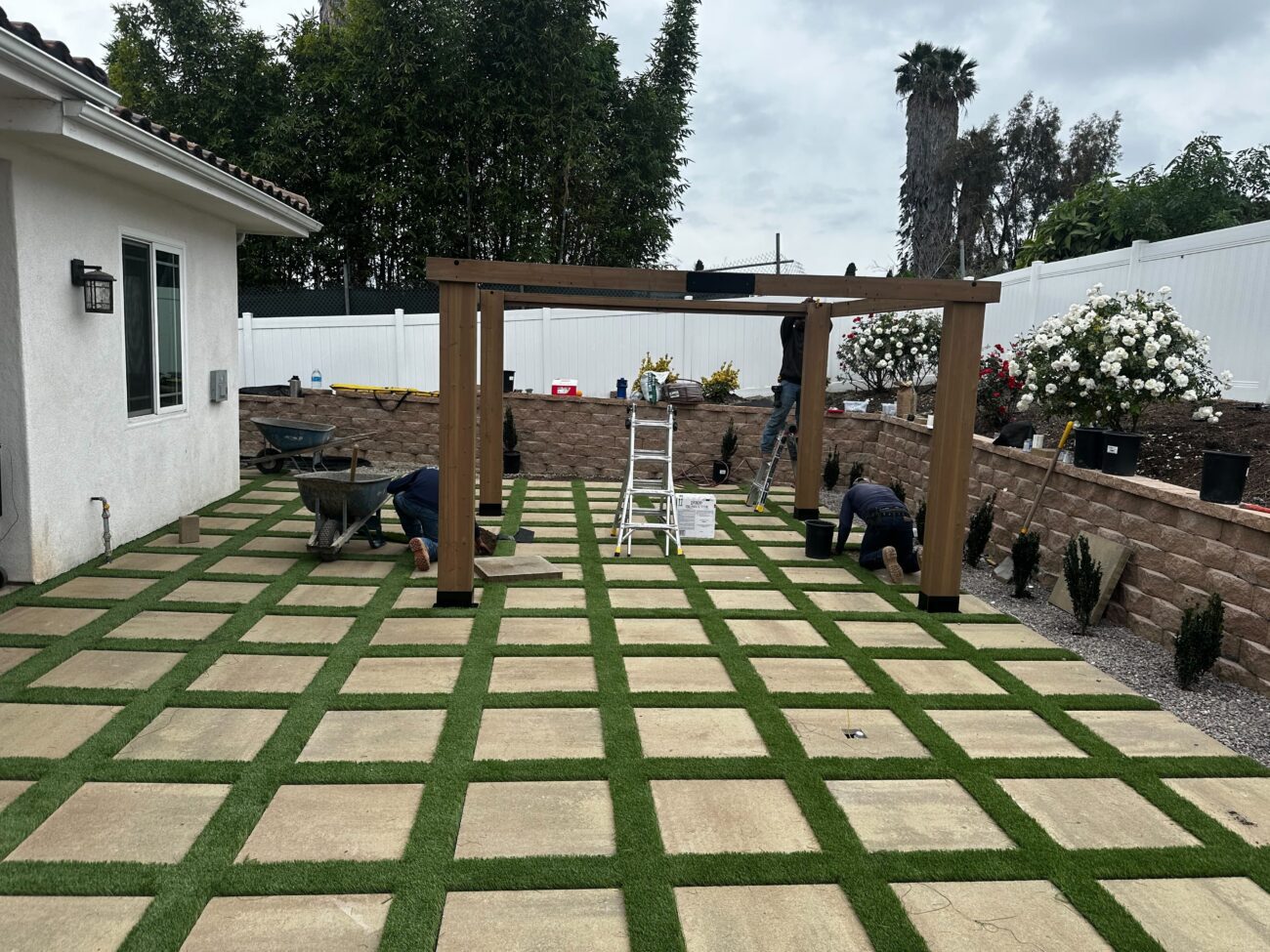

Crew assembling the prefab pergola on its four 12 by 12 footings while the gas line for the fire feature is roughed in alongside.
The crew stripped the back yard of patchy turf and existing vegetation, hauled off two large vegetation loads, and staged a roll-off on the driveway approach to start the work.
The site soil ran clay-heavy across the build area. The team worked the subgrade down, added geotextile fabric under the paver field for stability, and amended the sod area with USGA sand, gypsum, and compost tilled to 6 inches before any base went in.
The drainage system went in next: 200 lf of perforated French drain and 200 lf of solid SDR-35 line, tied into 20 drain caps and downspout connections, with a gravel drain strip at the wall toe.
The 185-unit Stonewall II capped retaining wall went up along the vinyl fence line on a prepared base with gravel back-drain. A short side-yard wall (60 lf) and a rebuild segment were finished in the same phase.

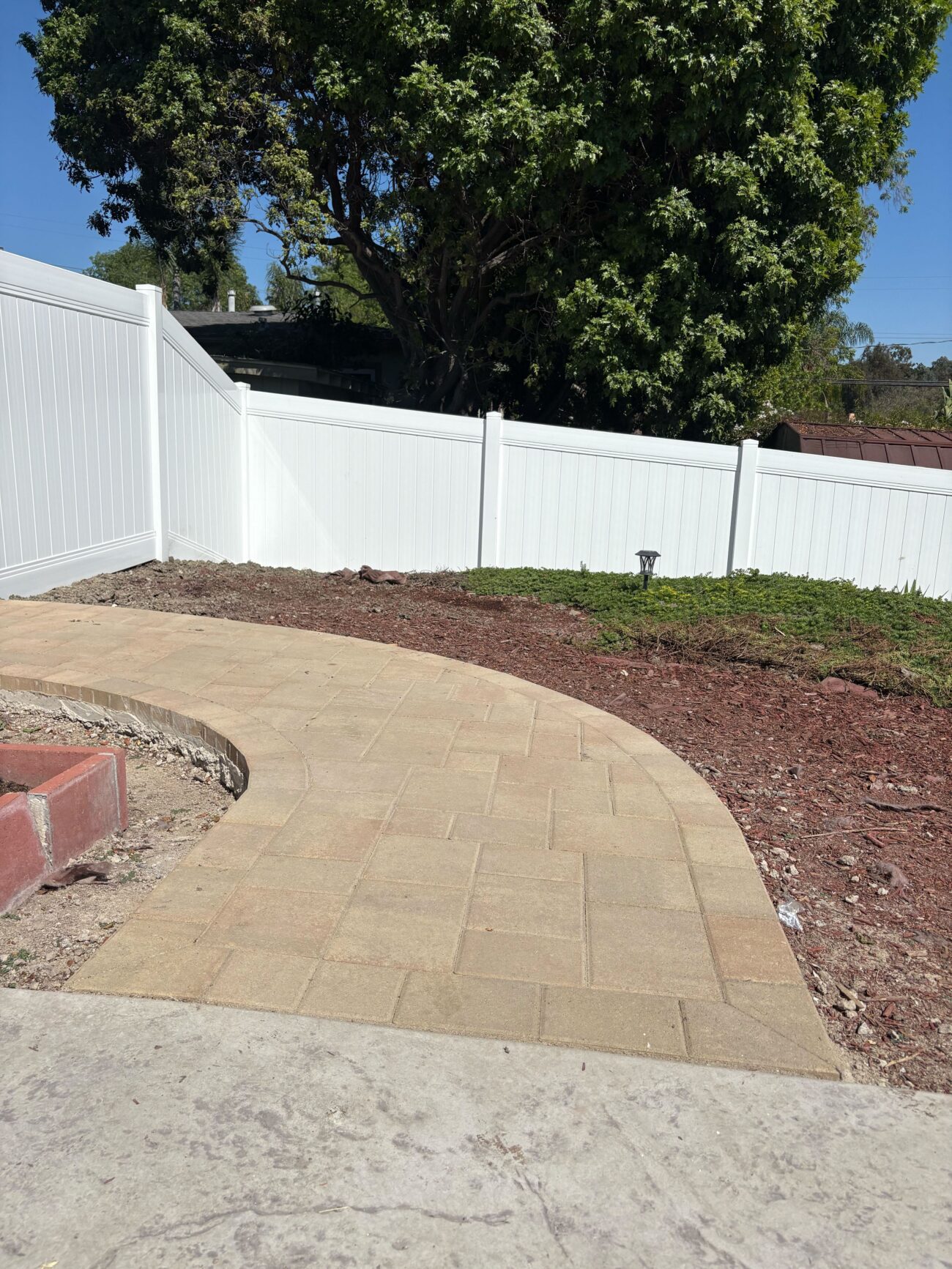

Angelus Courtyard Combo pavers were laid across two paver fields totalling 715 sf, with 230 lf of paver-on-edge mow strip set in concrete and 175 stepping stones placed in concrete. Joint sand and final compaction wrapped the patio surface.
Imperial Desert Rye 65 artificial turf (1,130 sf) was infilled into the paver-grid joints and laid as a side-yard surface. 1,502 sf of Bermuda sod was rolled out over the amended soil for the open lawn.
The prefab pergola was assembled on four 12-by-12 concrete footings with anchor straps. Alongside it, a 30 lf 1-inch gas line went into an 18-inch trench with tracer tape, with two connections and two sweeps for the fire feature.
20 Pro-Trade IG2 in-ground fixtures and 10 BUL1 up-lights were set on a 300W transformer with a mechanical timer, fed by 250 lf of 12/2 low-voltage wire. The crew finished mulched planting beds, set the river rock, and completed final cleanup.
Project Videos
The Result
A patchy lawn and bare-soil slope became 715 sf of Angelus Courtyard Combo pavers in a checkerboard grid with artificial-turf joints, 1,502 sf of Bermuda sod, 1,130 sf of artificial turf, a 185-unit Stonewall II retaining wall, and a prefab pergola over the seating area. 30 low-voltage fixtures and 400 lf of drainage make the back yard usable in the evening and after a heavy rain.

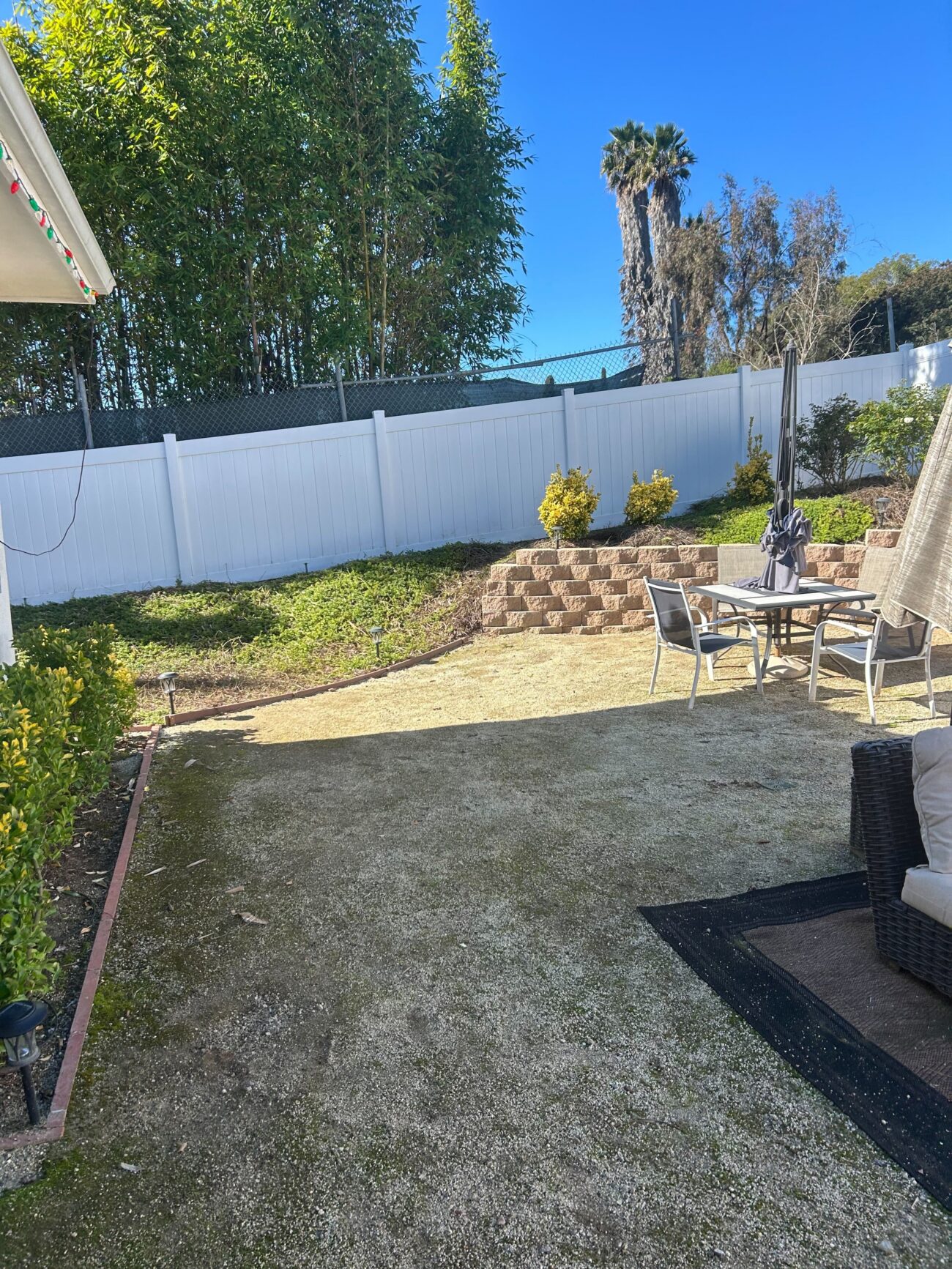

Both halves are wide hero-style framings of the same backyard, looking across the lawn / patio area toward the segmental retaining wall along the white vinyl privacy fence. The before shows patchy natural turf with bare soil and the existing low segmental wall as the rear boundary; the after shows the finished paver-and-artificial-turf grid patio, wood pergola over the seating area, and the same segmental retaining wall along the fence line. Shared landmarks (segmental retaining wall, white vinyl privacy fence, sloped grade) anchor the perspective; the transformation (lawn-to-paver-grid + pergola + drought-tolerant plantings) is unmistakable.
Standalone showpiece (different angle of fire pit zone). Confirms finished fire-bowl hardware for § COPY-5 imagery gate.

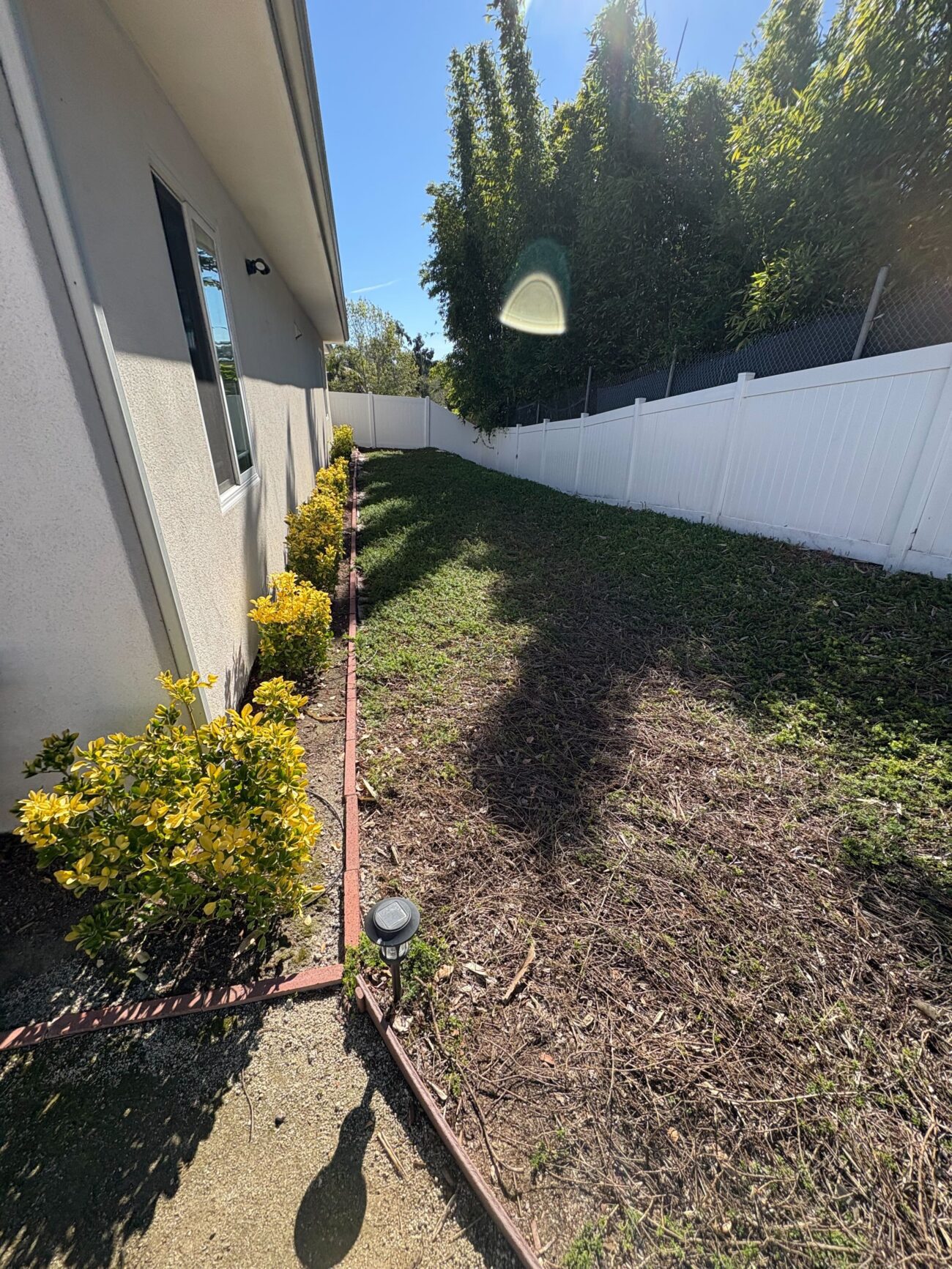

Both halves frame the narrow side-yard corridor between the stucco house and the white vinyl privacy fence, looking down the run. The before shows patchy turf, exposed soil, brick/stone edging, and a concrete walkway with a solar landscape light staked in the bed; the after shows the same corridor finished with large-format paver pads in a grid set with artificial-turf joints, a decorative stone border, the timber pergola anchored at left, and small shrubs in a tidied planter bed against the stucco wall. Shared landmarks (vinyl fence line, stucco house wall, narrow corridor proportion) make the perspective match strong even though the camera is shifted slightly higher in the after.
Cluster IMG-1797 second representative. Side-yard zone (hits the 60 lf side-yard wall and the side-yard paver border line items).

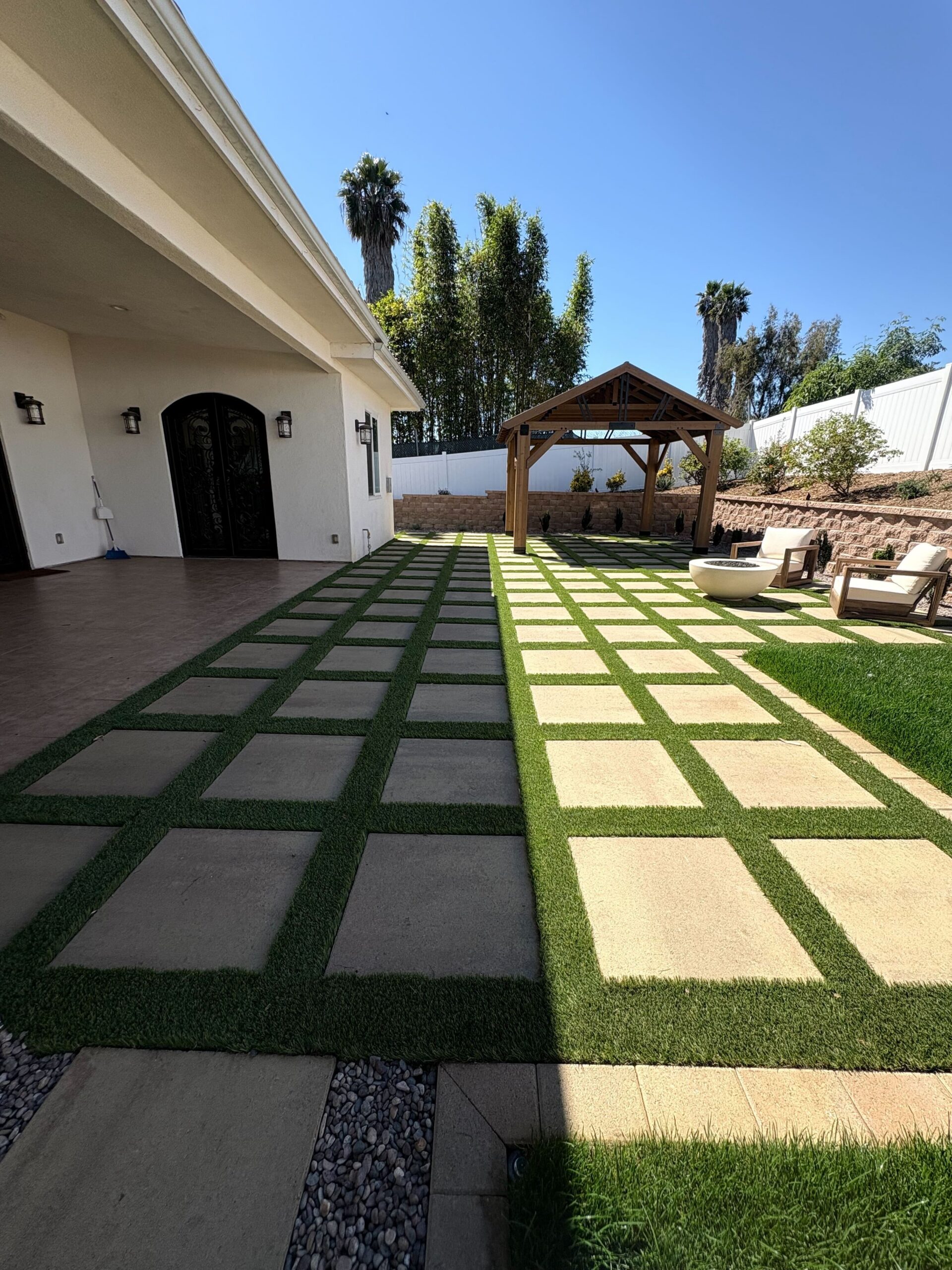

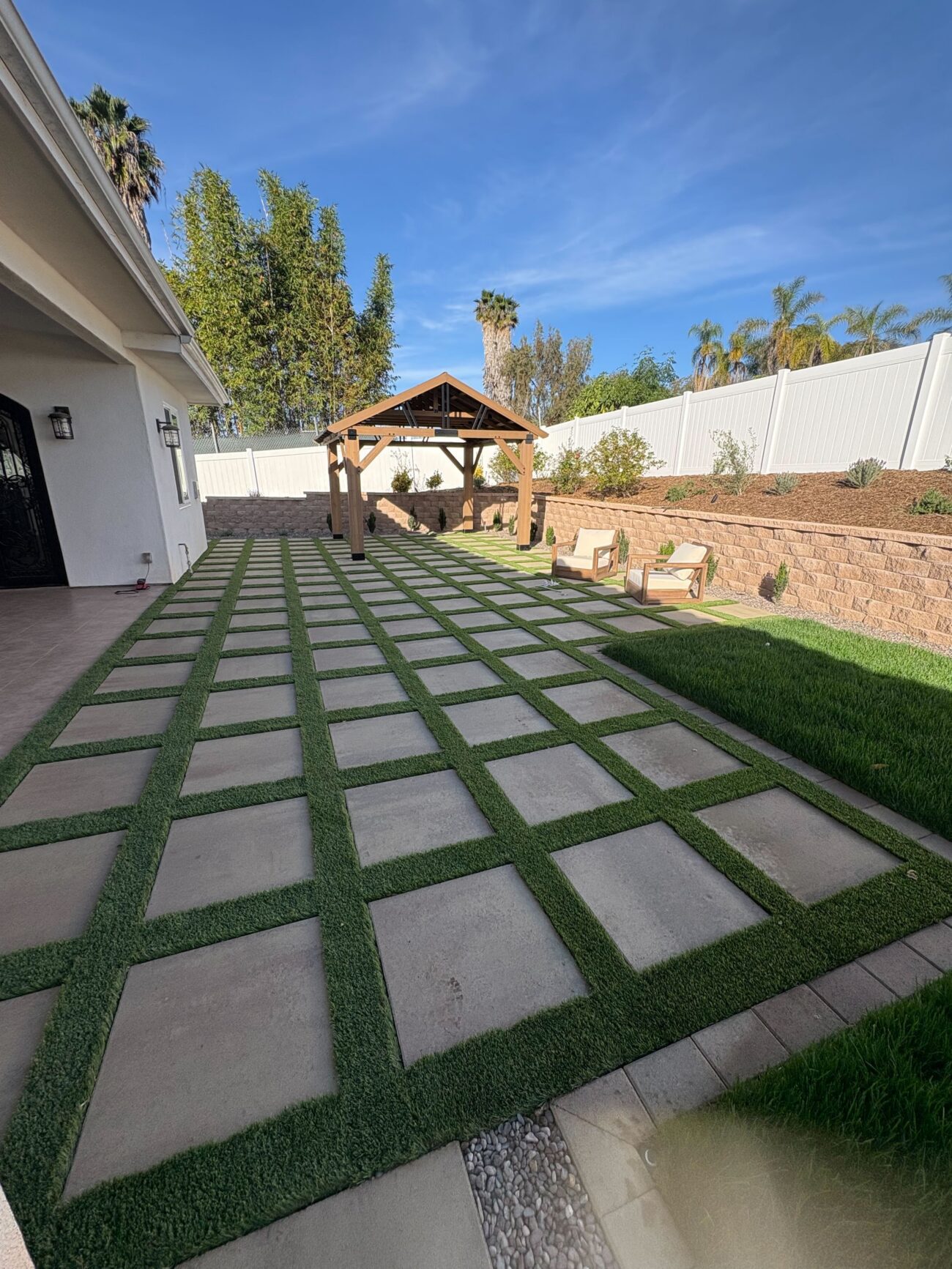

Hero. Most complete showpiece — paver+turf grid, pergola, fire pit, retaining wall, covered patio in one frame. Cluster IMG-1793 best representative.
Cluster IMG-1778 best representative. Strongest wide showpiece without fire pit; complements the hero by emphasizing the grid pattern and pergola.

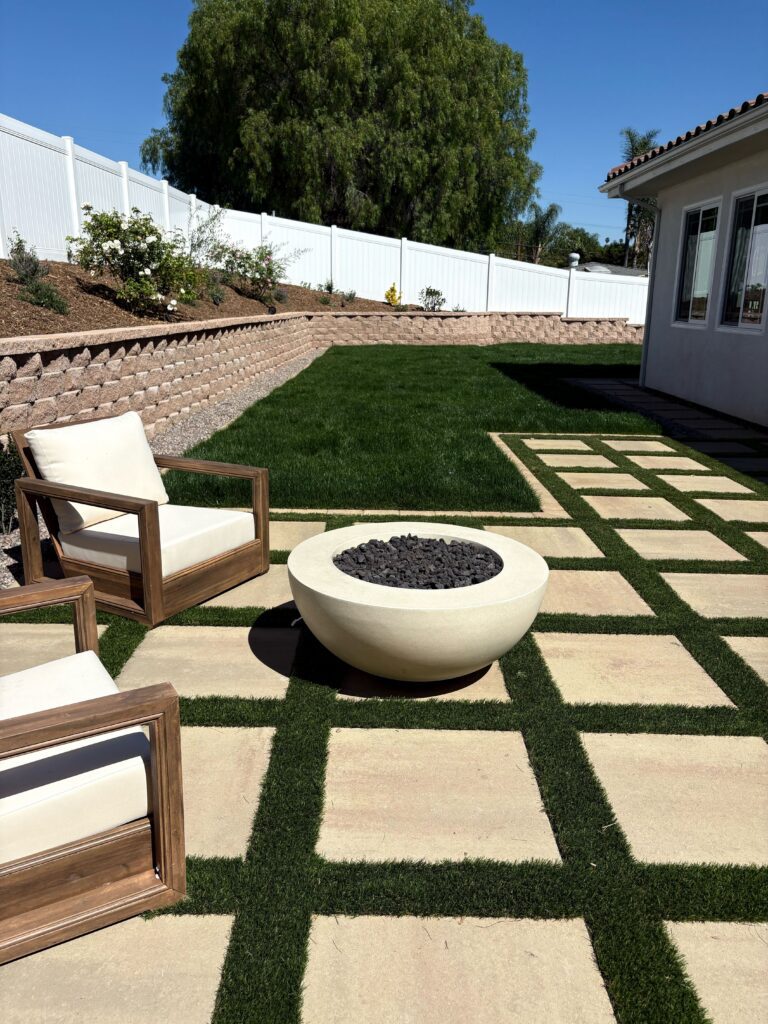

Standalone showpiece (different angle of fire pit zone). Confirms finished fire-bowl hardware for § COPY-5 imagery gate.

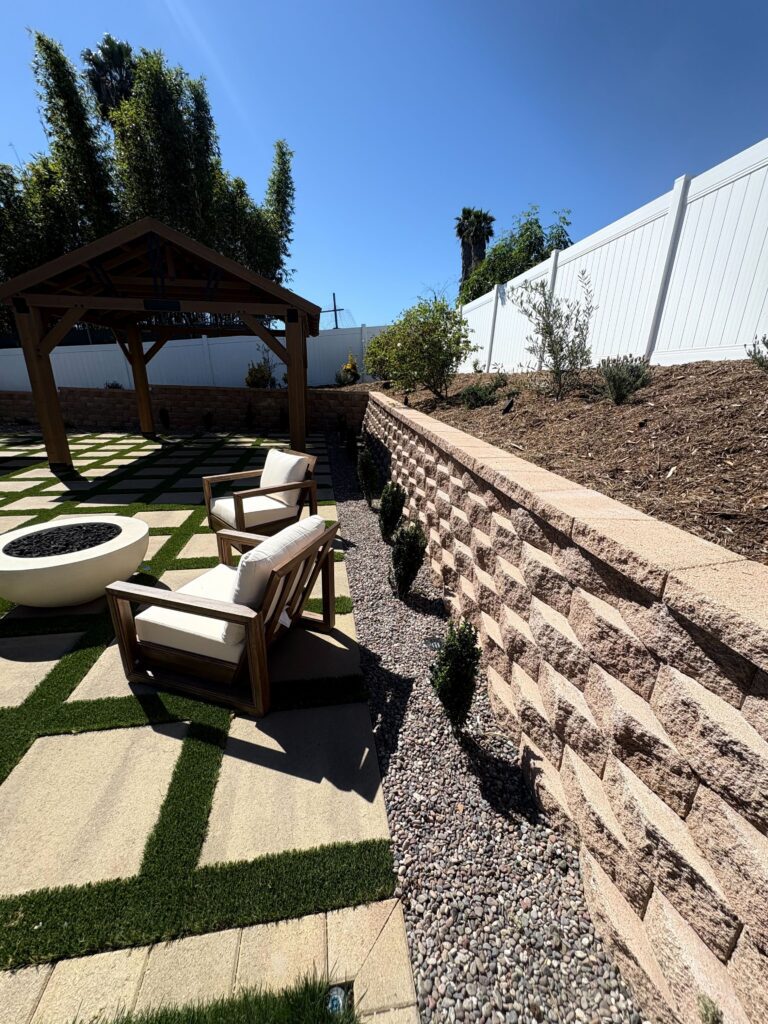

Cluster IMG-1793 second representative. Different framing shows the gravel drainage strip at the wall toe — a real scope element (200 lf SDR-35 + 200 lf perforated drain) not visible in hero.

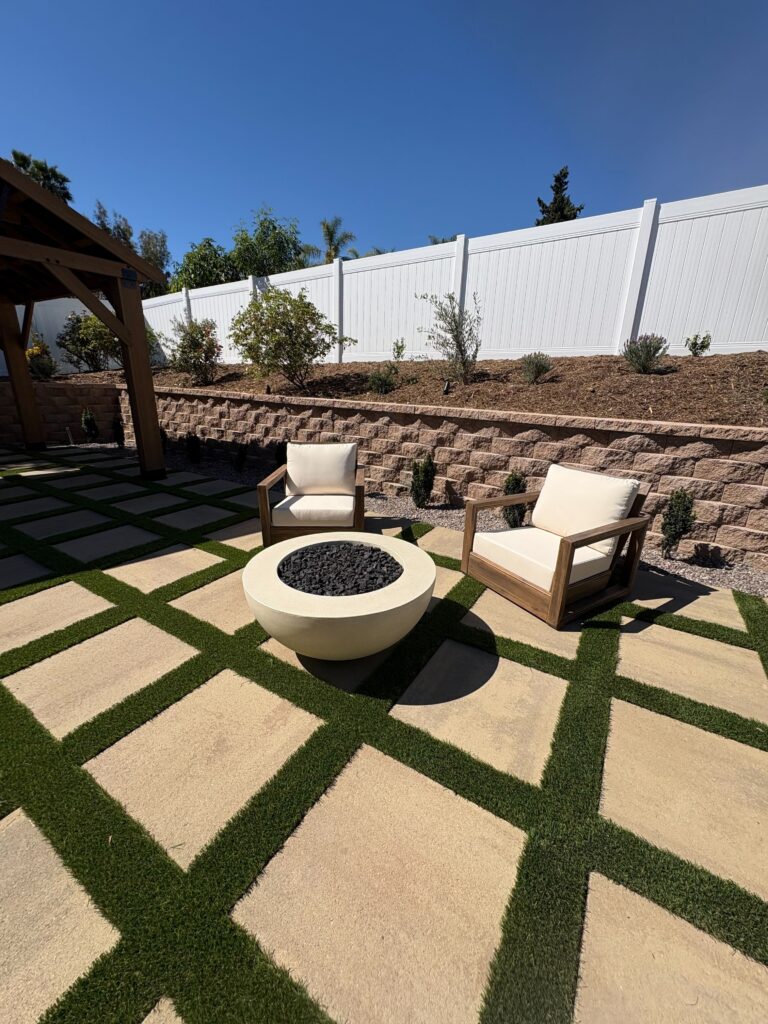

Cluster IMG-1794 best representative. Closer fire-pit-zone view supports the 'gas line for fire feature' scope reference.
Cluster IMG-1794 second representative. Showcases the wall-and-walkway zone with new ornamental shrubs (40x 5-gal + 8x 15-gal plantings).

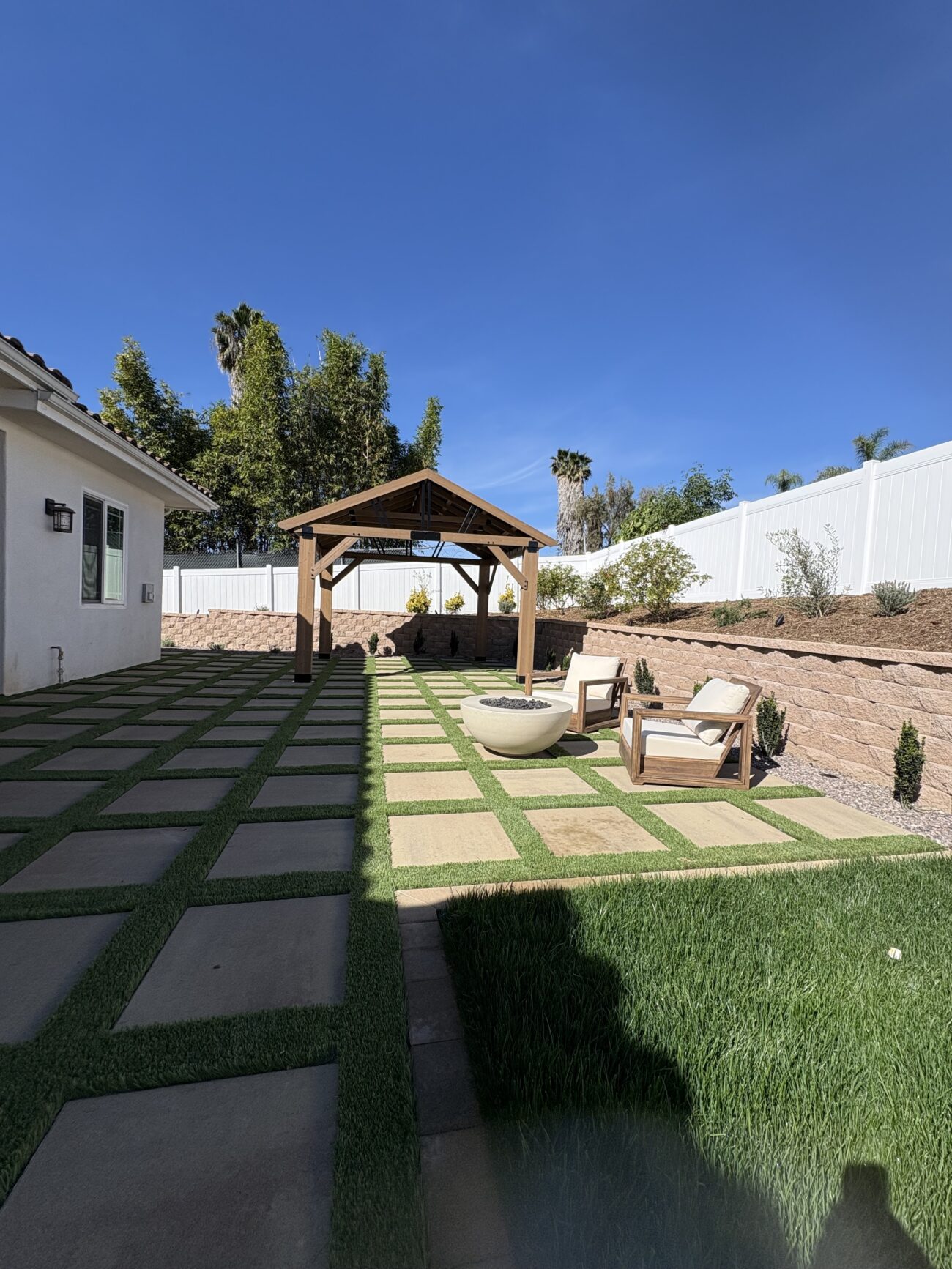

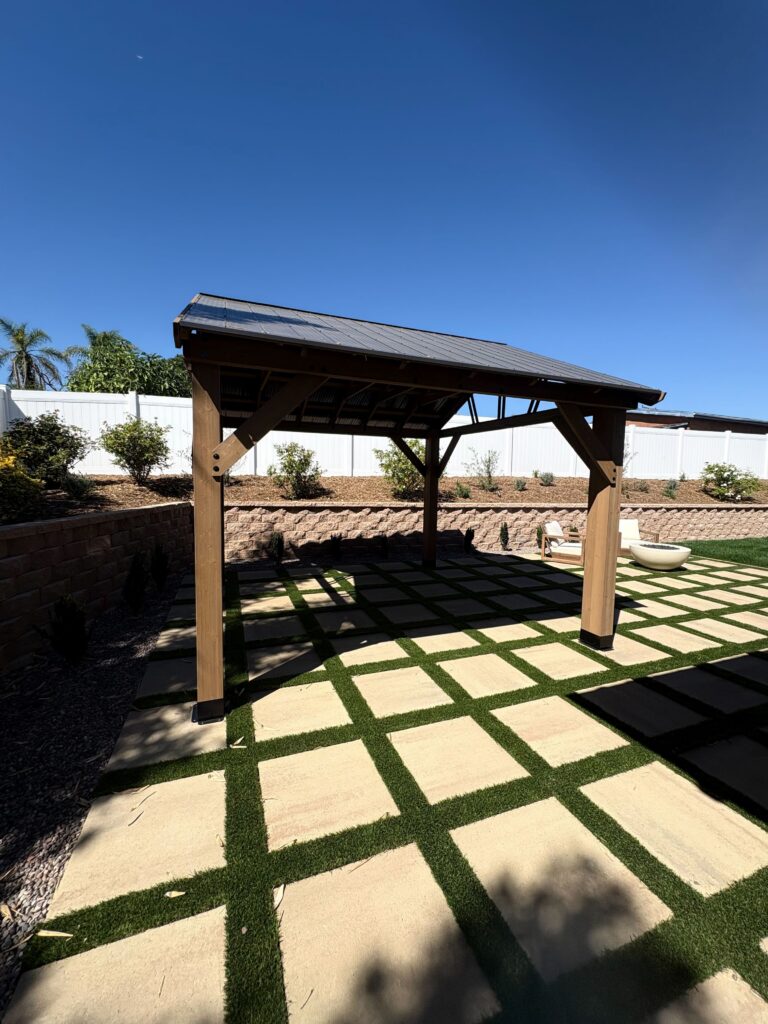

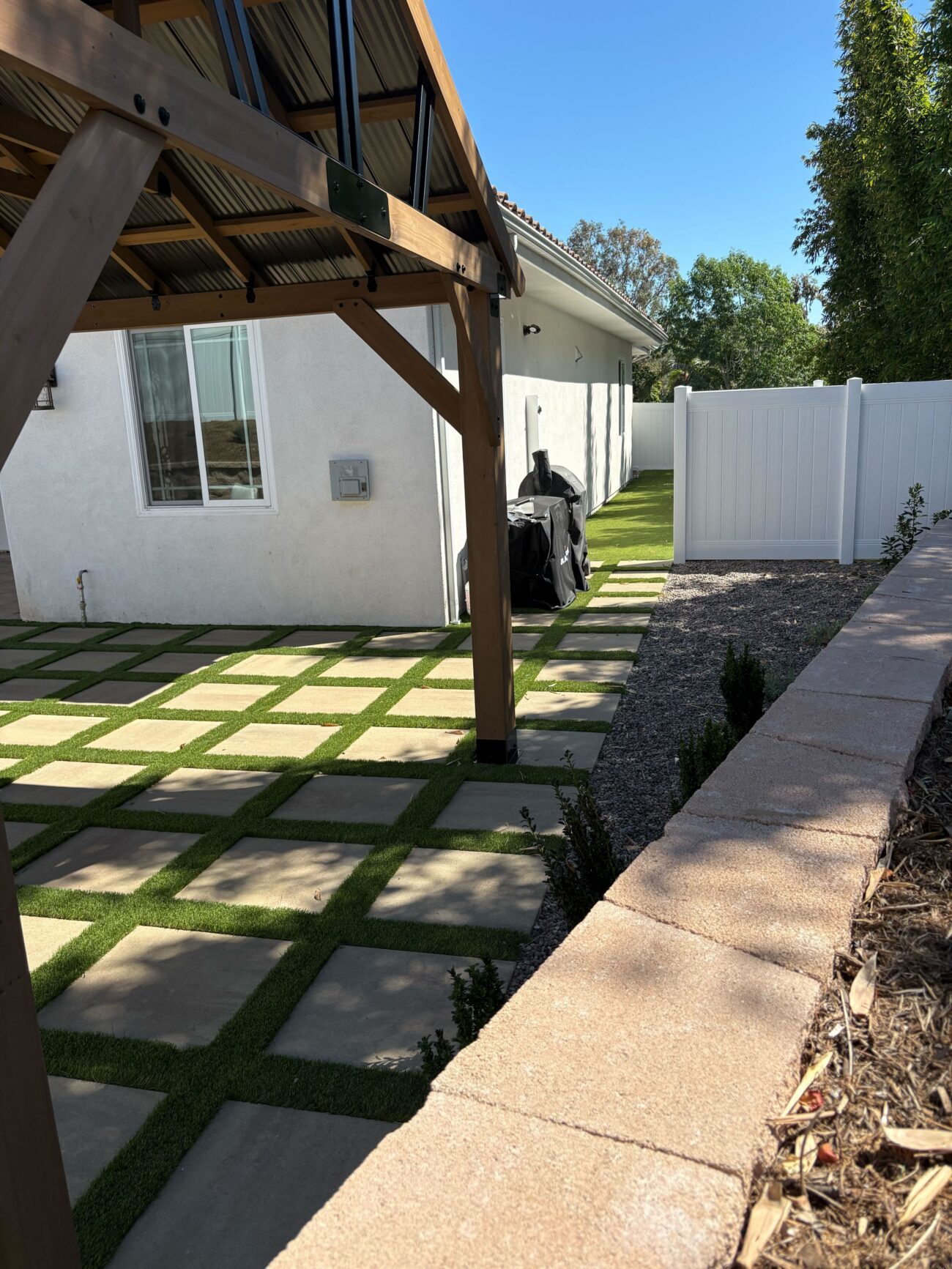

Cluster IMG-1795 best representative. Pergola-wide focal shot, complements the hero's three-quarter view with a head-on framing.

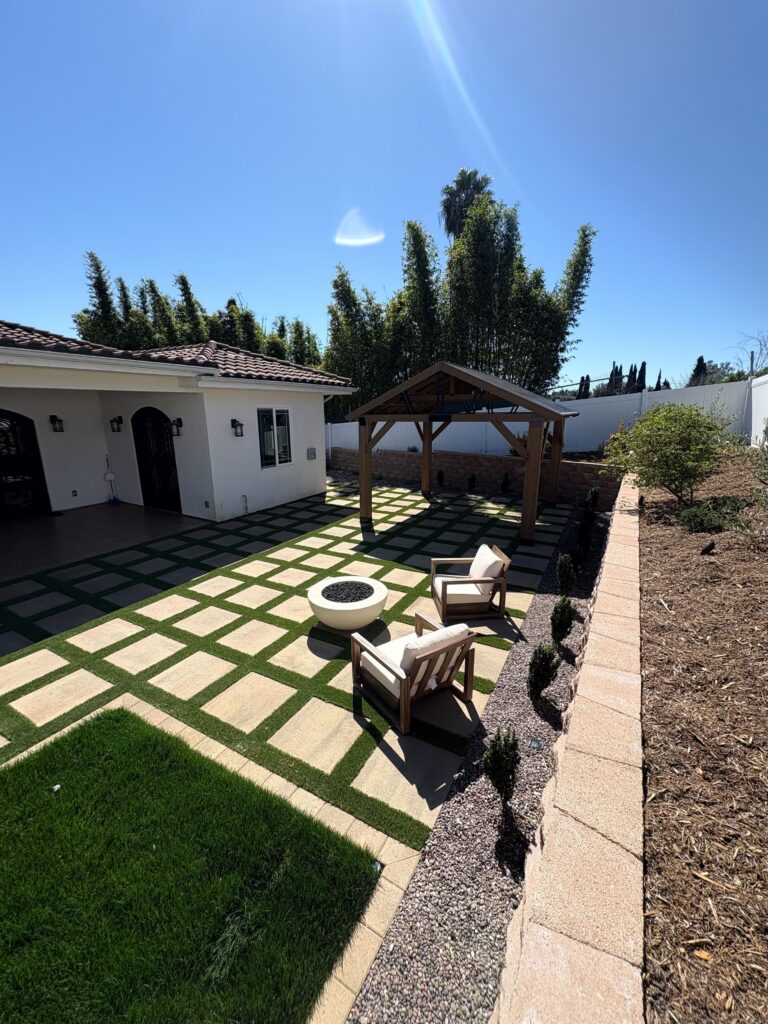

Cluster IMG-1796 best representative. Different angle of the fire-pit zone showing the raised planter bed.

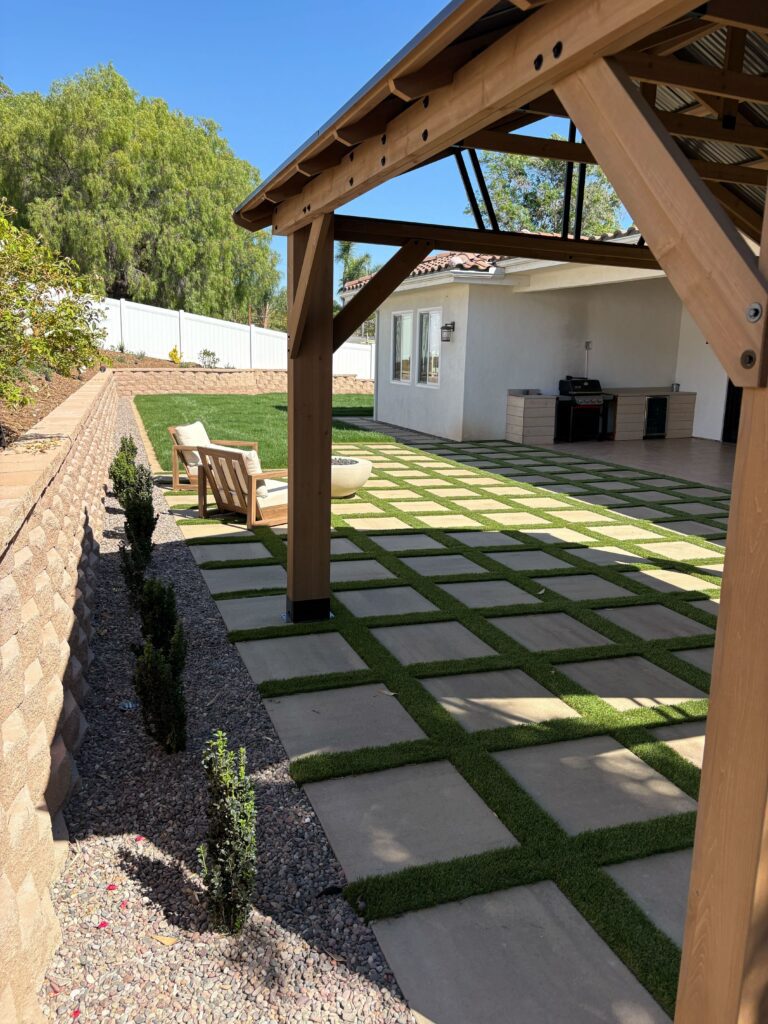

Cluster IMG-1797 best representative. Wide context shot showing how the pergola, covered patio, and fire pit zones connect.
Cluster IMG-1797 second representative. Side-yard zone (hits the 60 lf side-yard wall and the side-yard paver border line items).
Cluster IMG-1797 third representative. Different fire-pit angle supports the multi-photo fire-feature visual proof for § COPY-5.

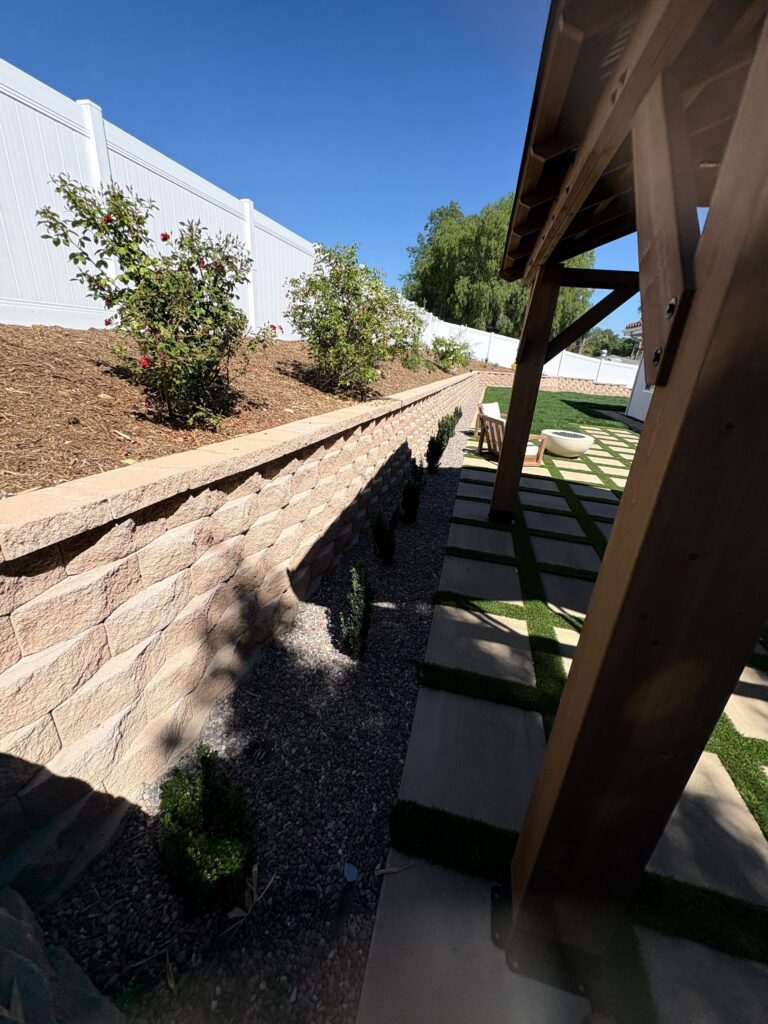

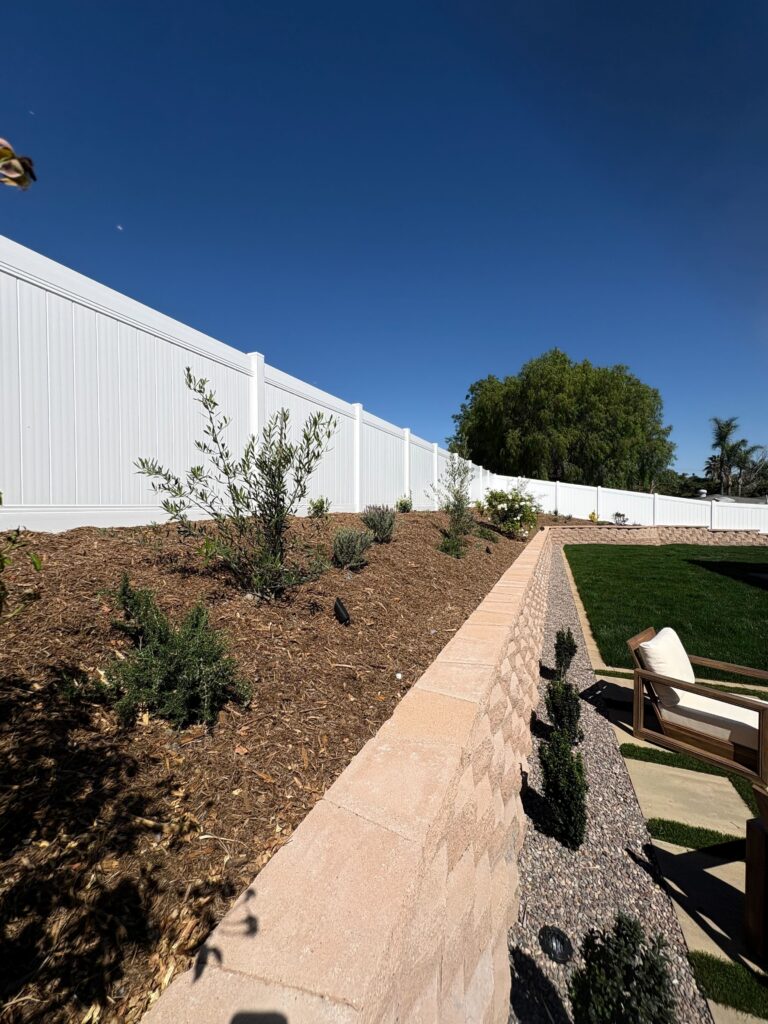

Cluster IMG-1795 second representative. Wall+cap detail with planted slope and landscape lighting visible (185 cap units + 30 LV fixtures scope).

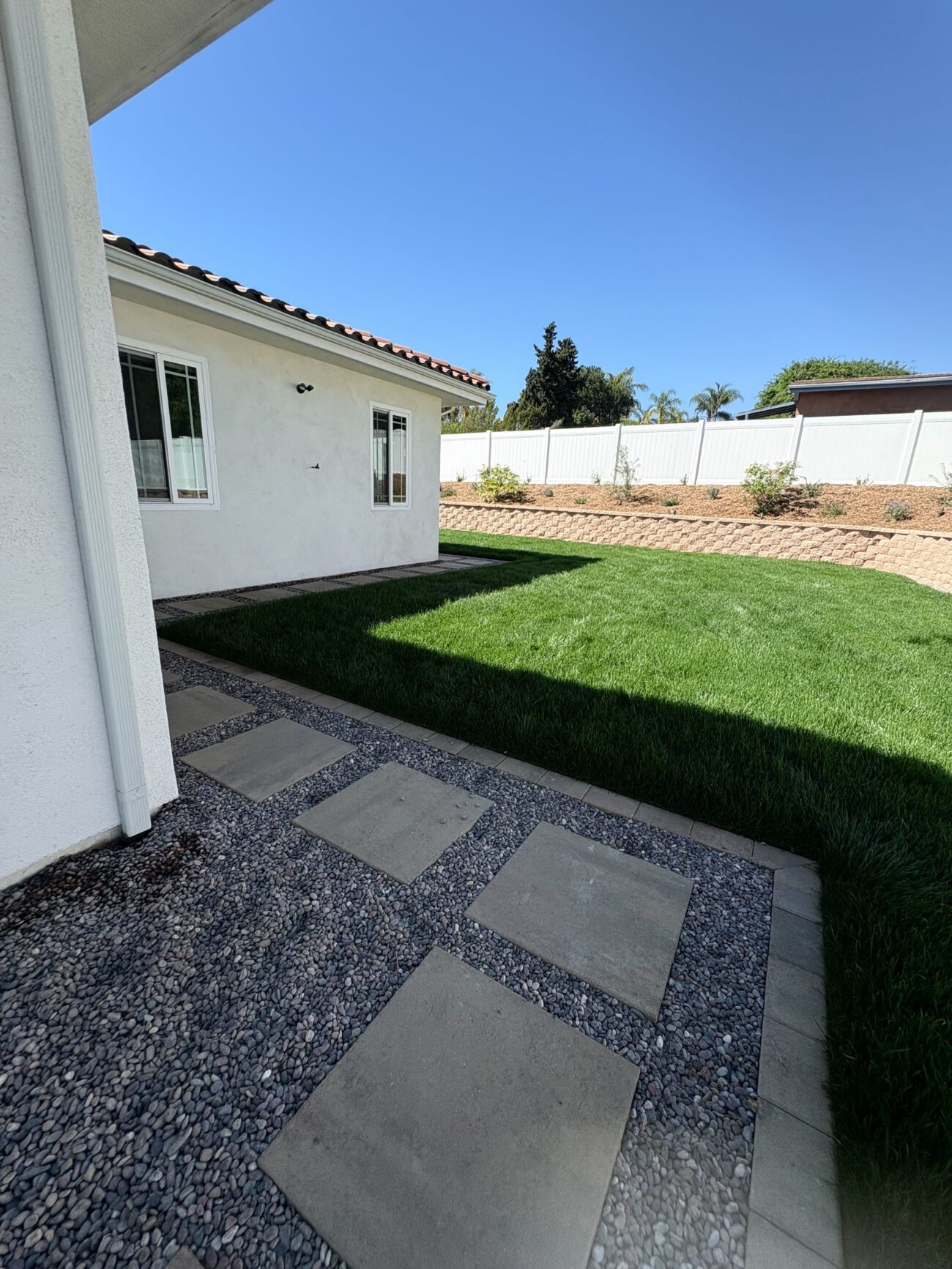

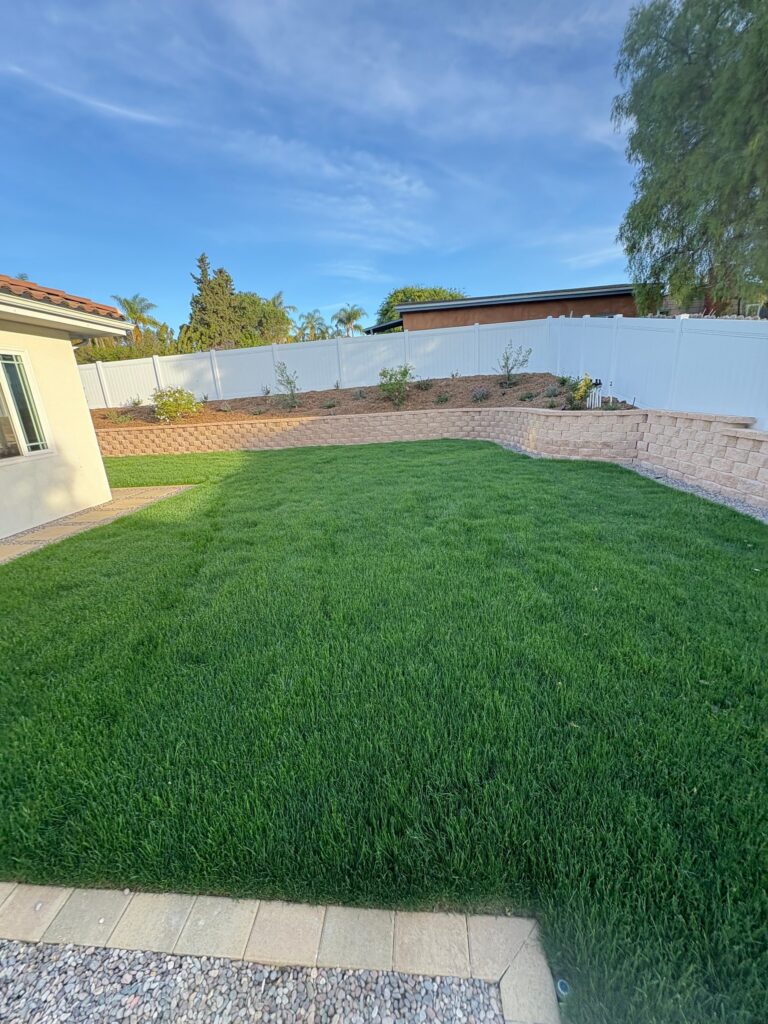

Cluster IMG-1796 second representative. Wider zone diversity — sod-lawn / stepping-stone walkway / wall transition (1,502 sf Bermuda sod scope).
Get a Free Estimate →
Investment
What would a similar project cost in Vista?
Toggle components on/off to estimate your project
Pavers & Hardscape (715 sf pavers, 230 lf mow strip, 175 stepping stones)
$26,500 – $32,000
Walls & Retaining (185 Stonewall II caps, side-yard and rebuild segments)
$9,500 – $11,500
Artificial Turf & Landscaping (1,130 sf turf, 600 sf river rock, 1,300 sf mulch, 48 plants)
$24,000 – $29,500
Lawn & Sod (1,502 sf Bermuda sod with amended soil and irrigation)
$14,500 – $18,000
Drainage (200 lf French drain + 200 lf SDR-35 + 20 fittings)
$7,500 – $9,000
Lighting (20 in-ground + 10 up-lights, 300W transformer, 250 lf wire)
$4,500 – $5,000
Pergola & Gas Line for Fire Feature (prefab pergola, 4 footings, 30 lf gas)
$5,000 – $6,000
Site Logistics & Demo (haul-off, 80 lf wall demo, site setup)
$5,000 – $6,000
Estimated Total
Frequently Asked Questions
A backyard build at this scope in Vista typically runs in the high-five to low-six figures. This Vista (92081) project, which combined 715 sf of Angelus Courtyard Combo pavers, 1,130 sf of artificial turf, 1,502 sf of Bermuda sod, a 185-unit Stonewall II retaining wall, 400 lf of drainage, and a prefab pergola, fell in the $95,000 to $110,000 range. Paver square footage, wall length, and drainage scope are the biggest cost drivers.
Most paver-and-turf backyard builds in San Diego County run 4 to 8 weeks of on-site work depending on access, soil conditions, and how much drainage and wall work is in scope. This Vista project spent about 39 working days on site across demo, drainage, walls, pavers, turf and sod, pergola assembly, and lighting.
The artificial turf field needs occasional brushing and rinsing, plus a leaf blower pass after the wind blows debris in. The Bermuda sod side needs irrigation, mowing, and seasonal feeding. Keeping the two surfaces clean comes down to a hard edge between them; in this Vista build, paver mow strip and a gravel drain strip do that work along the wall toe.
It depends on the height of the wall, whether gas or electrical work is included, and whether your property is in an HOA. The City of Vista's building department sets the permit thresholds, and many neighborhoods in 92081 also have HOA design rules. We did not document the permit and HOA path on this specific project for public reference. Verify current requirements with a licensed contractor or attorney and your local jurisdiction.
We combine perforated and solid drain pipe to move surface water off the patio and away from the house, and we set a gravel strip at the toe of the retaining wall to catch runoff before it reaches the patio. On this Vista project that meant 200 lf of perforated French drain, 200 lf of solid SDR-35, 20 drain caps and downspout connections, and surfaces sloped to drain per CRC R401.3. Verify current requirements with a licensed contractor or attorney.
Yes, when the layout and the gas-line route are planned together. On this Vista build, the prefab pergola was anchored to four 12-by-12 concrete footings with strap anchors, and a 30 lf 1-inch gas line ran in an 18-inch trench with tracer tape, with two connections and two sweeps for the fire feature.
