Cracked Concrete Out, Pavers In - Mission San Luis Rey
Project Gallery

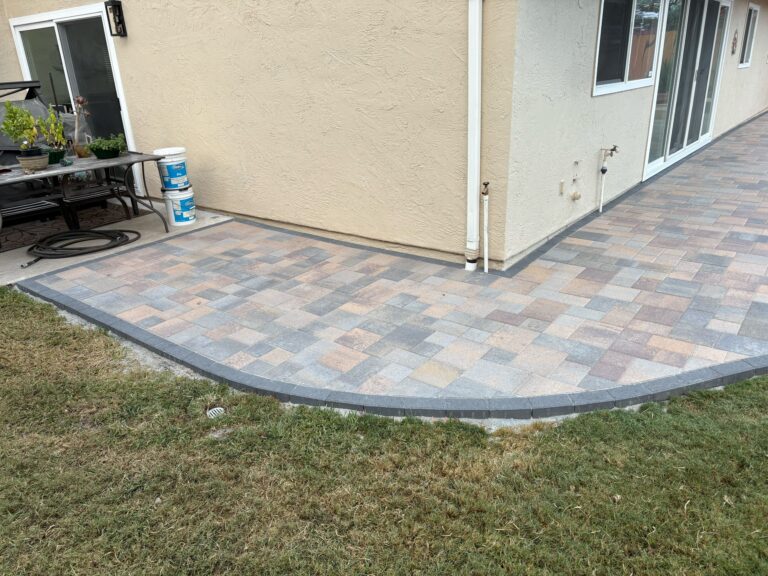

Finished residential paver patio with interlocking pavers laid in a multi-color pattern and a darker soldier-course border forming a curved edge against existing lawn. The installation abuts the home's exterior wall and sliding glass doors, with clean joints and finished edge restraint visible.

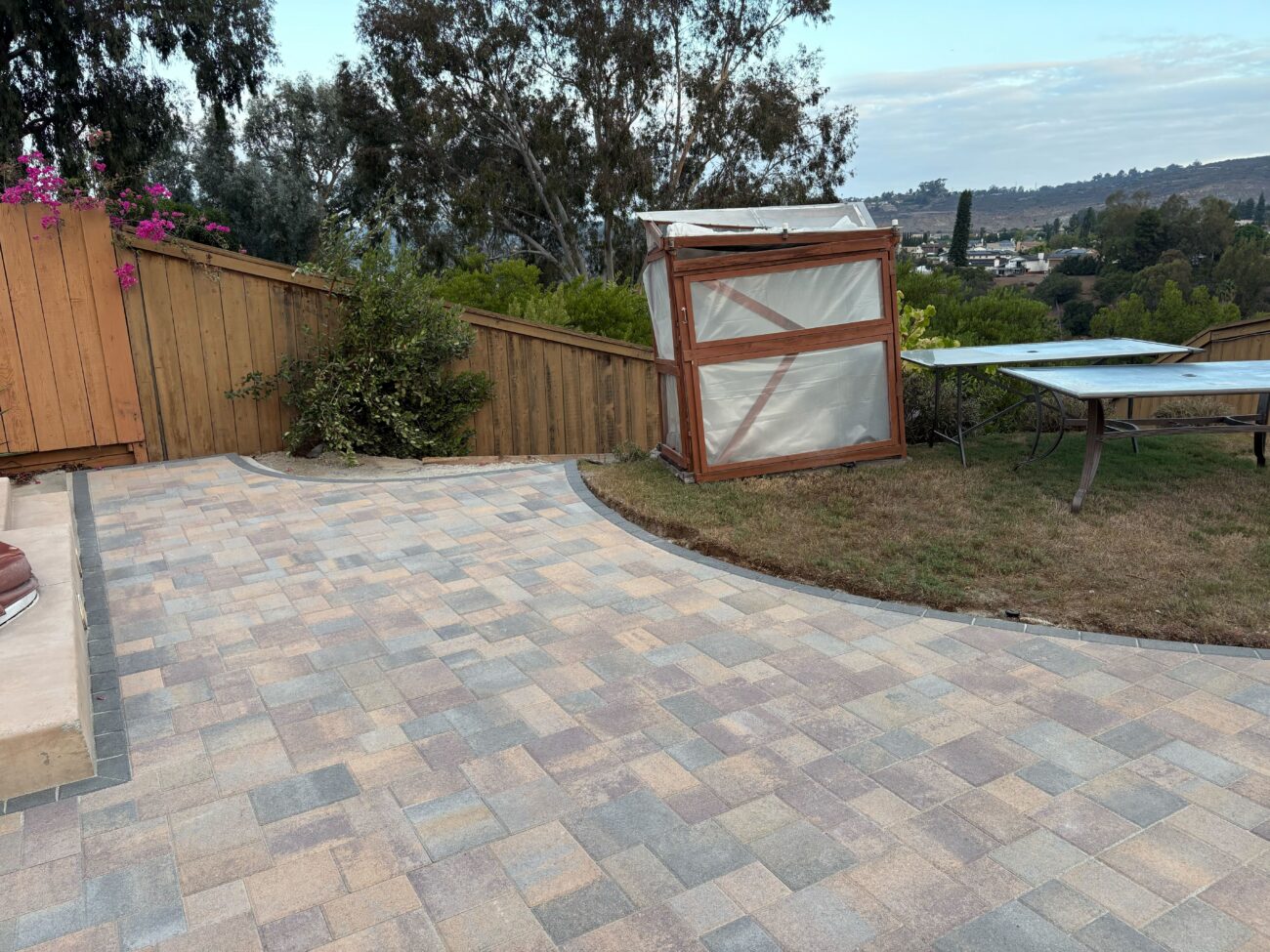

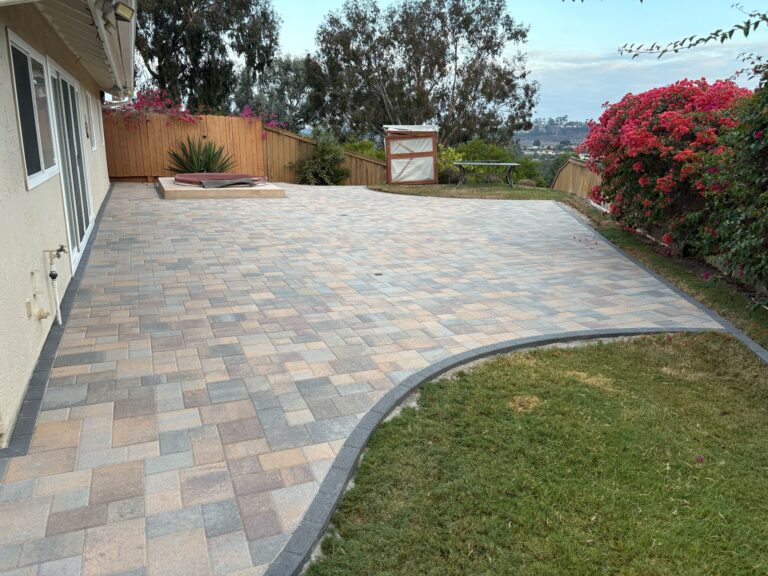

Completed interlocking paver patio adjacent to a residential exterior with a curved edge meeting existing natural grass. Soldier-course border and edge restraint are visible around the perimeter; joints appear clean and no construction equipment or materials remain on site.

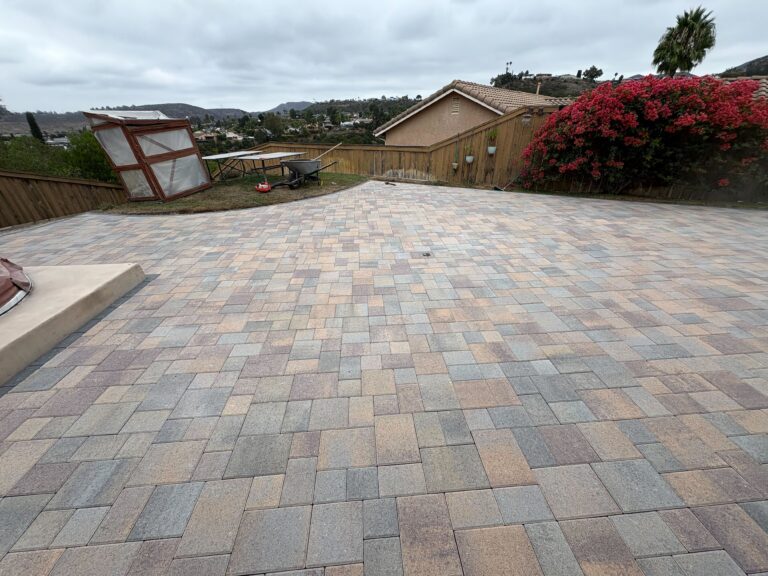

Finished interlocking paver patio in a residential backyard showing multi-color concrete pavers installed in an ashlar-like rectangular pattern. Surrounding lawn strip, planting bed and wood fence are visible; surface appears clean and swept indicating a completed installation.

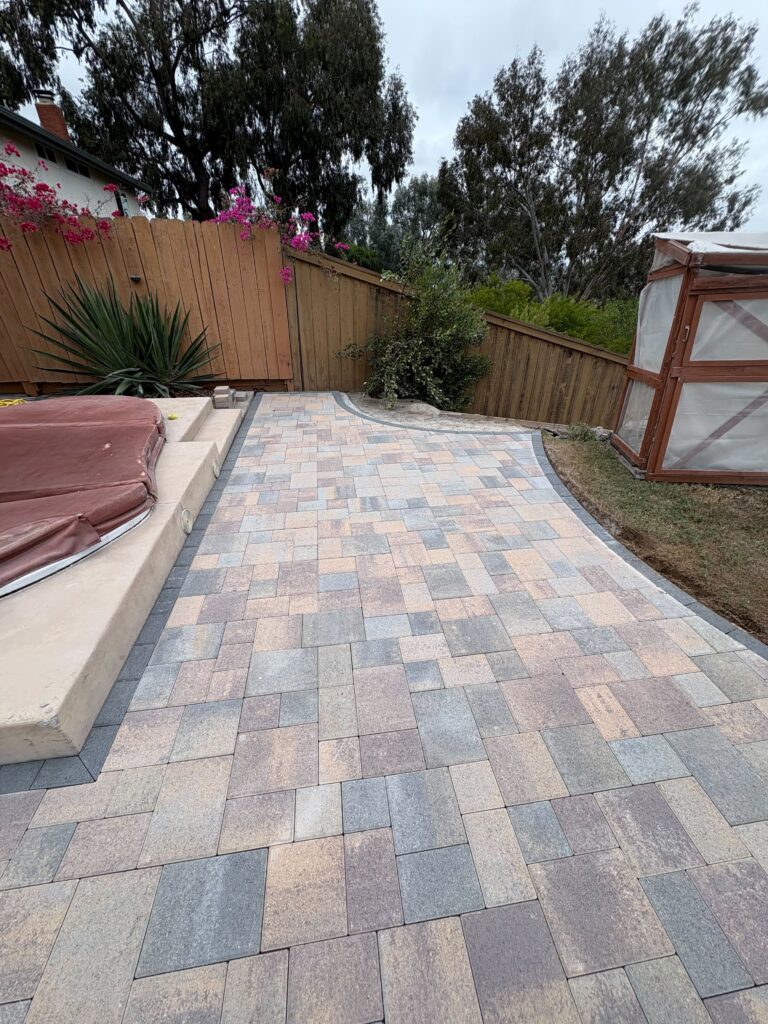

Finished interlocking concrete paver patio and walkway with a darker contrasting border and integrated concrete step/seat along the left. The installation shows compacted, clean joints and edge restraint, adjacent to a wooden fence, plantings and a small greenhouse in a residential backyard.

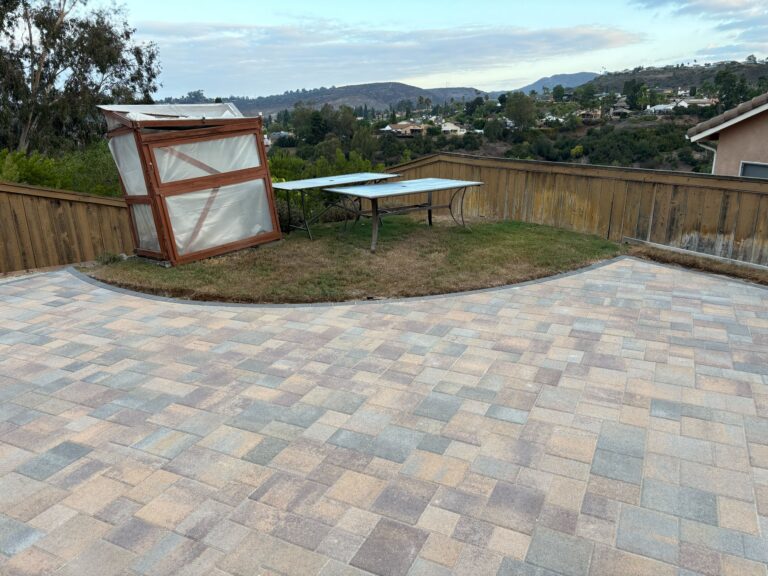

Large interlocking concrete paver patio in multi-tone finish covers most of a residential backyard. A small pocket of existing natural grass remains along a wooden fence with wrapped materials on a pallet and folding tables staged on the lawn, suggesting remaining punchlist items.
Project Snapshot
Project Story
Overview
In Mission San Luis Rey, a 1980s concrete slab — cracked at the planter junction, pooling water along the slider — became 1,148 square feet of Angelus pavers, a soldier-course border, a 70-foot drain line, and 94 feet of poured concrete mow strip. Seven working days from demo to final walk. Neighbors noticed immediately.
The cracked slab by the slider was driving us crazy and now it's the nicest part of the house.
The Challenge
- Diagonal cracks at the planter junction and surface staining across the slab — the 1,148 sf footprint replaced here — left the space worn and hard to maintain.
- The old concrete had settled and no drain existed, so water pooled along the patio edge during rain until 70 lf of new drain line was added.
- The adjacent lawn was patchy and drought-stressed, leaving the patio-to-yard transition unfinished before sod replacement.
What Changed
How INSTALL-IT-DIRECT Helped
Over 1,000 five-star reviews and 1,500+ San Diego homeowners served.
Design & Build
The Plan
Paver pattern: multi-tone Angelus interlocking concrete pavers laid in an ashlar-style rectangular pattern with a darker soldier-course perimeter border and curved edge detail
Mow strip: 94 lf poured concrete strip along the lawn boundary to hold the paver edge and give mowers a clean tracking line
Drainage: 70 lf channel drain line routed along the patio perimeter to help move water away from the slab edge
Demo scope: full removal of existing poured concrete patio slab and base material before re-grading for new paver base
Sod restoration: lawn areas disturbed during drain line installation were re-sodded prior to final walkthrough

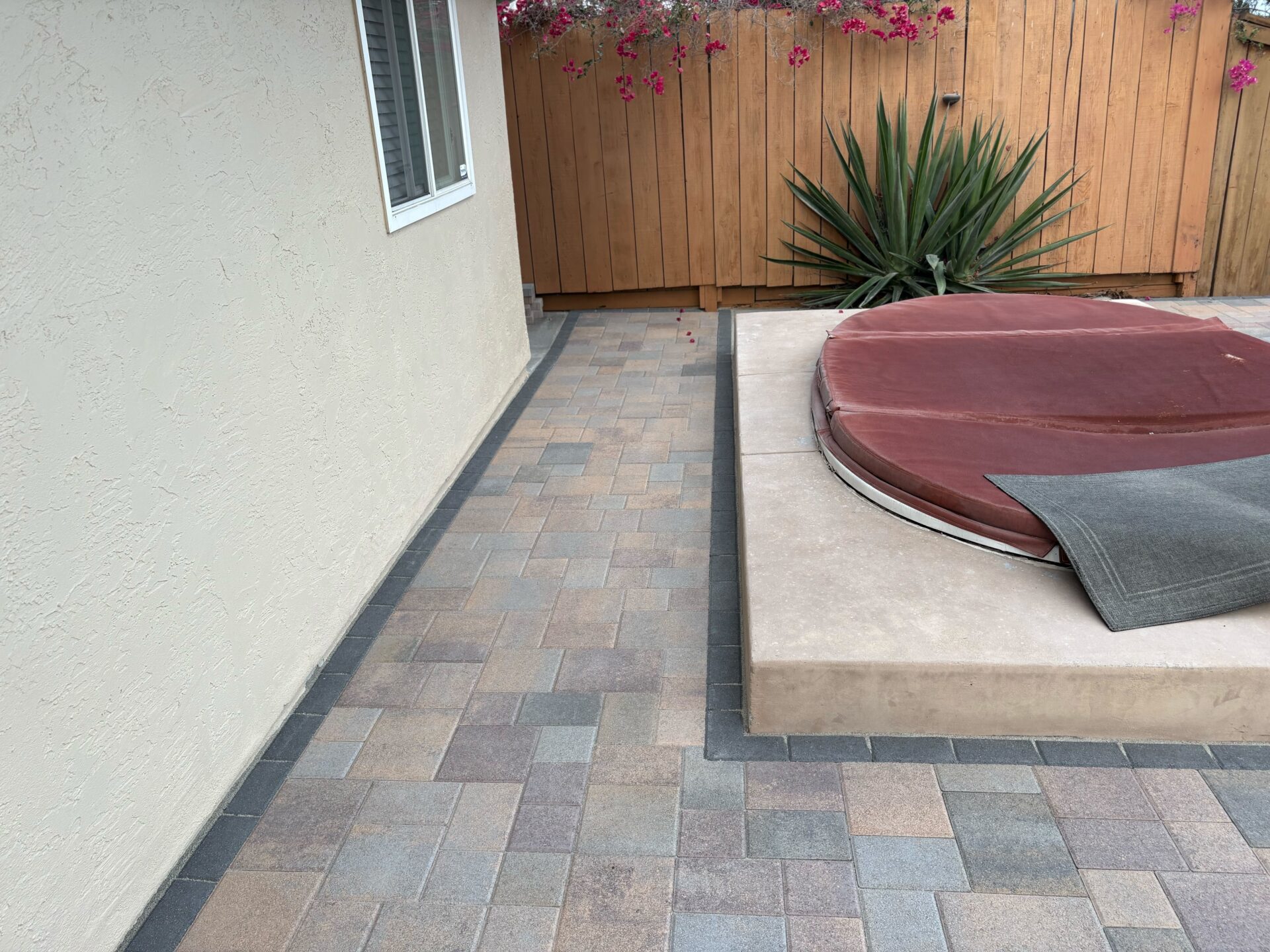

Transition details: paver edge curves around the existing raised brick planter and covered spa, preserving both features
The Build
Pre-Construction Walk and Delivery
The project began with a pre-construction walk, material delivery, and layout marks for the new paver footprint and drain line path.
Demolition

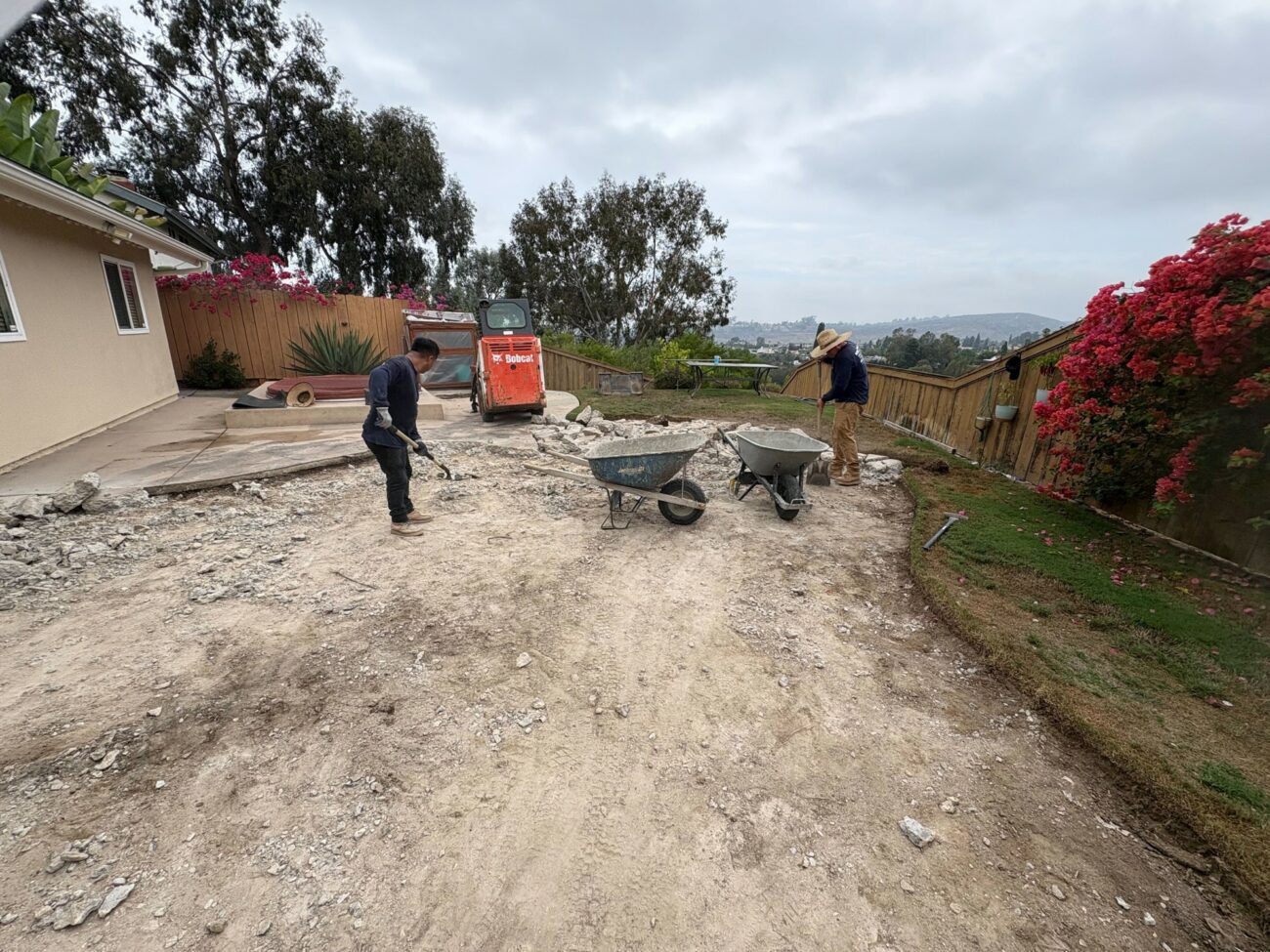

The crew broke up the existing concrete patio slab, removed debris, and cleared the full patio area and drain-line corridor for the new work.
Base Preparation and Drain Installation

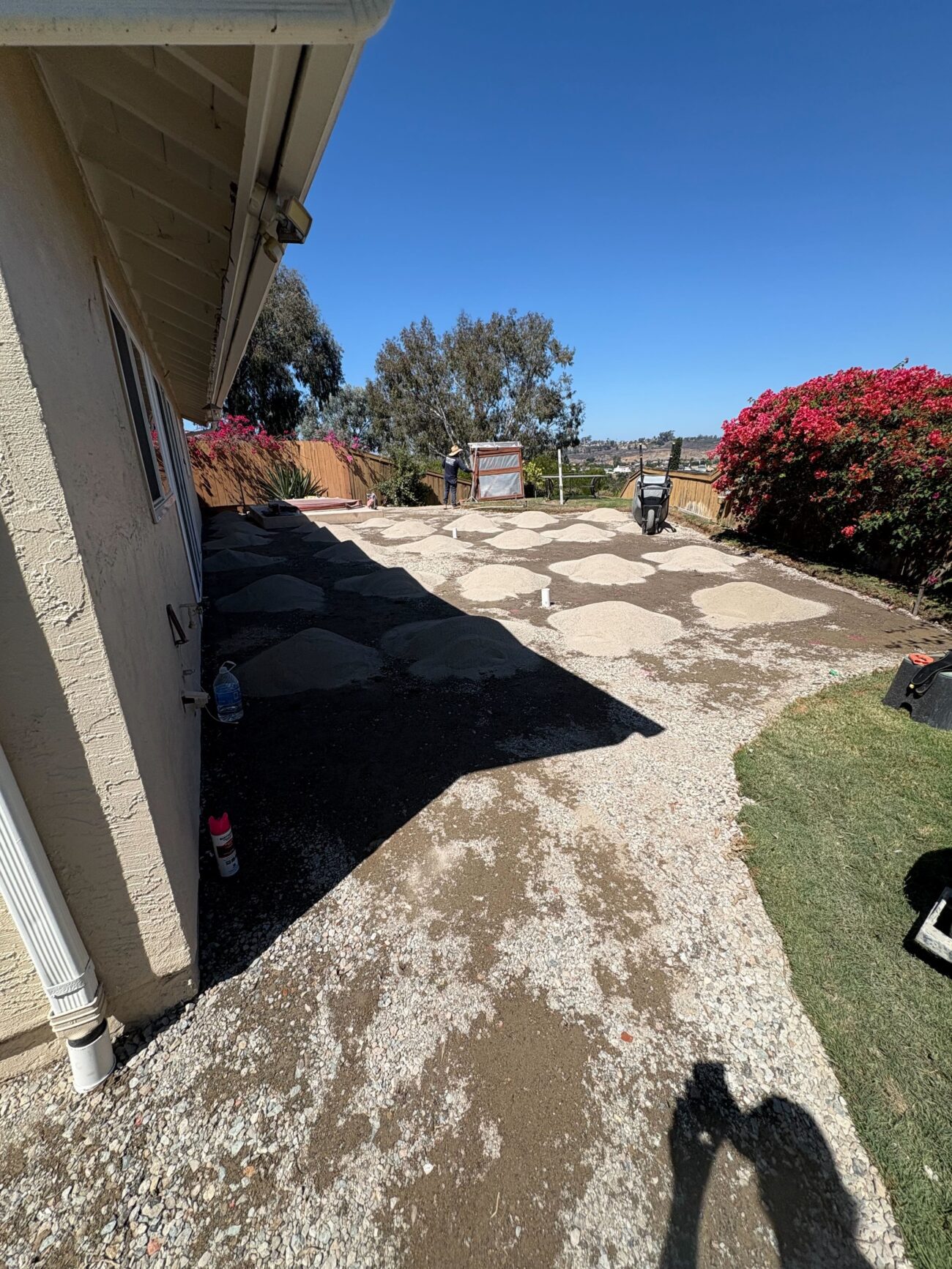

With the slab out, the crew re-graded the subbase, installed the 70-lf drain line, backfilled the trench, compacted the base, and prepared bedding sand for paver installation.

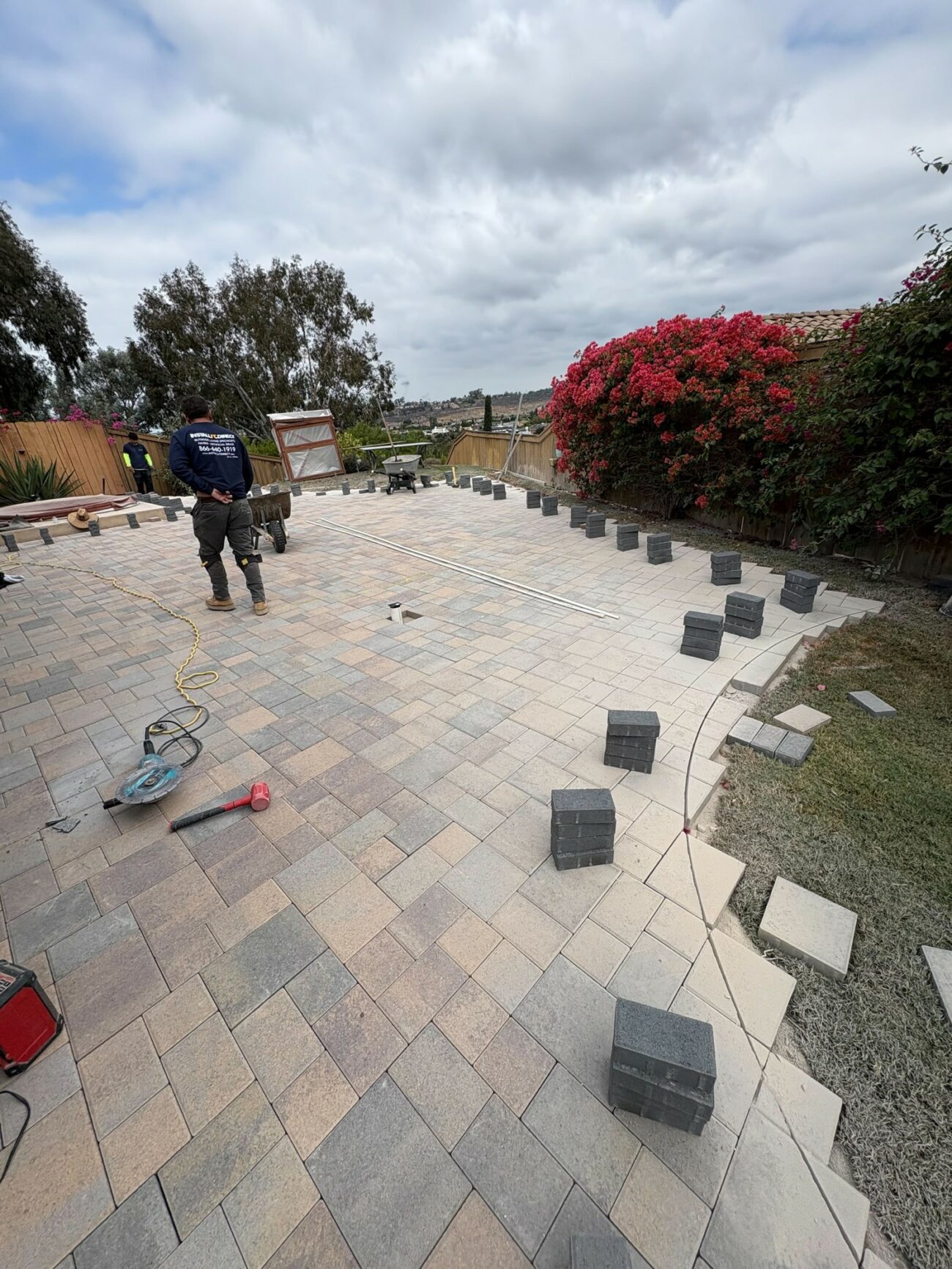

Paver Installation
Field pavers went down in the ashlar-style rectangular pattern starting from the house side. The darker soldier-course border was set along the perimeter and curved edge, with cuts made to match the arc at the lawn boundary.
Mow Strip, Sod, and Final Checks
The 94-lf concrete mow strip was poured along the lawn edge once pavers were locked in. Sod disturbed during drain work was replaced, and the finished patio was checked before closeout.
Investment
What would a similar project cost in Oceanside?
Toggle components on/off to estimate your project
Frequently Asked Questions
How much does a paver patio cost in Oceanside, CA?
A paver patio in Oceanside typically falls between $18 and $30 per square foot installed, depending on demo, access, base prep, drainage, paver selection, and edge restraints. A project around 1,100-1,200 sf with added drainage and a concrete mow strip generally lands in the $22,500-$27,500 range.
Do I need a permit for a paver patio replacement in the City of Oceanside?
Permit requirements depend on the exact scope, site conditions, and current city rules. At-grade paver replacement, drainage changes, retaining walls, gas lines, electrical work, and work tied to public drainage can be reviewed differently. Confirm requirements with the City of Oceanside or a qualified contractor before starting work.
How is patio drainage handled when installing pavers in Oceanside?
Surface water is typically managed through base preparation, surface pitch, and, when needed, a drain along the patio perimeter. On this project, a 70-linear-foot drain line was added along the patio perimeter to carry water away from the slab edge, and the line was trenched during base prep so it sat below the finished paver surface.
How long does it take to install pavers over an existing concrete patio in Oceanside?
When the old concrete needs to be demolished first, plan for about one week of active construction for a patio around 1,100-1,200 square feet. Adding a perimeter drain line and a concrete mow strip can extend the sequence, but this project still fit into a compact active-build window once materials were on site.
What are Angelus pavers and why are they used in San Diego?
Angelus Paving Stones is a Southern California manufacturer that produces interlocking concrete pavers in a range of sizes, textures, and color blends. They are a common choice in San Diego County because they are made regionally, the color blends hold up well in the sun, and individual units can be replaced without disturbing the full surface.
What is a concrete mow strip and do I need one with a paver patio?
A mow strip is a narrow poured-concrete band set between the paver edge and the lawn. It gives mower wheels a hard surface to track on, so the blade does not scalp the grass at the paver border. It also helps protect the paver edge where the patio meets lawn.
Your Outdoor Project in 3 Simple Steps
Design
We listen to your vision, assess your space, and create a custom design that fits your lifestyle and budget.
Build
Our experienced crews bring the design to life with premium materials and expert craftsmanship.
Enjoy
Step into your transformed outdoor space and start making memories with family and friends.
Your Project Manager
Troy MacMillan
A San Diego native with more than 20 years in landscape construction, Troy brings seasoned craftsmanship to every build. A devoted husband and father of two, he carries the same care from the job site to his weekend farm.
