One Paver, Driveway to Back Patio: A Vista Hillside Hardscape
Overview
2,080 sf Belgard Moduline 12x24 pavers across driveway, walkways, entry steps, and rear patio; 532 sf Melville segmental retaining walls with caps and step risers; 110 ln ft of drainage; 60 low-voltage ledge lights. Vista hillside lot, $83,588 final investment, completed April 2021.
Quick Facts
City Vista
Neighborhood
Constraints/Challenges Hillside lot with grade transitions between driveway, house pad, and rear yard; surface water from upper hillside required defined drainage to handle the new paver field.
Goals Replace aging hardscape with a coordinated paver and wall system spanning driveway, walkways, entry steps, and back patio.
Scope 2,080 sf Belgard Moduline 12x24 pavers, 532 sf Melville segmental walls, 110 ln ft drainage, 60 ledge lights
Style Modern modular paver field with low segmental garden walls and warm low-voltage accent lighting
Timeline Built across late 2020 into early 2021, with final completion in April 2021. The schedule reflected normal hillside hardscape pacing: wall construction staged ahead of the paver field, drainage in the ground before base aggregate.
Price Range $80,000 to $90,000
The Challenge
- The existing driveway, walkways, and rear patio were aging and visually disconnected, with no shared material story tying the front of the house to the back yard.
- The lot sits on a Vista hillside with real grade changes between the driveway, the house pad, and the rear yard, so any new hardscape had to handle retained cuts and step transitions, not just sit flat on grade.
- Surface water from the upper hillside and the new paver field needed somewhere to go, so drainage had to be planned in from the start rather than added after the pavers were down.
How Install It Direct Helped
Neighborhood Context
Over 1,000 five-star reviews and 1,500+ San Diego homeowners served.
The Plan
Specify one paver across the entire site: Belgard Moduline 12×24 used on the driveway, walkways, entry steps, and rear patio so the whole property reads as a single hardscape.
Use Melville segmental retaining walls to hold the grade changes and tier the yard, with 210 wall caps and 55 ln ft of step risers to handle elevation transitions cleanly.
Lay out the field so the joints and soldier courses follow the geometry of the house and the driveway approach instead of fighting it.
Plan 110 ln ft of subsurface drainage with the layout, so every paver area has a defined path for water to leave the pad consistent with CRC R401.3 lot drainage intent.
Integrate 60 low-voltage ledge lights into the wall caps and step risers during construction so the lighting is part of the structure, not a retrofit.
The Build

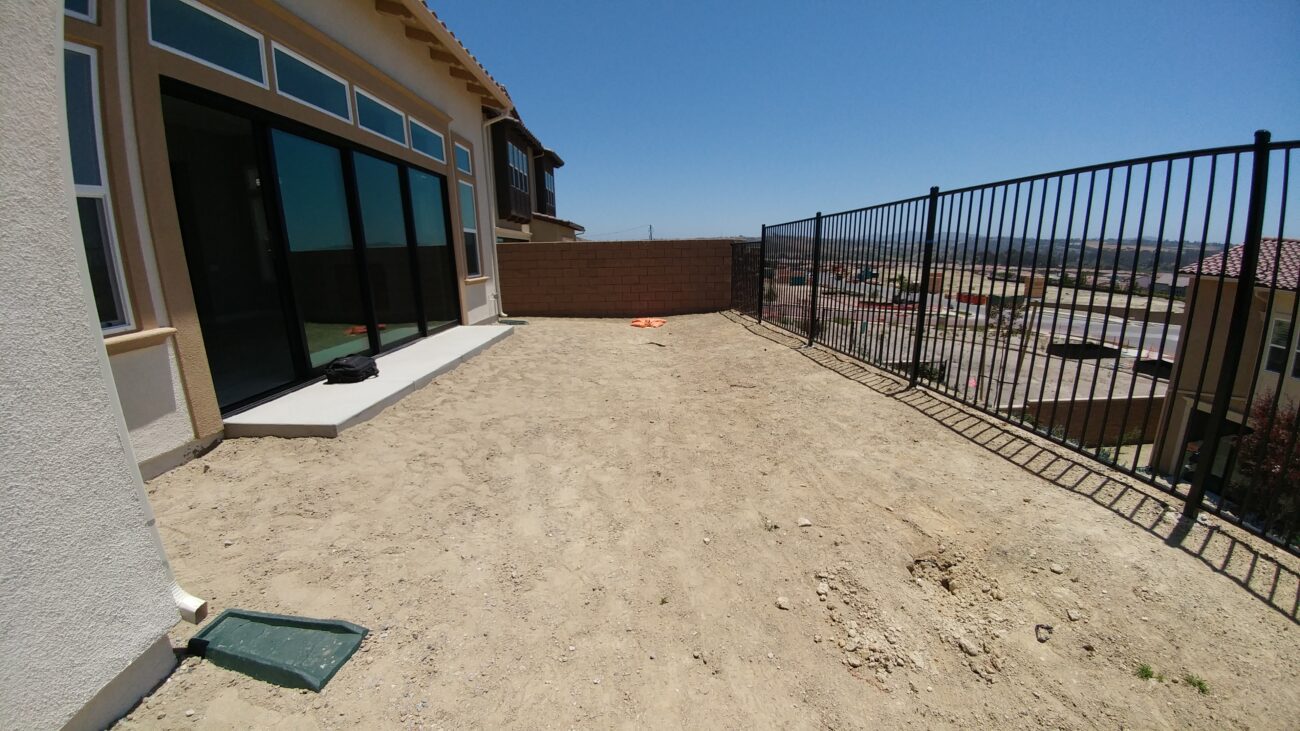

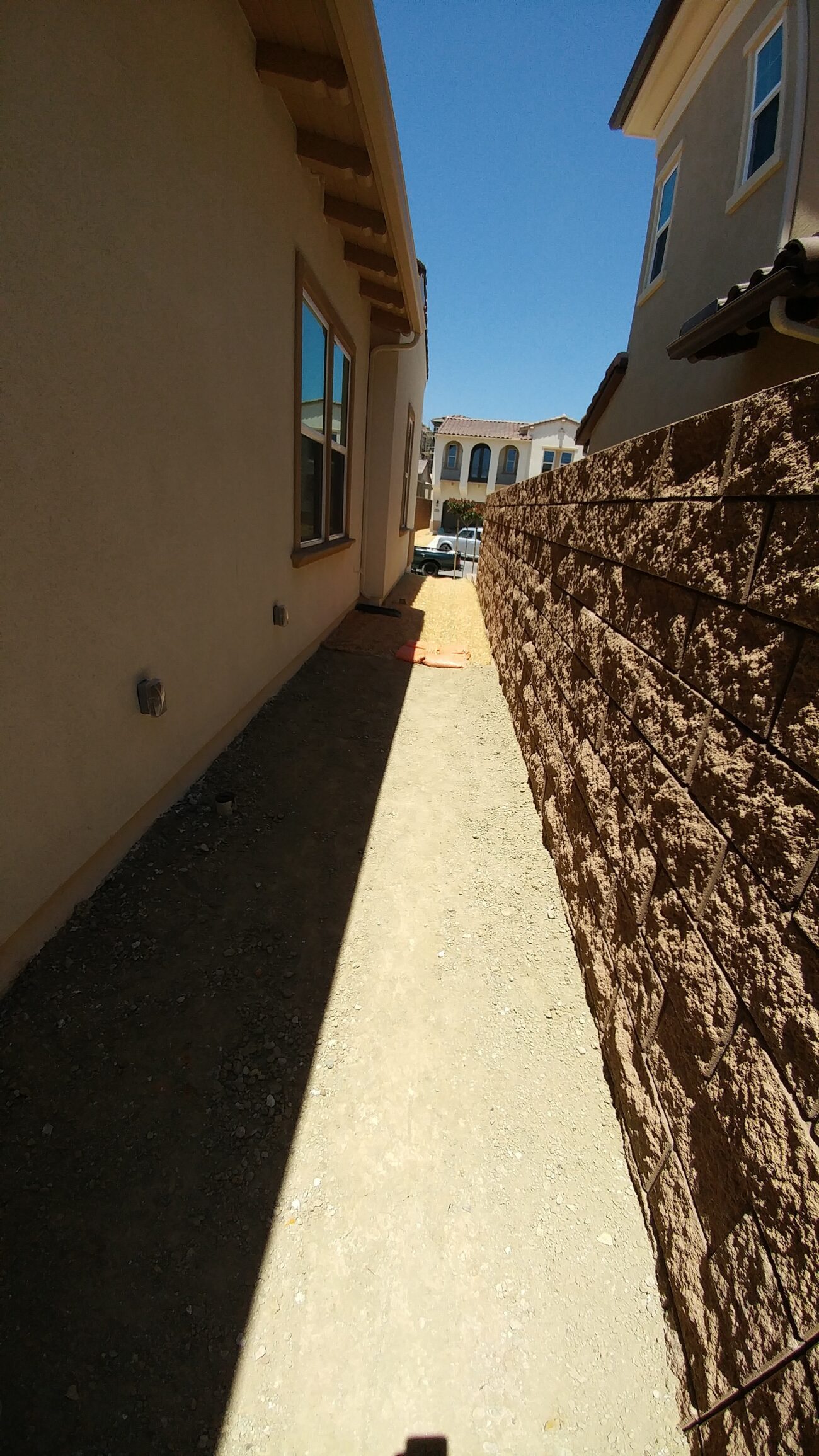

Existing aged hardscape demolished and hauled out to clear the work area across driveway, walkways, and rear patio.
Subgrade cut to design elevations across the multi-grade hillside lot, with cuts staged ahead of wall construction.
Compacted base aggregate placed and screeded to consistent depth, with falls coordinated toward planned drain inlets and away from the house.
532 sf of Melville segmental wall built in tiers, with 210 wall caps and 55 ln ft of step risers handling the grade transitions.
2,080 sf of Belgard Moduline 12x24 installed across driveway, walkways, entry steps, and rear patio in a single coordinated field.
Edge restraints, joint sand, low-voltage ledge light terminations, and final cleanup to leave the site finished.

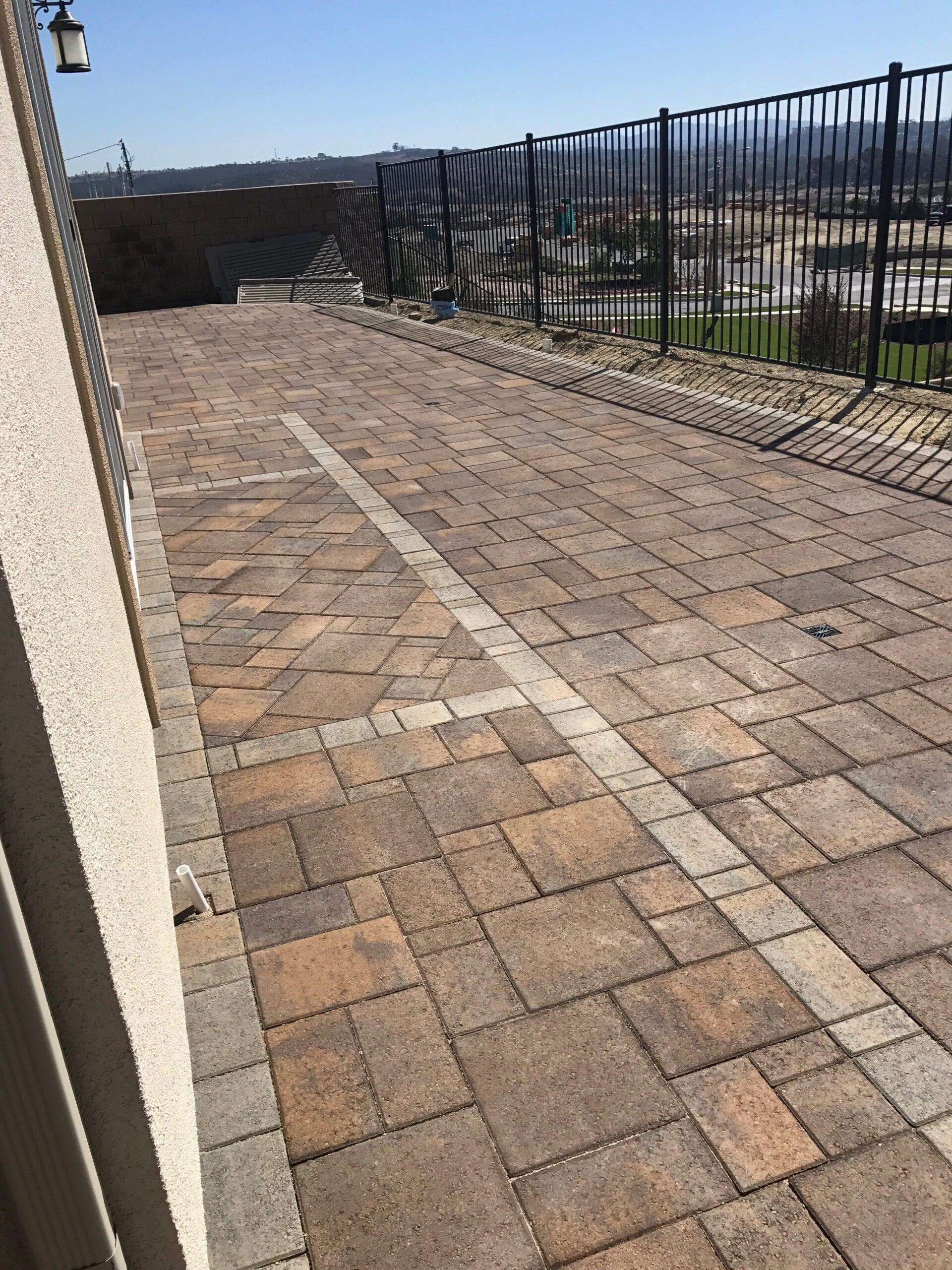

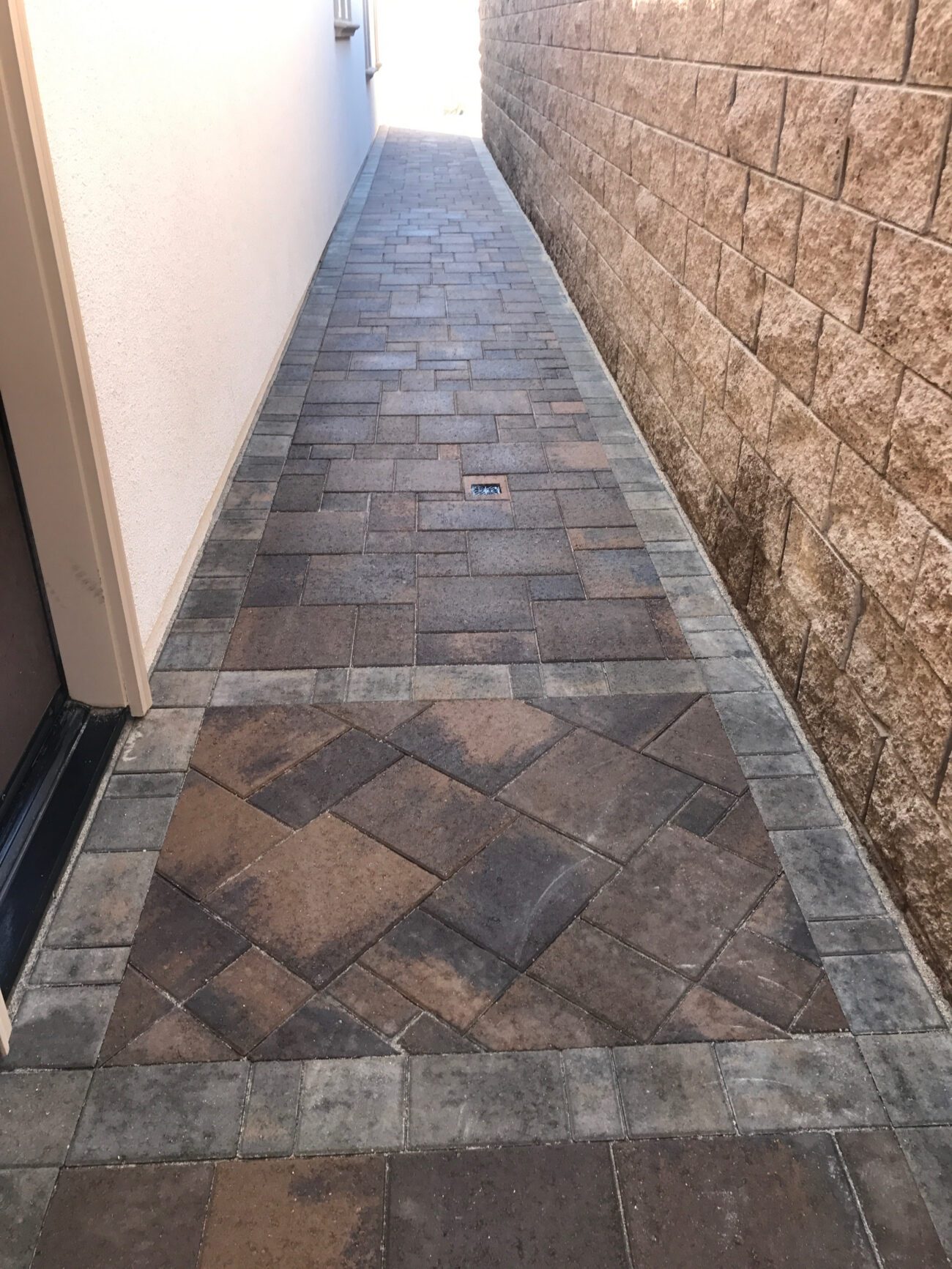

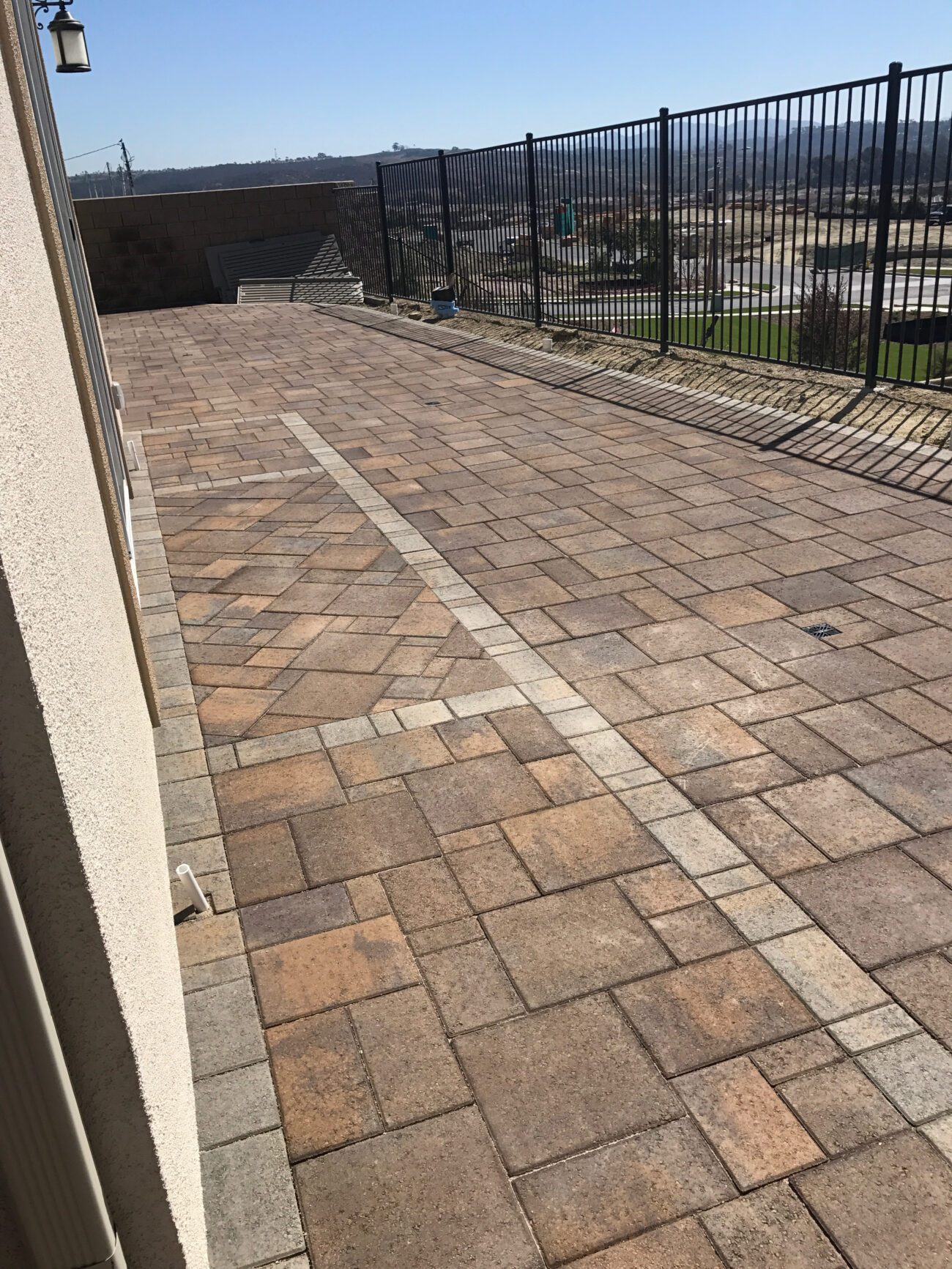

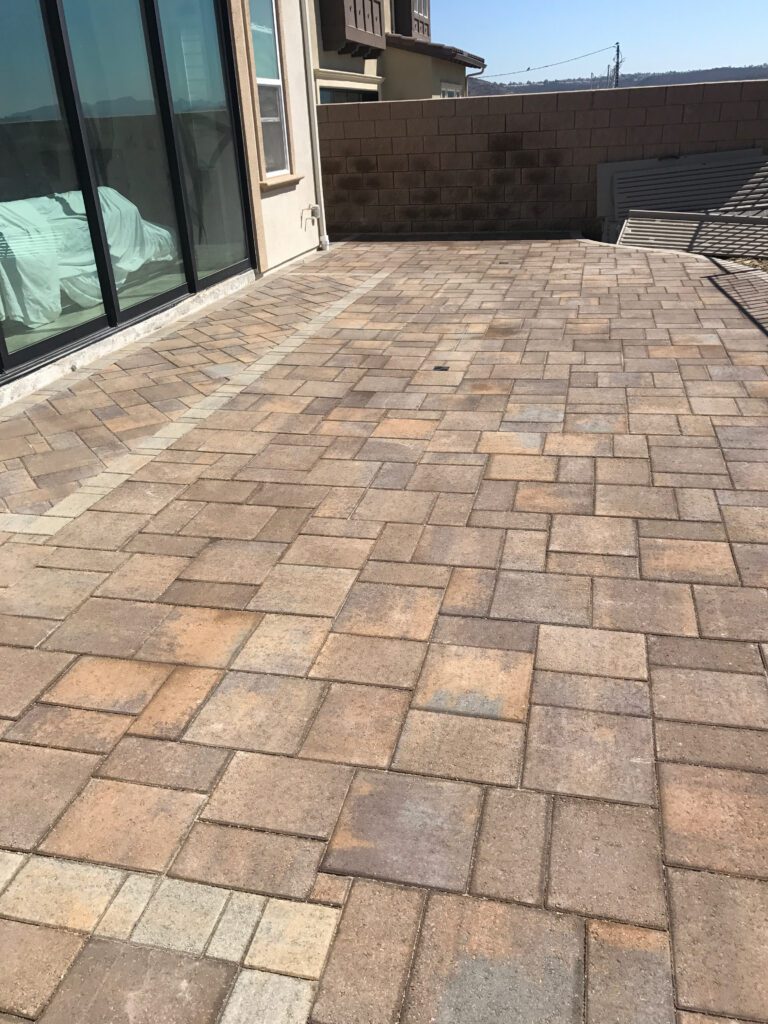

The Result
Outdoor living project photo, Vista
Outdoor living project photo, Vista
Outdoor living project photo, Vista
Outdoor living project photo, Vista
Outdoor living project photo, Vista
Outdoor living project photo, Vista
Outdoor living project photo, Vista
Investment
What would a similar project cost in Vista?
Toggle components on/off to estimate your project
Frequently Asked Questions
Yes, when the paver is rated for vehicular use and the base is built to driveway spec under the drive lanes. On the Cook project, Belgard Moduline 12x24 was used across the driveway, walkways, entry steps, and rear patio, which is what gives the whole property one coherent look.
Segmental walls let you handle grade changes in tiers, integrate caps and step risers, and add low-voltage ledge lighting without forming and pouring. On a Vista hillside lot with multiple short grade transitions, that modularity is usually faster and cleaner than a single tall poured wall.
This one came in at $83,588. The investment breakdown above shows roughly how the dollars split across pavers, walls and steps, drainage, lighting, and site logistics so you can sanity-check a bid for a similar Vista hillside scope.
Most hillside lots in Vista benefit from defined subsurface drainage once you put down a large paver field, because the field changes how surface water moves. On this project, 110 ln ft of drainage was installed so water from the upper hillside and the new paver area had a planned path off the pad.
Yes. The 60 ledge lights on this project were integrated into the wall caps and step risers during construction, which protects the wiring inside the wall assembly and avoids surface-mounted fixtures that get knocked or weathered.
A coordinated driveway, walkway, wall, and rear patio build at this size typically runs across multiple months once demolition, grading, drainage, walls, and the paver field are sequenced. The Cook project completed in April 2021.
Your Outdoor Project in 3 Simple Steps
Design
We listen to your vision, assess your space, and create a custom design that fits your lifestyle and budget.
Build
Our experienced crews bring the design to life with premium materials and expert craftsmanship.
Enjoy
Step into your transformed outdoor space and start making memories with family and friends.
Your Project Manager
Chris MacMillan
Vista hillside lot with coordinated Belgard paver hardscape across driveway, walkways, entry steps, and rear patio, plus Melville segmental retaining walls and integrated low-voltage lighting.
